MICRO SWITCH
Toggle Switch Line Guide
Full-Scale Offering. Clean Slate Engineering.
Plus equal
parts common sense and creativity. Each part in Honeywell’s
robust offering of toggle switches comes complete with the
amenities you’d expect from the industry leader: superior
assembly techniques for stronger performance, longer
productivity, full-line flexibility and increased safety.
Honeywell delivers optimal operator interface features and
value-added qualities for aerospace, air transport, armored
fighting vehicles and self-propelled transportation systems, as
well as manufacturing companies. For example, only Honeywell
drives in a center pendulum for ultimate stabilization. This
rubber-bonded steel pin is then sealed to withstand most of the
highest and lowest temperature challenges in the wettest and
most parched environs.
FEATURES
TOGGLE SWITCHES
MT Series.
Features:
Miniature behind-panel
size (case) enables overall control box
or panel use • IEC 60529-2001, IP67,
IP68 (except terminal parts) sealing for
harsh-duty applications • Up to 60,000
electrical life that enhances the use time
• Available with 8 circuitry options • 2- or
3- position maintained and momentary
action to meet circuit and actuator
requirements • UL recognized, CE
certified for global use
Benefits:
Spring-loaded mechanism
provides enhanced tactile feedback for
toggle switch lever • High sealing level
and electrical life cycle enable more
uptime in field installations which helps
in keeping machines working longer with
less downtime • Small size allows for
smaller control box/panel size to reduce
weight and operator fatigue. Applications
include Remote control box of concrete
pumping, cranes, material handling,
boom trucks, and any application with
small panel constraints.
NT Series.
Features:
Completely sealed switching
chamber • IP67/IP68 • NEMA 3, 3R,
4, and 13 • Step-design case provides
added space between terminals to
prevent shorting • 2- and 3-position,
maintained and momentary toggle
action • Spring-loaded mechanism
provides excellent tactile feedback
• Features an “easy-start” threaded
bushing and thermplastic case • High
impact strength, non-tracking case
enhances electrical stability
Benefits:
Meets a variety of electrical
load requirements. Switching chamber
is completely sealed in a Thermoset
case. Option for integral o-ring that
eliminates need for separate panel-
seal accessory. Used in a wide variety
of industrial and commercial settings.
Potential applications include aerial
lifts, scissor lifts, truck mounted
tele-handlers/cranes, construction
equipment, agriculture equipment,
material-handling equipment, factory-
floor control units, and machine tool
equipment manufacturers.
TL Series.
Features:
Environment-proof sealing •
Qualified to MIL-DTL-3950 • 1-,2-, and
4-pole circuitry • Standard and pull-to-
unlock levers • Silver alloy or gold-plated
contacts • 2- and 3-position, maintained
and momentary toggle action •
Temperature range: -65 °C to 71 °C
[-85 °F to 160 °F] • Completely sealed
switching chamber • Step-design case
provides added space between terminals
to help prevent shorting • Available
with IWTS (Integrated Wire Termination
System), a wired, plug-in connection
method
Benefits:
Meets a variety of electrical
load requirements. Switching chamber
is completely sealed in a Thermoset
case. Used in military or commercial
aviation application where a sealed
toggle switch is required. Potential
applications include industrial
machinery and equipment, military
and commercial aviation, construction
equipment, test instruments, agricultural
machinery, process control, and medical
instrumentation.
continued on page 3
MICRO SWITCH Toggle Switch Line Guide
The most powerful part:
Possibilities.
Honeywell offers one-stop
convenience for every toggle
switch need:
MT Series:
Miniature toggle
design with a spring-loaded
mechanism that provides
enhanced tactile feedback for
toggle switch user.
NT Series:
Cost-effective,
industrial-grade design meets
NEMA and IP requirements.
Features an “easy-start”
threading bushing, plus
optional panel stand off
with O-ring seal, eliminating
additional behind-the-panel
hardware and seal.
TL Series:
Military-grade
design, environmentally
sealed and qualified to
MIL-DTL-3950. Featuring a
large selection of circuitries,
lever designs and electrical
terminations, with silver or
gold contacts.
TS Series:
Used for manual
operation, with special on-
on-on circuitry available. TS
series switches have 2- or
3-position, momentary and
maintained action switches
with 1- and 2-pole circuitry.
TW Series:
Miniature
military-grade design and
environmentally sealed
switches. A large selection
of circuitries, electrical
terminations, levers and
bushing designs, with silver or
gold contacts.

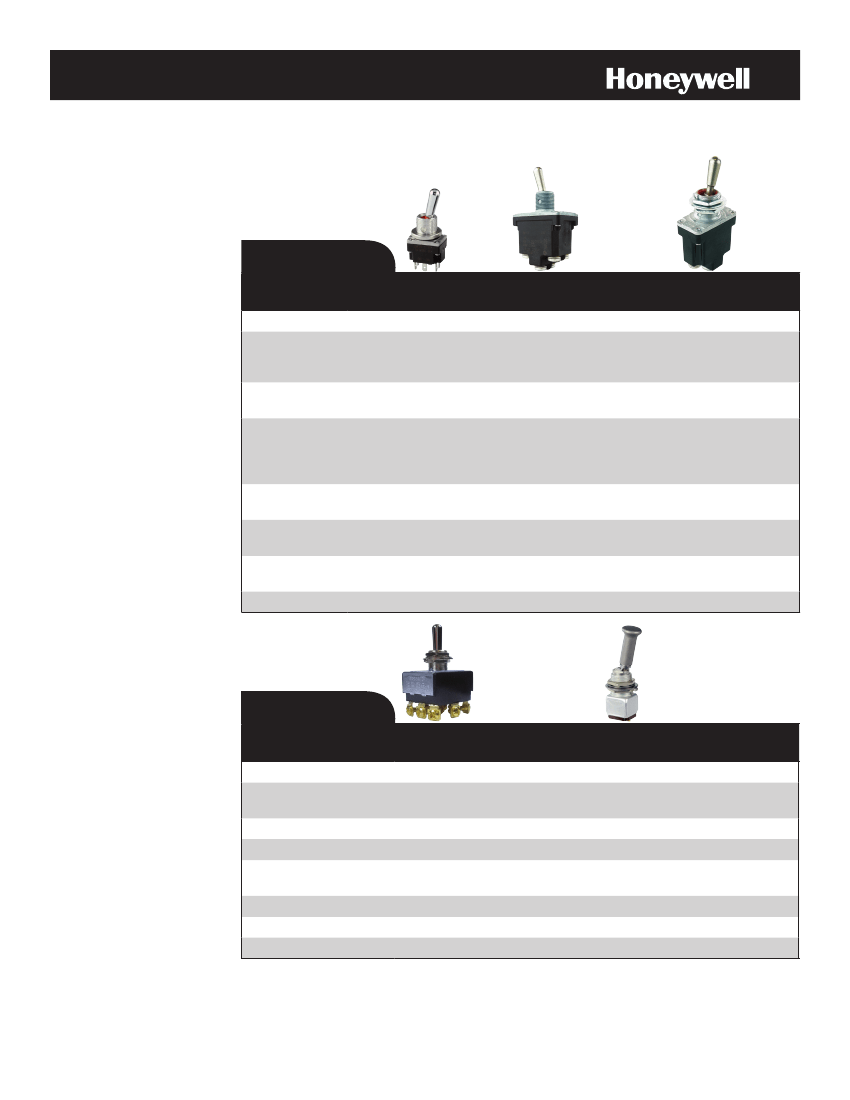

Toggle
Switches
MT Series
miniature toggle
2- or 3-position
momentary and maintained
action
standard
NT Series
industrial-grade toggle
2- or 3-position
momentary and maintained
action
standard, locking, special
design, tab
bushing 15/32 in with option
for integral o-ring (as shown)
that eliminates need for sepa-
rate panel-seal accessory
solder, screw, quick-connect
UL, CSA, CE
SPST, SPDT, DPST, DPDT,
4PST, 4PDT
silver alloy
TL Series
military-grade toggle
2- or 3-position
momentary and maintained
action
standard, special design, tab,
paddle, no lever
bushing 15/32 in
IWTS, solder, screw, quick-
connect, leadwire
UL, CSA, CE,
qualified to MIL-DTL-3950
SPST, SPDT, DPST, DPDT,
3PST, 3PDT, 4PST, 4PDT
silver alloy, gold-plated
Type
Action
Levers
Mounting
bushing 15/32 in
Termination
Approvals
Circuitry
Contacts
solder
UL, CE
SPST, SPDT, DPST, DPDT
silver alloy, gold-plated
Toggle
Switches
TS Series
commercial grade toggle
2- or 3-position
momentary and maintained action
standard
bushing 15/32 in
solder, screw, quick-connect
UL, CSA
SPST, SPDT, DPST, DPDT
silver cadmium oxide
TW Series
miniature toggle
2- or 3-position
momentary and maintained action
standard, locking, special design, tab
bushing 15/32 in or 1/4 in
IWTS, solder, screw, quick-connect,
H58, T2
UL, qualified to MIL-DTL-83781
SPST, SPDT, DPST, DPDT
silver alloy, gold-plated
Type
Action
Levers
Mounting
Termination
Approvals
Circuitry
Contacts
2
sensing.honeywell.com
TS Series.
Features:
2- or 3-position, momentary
and maintained action • 1- and 2-pole
circuitry • Special on-on-on circuitry can
be furnished • Solder, screw, or quick-
connect terminals • Rated up to 20 A
• Lever-to-bushing seal
Benefits:
Generally used in low-
cost commercial applications. Not
recommended for use where sealing
is critical. Potential applications
include industrial machinery and
equipment, military and commercial
aviation, construction equipment, test
instruments, agricultural machinery,
process control, and medical
instrumentation.
Warranty/Remedy
Honeywell warrants goods of its manu-
facture as being free of defective materi-
als and faulty workmanship during the
applicable warranty period. Honeywell’s
standard product warranty applies un-
less agreed to otherwise by Honeywell in
writing; please refer to your order ac-
knowledgment or consult your local sales
office for specific warranty details. If war-
ranted goods are returned to Honeywell
during the period of coverage, Honeywell
will repair or replace, at its option, without
charge those items that Honeywell,
in its sole discretion, finds defective.
The foregoing is buyer’s sole remedy
and is in lieu of all other warranties,
expressed or implied, including those
of merchantability and fitness for a
particular purpose. In no event shall
Honeywell be liable for consequential,
special, or indirect damages.
While Honeywell may provide applica-
tion assistance personally, through our
literature and the Honeywell web site, it
is buyer’s sole responsibility to determine
the suitability of the product in the ap-
plication.
Specifications may change without
notice. The information we supply is
believed to be accurate and reliable as of
this writing. However, Honeywell assumes
no responsibility for its use.
For more information about Honeywell
products, visit sensing.honeywell.com or
call +1-815-235-6847
Email inquiries to info.sc@honeywell.com
WARNING
PERSONAL INJURY
• DO NOT USE these products as
safety or emergency stop devices
or in any other application where
failure of the product could result in
personal injury.
Failure to comply with these
instructions could result in death or
serious injury.
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this
catalogue is for reference only. DO
NOT USE this document as product
installation information.
• Complete installation, operation
and maintenance information
is provided in the instructions
supplied with each product.
Failure to comply with these
instructions could result in death or
serious injury.
TW Series.
Features:
Qualified to MIL-DTL-83731
• IWTS (Integrated Wire Termination
System) • Saves space and weight
• SPDT and DPDT circuitry • Temperature
range: -65 °C to 71 °C [-85 °F to 160 °F]
• Silver alloy or gold-plated contacts
• Sealed bushing versions • Choice of
1/4 in or 15/32 in bushing • Color tab
available on 15/32 in bushing
Benefits:
Low profile switches and
generally used where space behind the
panel is limited. Used in control panel
or equipment operation applications
where a panel-mount switch with an
environment-proof sealing rating
is needed. Potential applications
include industrial machinery and
equipment, military and commercial
aviation, construction equipment, test
instruments, agricultural machinery,
process control, and medical
instrumentation.
Honeywell Sensing and Internet of Things
9680 Old Bailes Road
Fort Mill, SC 29707
honeywell.com
005423-5-EN IL50 GLO Printed in USA
December 2016
Copyright © 2016 Honeywell International Inc. All rights reserved.
