Brad M12 LED Machine Lights
By combining an LED Light, Mounting Bracket, and M12 Cordset
in one package, the LED Machine Lights Kit simplifies light
maintenance and streamlines machine lighting replacement
Features and Benefits
Complete LED Machine
Lighting Solutions
Package includes LED
Light, Mounting Brackets,
and M12 Cordsets and
Connectors. Simplifies
ordering by condensing an
entire lighting system into
one order number
M12 Connector Interface
Eliminates costly and
complicated hard-wiring.
Simplifies maintenance and
replacement. Delivers IP67
sealing protection for harsh
environments

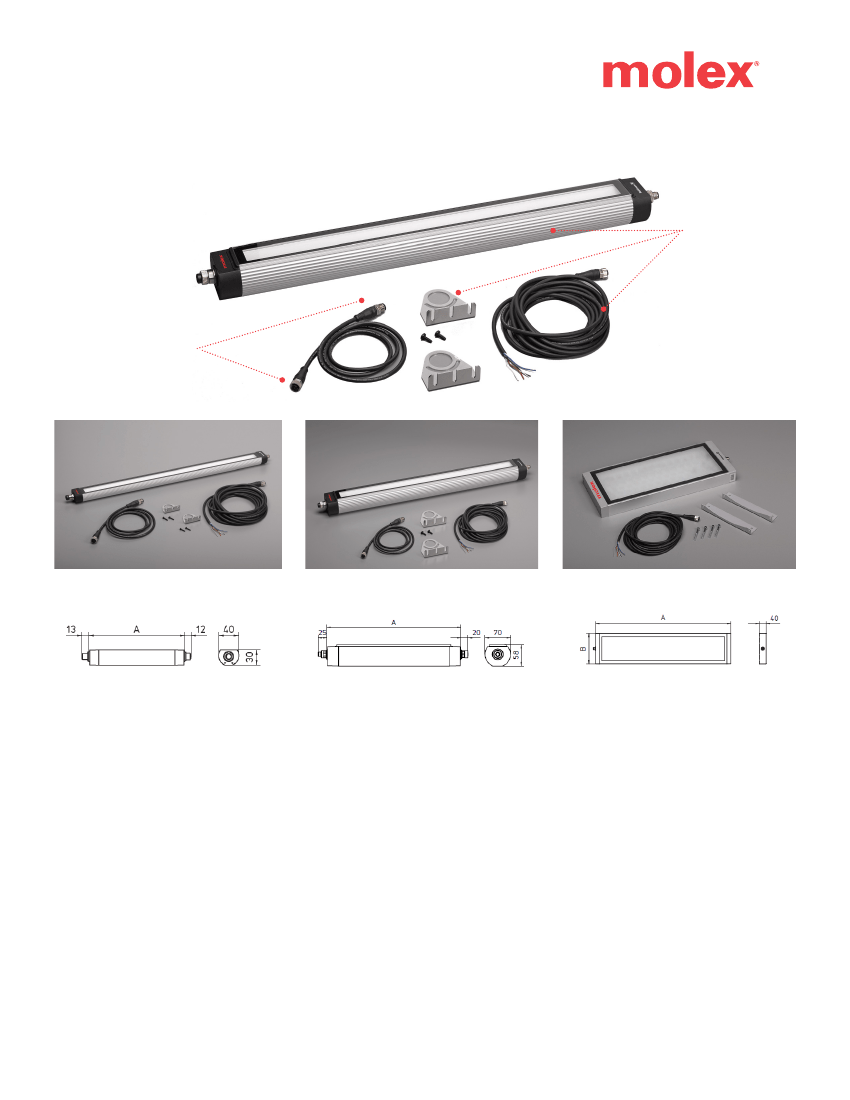

Brad M12 40mm LED Machine Light Kit
Brad M12 70mm LED Machine Light KIT
Brad M12 LUMA Wide-Area LED Machine Light Kit
M12 Lighting Assembly
Power Options:
5.0W
10.5W
16.0W
21.5W
End Brackets
Clip Brackets
Molex M12 Cordsets
5m Single-Ended: 120065-9520
1m Double-Ended: 120066-8992
M12 Closure cap to seal off unused M12 connector
M12 Lighting Assembly
Power Options:
12.0W
24.0W
30.0W
42.0W
End Brackets
Clip Brackets
Molex M12 Cordsets
5m Single-Ended: 120065-9520
1m Double-Ended: 120066-8992
M12 Closure cap to seal off unused M12 connector
Side-Panel M12 Interface
Power Options:
25.0W
50.0W
Pivoting Arm Mount
Mounting Bracket Set
Molex M12 Cordsets
5m Single-Ended: 120065-9520
Applications
Industrial
Machine Lighting
Area Lighting
Workshops
Factories
Plant Floors
Brad M12 LED Machine Lights
Specifications
REFERENCE INFORMATION
Use With: A-Coded M12 Cordset
Designed In: mm
Sealing Protection:
70mm : IP67
40mm: IP67
LUMA: IP68-1m and IPX9K (DIN 40050-9)
ELECTRICAL
Voltage (max.):
70mm : 20 to 28V DC
40mm: 20 to 28V DC
LUMA: 22 to 26V DC
Output:
70mm: 12, 24, 30, or 42W
40mm: 5, 10.5, 16 or 21.5W
LUMA: 25 or 50W
LED Life (min).: 60,000 Hours
MECHANICAL
Length:
70mm: 370mm, 650mm, 790mm, or 1069mm
40mm: 190, 365, 540 or 715mm
LUMA: 420 or 770mm
Outer Diameter: 70mm: 70mm
40mm: 40mm
Width: LUMA: 170mm
Vibration Resistance: From 10 to 55 Hz
Amplitude: 0.35mm
Shock Resistance (max.): 50g
PHYSICAL
Color Temperature:
70mm: 5000K
40mm: 5000K
LUMA: 5800K
Color Rendering: Ra > 80
Reflector Angle: 90˚
LUMA: Glare-Free
Glass Thickness: 4mm
Housing: Anodised Aluminum
Ambient Temperature (max.):
70mm: +40°C
40mm: +50°C
LUMA: +50°C
On/Off Switch: None
Ordering Information
40mm LED Machine Light KIT
Order No.
130305-0010
130305-0020
130305-0030
130305-0040
Engineering No.
M12MXIS40-5W
M12MXIS40-10W
M12MXIS40-16W
M12MXIS40-21W
Output
5.0W
10.5W
16.0W
21.5W
Length
7.5”
14.4”
21.3”
28.2”
End Brackets
5m and 1m Cordsets
M12 Closure Cap
24VDC
Accessories
Operating Voltage
70mm LED Machine Light KIT
Order No.
130305-0110
130305-0120
130305-0130
130305-0140
Engineering No.
M12MXIS70-12W
M12MXIS70-24W
M12MXIS70-30W
M12MXIS70-42W
Output
12W
24W
30W
42W
Length
14.6"
25.6"
31.1"
42.1"
End Brackets
5m and 1m Cordsets
M12 Closure Cap
24VDC
Accessories
Operating Voltage
LUMA Wide-Area LED Machine Light KIT
Order No.
130305-0210
130305-0220
Engineering No.
M12MXISLUMA-25W
M12MXISLUMA-50W
Output
25W
50W
Dimensions
420 x 170mm
770 x 170mm
Accessories
Mounting Bracket Set
5m Cordset
Operating Voltage
24VDC
www.molex.com/link/m12ledlights.html
