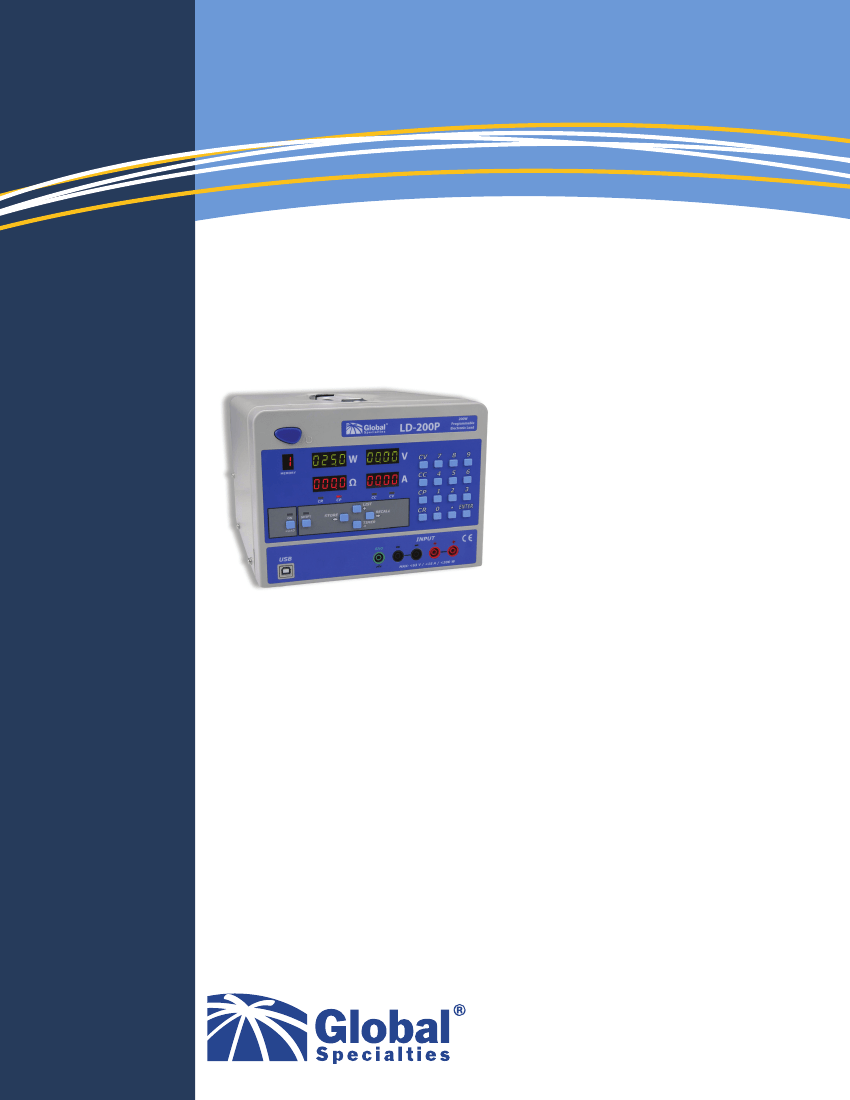

LD-200P
200 W Programmable
Electronic Load
Applications
The LD-200P
Electronic Load is ideally
suited for applications
where value and quality
are equally important
such as for:
z
Educational labs
z
Technical schools
z
Internal training
facilities
z
Hobbyists
Features
z
High resolution (20 mV, 1 mA, 0.1 W, 0.1
Ω)
z
9 sets of programmable memory
z
4-digit LED display
z
Voltage range: 1 - 63 V
z
Current range: 10 mA - 15 A
z
Maximum power: 200 W
z
Operation modes: constant voltage (CV),
constant current (CC), constant power
(CP), and constant resistance (CR)
z
Built in USB interface
z
Over Voltage Protection (OVP)
z
Over Current Protection (OCP)
Overview
The LD-200P is a programmable high
resolution load with digital button control
for ease of operation. With a voltage range
of 1-63 V and current range of 10 mA to
15 A, the LD-200P is the perfect all-round
electronic load. The LD-200P can operate
in constant current (CC), constant voltage
(CV), constant resistance (CR), and con-
stant power (CW) mode and has a standard
USB interface for remote communication.
20160413
A Cal Test Electronics Company
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
800-572-1028
globalspecialties.com
LD-200P
Specifications
Input Ratings
Input Voltage
Input Current
Input Power
63 V
15 A
200 W
1-63 V
20 mV
±(1%+20 mV)
10 mA – 15 A
1 mA
10 mA
±(0.5%+1 mA)
±(0.5%+10 mA)
±(1%+100 mA)
1 – 200 W
0.1 W
±(1%+0.2 W)
CV Mode
Range
Resolution
Accuracy
CC Mode
Range
Resolution:
Accuracy :
10 mA – 1 A
1 A – 15 A
10 mA – 1 A
1A–6A
6 A – 15 A
CP Mode
Range
Resolution
Accuracy
CR Mode
Range
0.5-999 Ω
Resolution
0.1 Ω
Accuracy
±(1%+0.2 Ω)
All specifications apply to the unit after a temperature stabilization time of 15
minutes over an ambient temperature range of 25 °C ± 5 °C.
A Cal Test Electronics Company
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
800-572-1028
globalspecialties.com
LD-200P
Specifications
List Mode
Memory Locations
Timer Range
Timer Resolution
1-9
1-999999 sec
1 sec
20 mV
±(1%+50 mV)
10 mA
±(1%+10 mA)
Readback Voltage
Resolution
Accuracy
Resolution
Accuracy
Readback Current
General
Remote Interface
Protection
Operating Temperature
Operating Humidity
AC Line Input
USB
OVP & OCP
50 ºF to 104 ºF (10 ºC to 40 ºC)
80% R.H.
VAC 115/230 ±10%, 50/60 Hz
(Selectable)
Fuse
120 V, 1.0 A or 240 V, 0.6 A
Dimensions (W x H x D)
9 x 6.75 x 12 in (228 x 171 x 305
mm)
Weight
10 lbs (4.5 kg)
Warranty
One-year warranty
Specifications are subject to change without notice. To ensure the most
current version of this manual, please download the current version from
our website: globalspecialties.com.
A Cal Test Electronics Company
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
800-572-1028
globalspecialties.com
