EHG7608 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> EHG7608

EHG7608: DescriptionNETWORK SWITCH-MANAGED 8 PORT; CategoryModule/solution; File Size483KB，5 Pages; ManufacturerATOP Technologies

Download Datasheet Parametric Compare View All

EHG7608 Overview

NETWORK SWITCH-MANAGED 8 PORT

EHG7608 Parametric

Parameter Name	Attribute value
type	Switch - Managed
Configuration	Fixed + SFP
Number of ports	8
copper port	4
Copper type	10/100/1000
Fiber optic port	-
Fiber type	SFP
SFP/XFP port	-
SFP/XFP type	SFP, Gigabit
Connector type	RJ45，SFP
Voltage - input	9 ~ 57VDC
Intrusion protection	IP30
Installation type	DIN rail
Operating temperature	-20°C ~ 70°C

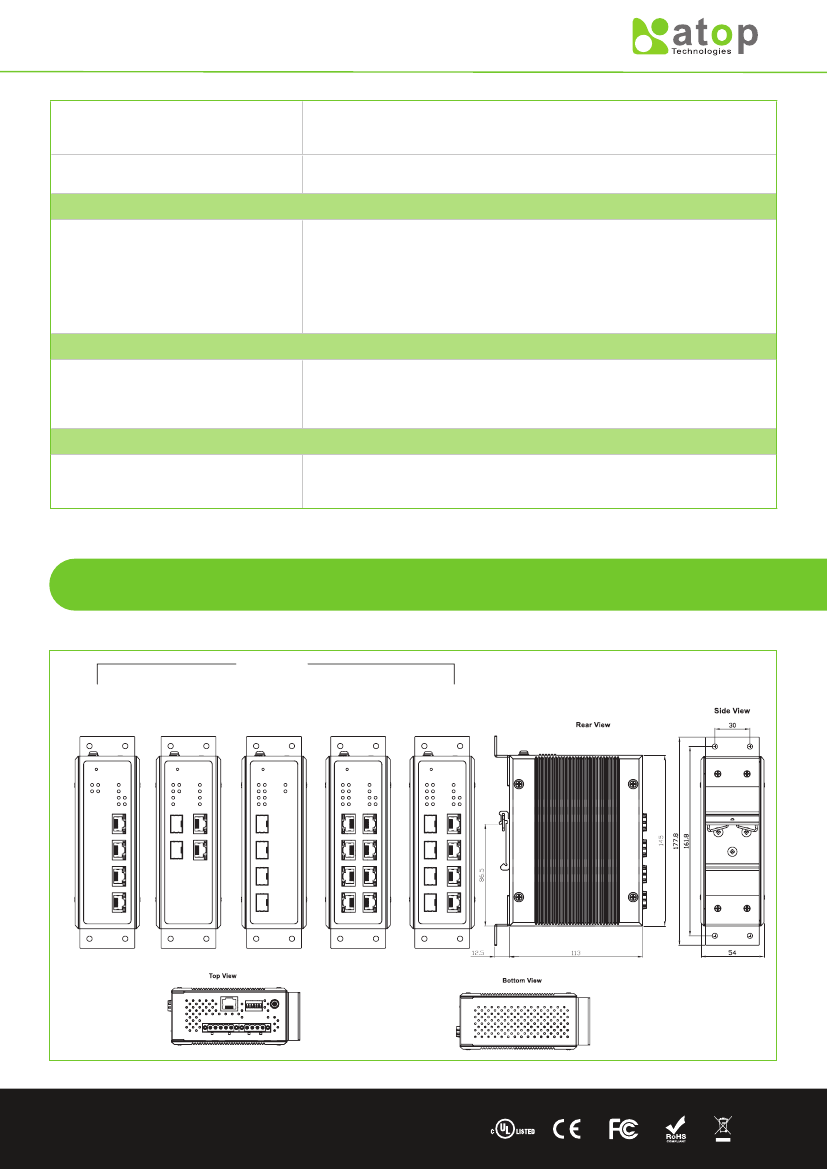

Preview

Download Datasheet

View All

EHG7604

EHG7608 Series

4 or 8-Port Industrial Layer-3

Managed Gigabit PoE Switch

FEATURE HIGHLIGHTS

•

 Up to 8 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots.

•

 Up to 8 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W

PoE power per port and maximum 240 W device power budget.

•

 Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2

•

 Layer-2 Redundancy, with ERPS, RSTP, STP, MRP (Client) and more.

•

 Profinet Conformance Class B certified & Ethernet/IP Ready

•

 IEEE 1588v2 Precision Time Protocol Hw-Based Transparent clock

•

 CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications

•

 Works from -20°C~70°C, in 4000m elevation

PRODUCT DESCRIPTION

The EHG7604/EHG7608 Series is an Industrial Grade Layer-3 Managed Gigabit Ethernet PoE Switch.

Designed to provide a highly

reliable, fault-tolerant, extremely fast network connection in a harsh environment, EHG7604/EHG7608 Series equips two terminal

blocks to provide dual redundant power inputs with Reverse Polarity Protection and allows field engineers to build up a stand-alone

fault alarm system.

EHG76XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications.

Within its compact DIN-Rail housing design, the EHG7604/EHG7608 series

allows you to choose between different port

combinations:

10/100/1000 BASE-T(X) RJ45 port, 1000 BASE-X SFP port and IEEE 802.3af/at complaint PoE RJ45. EHG7604/08

provide, in its 8-PoE-Port Version, up to

240W power budget.

Layer-3 routing support IPv4 static routing, RIP v1/v2 and OSPFv2.

This is the right choice if you want to set up a Reliable network environment with its intelligent features and keep equipment

connected all the time, even in case of temporary network breakdowns through

RSTP, ERPS Rings and MRP (client) redundancy.

And

that’s not all.

Designed specifically for Automation, it is Profinet CC-B v2.33 certified and Ethernet/IP compatible,

MAC-based Black

List/White List, IEEE 802.1x, RADIUS, TACACS+, etc., and keep your network safe.

EHG7604/EHG7608 Series : built tough.

TEL :

+ 886 - 3 - 5508137

FAX:

+ 886 - 3 - 5508131

EMAIL:

sales@atop.com.tw

WEB:

http://www.atop.com.tw

0.6

EHG7608 Related Products

	EHG7608	EHG7608-4SFP	EHG7608-4POE-4SFP	EHG7604-2POE-2SFP	EHG7604	EHG7604-2SFP	EHG7604-4SFP	EHG7604-4POE	EHG7608-8POE
Description	NETWORK SWITCH-MANAGED 8 PORT	NETWORK SWITCH-MANAGED 8 PORT	NETWORK SWITCH-MANAGED 8 PORT	NETWORK SWITCH-MANAGED 4 PORT	NETWORK SWITCH-MANAGED 4 PORT	NETWORK SWITCH-MANAGED 4 PORT	NETWORK SWITCH-MANAGED 4 PORT	NETWORK SWITCH-MANAGED 4 PORT	NETWORK SWITCH-MANAGED 8 PORT
type	Switch - Managed	Switch - Managed	Switch - Managed	Switch - Managed	Switch - Managed	Switch - Managed	Switch - Managed	Switch - Managed	Switch - Managed
Configuration	Fixed + SFP	Fixed + SFP	Fixed + SFP	Fixed + SFP	Fixed + SFP	Fixed + SFP	Fixed + SFP	Fixed + SFP	Fixed + SFP
Number of ports	8	8	8	4	4	4	4	4	8
copper port	4	4	4	2	4	2	-	4	8
Copper type	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Fiber optic port	-	4	4	2	-	2	4	-	-
Fiber type	SFP	SFP	SFP	SFP	SFP	SFP	SFP	SFP	SFP
SFP/XFP port	-	4	4	2	-	2	4	-	-
SFP/XFP type	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit	SFP, Gigabit
Connector type	RJ45，SFP	RJ45，SFP	RJ45，SFP	RJ45，SFP	RJ45，SFP	RJ45，SFP	RJ45，SFP	RJ45，SFP	RJ45，SFP
Voltage - input	9 ~ 57VDC	9 ~ 57VDC	51 ~ 57VDC	51 ~ 57VDC	9 ~ 57VDC	9 ~ 57VDC	9 ~ 57VDC	51 ~ 57VDC	51 ~ 57VDC
Intrusion protection	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30
Installation type	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail
Operating temperature	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
