M-77 Overview

TAPE DISPENSER 4"W LANE APPLCTR

M-77 Parametric

Parameter NameAttribute value
typeroad applicator
Tape Width - Max.4.00"(101.6mm)

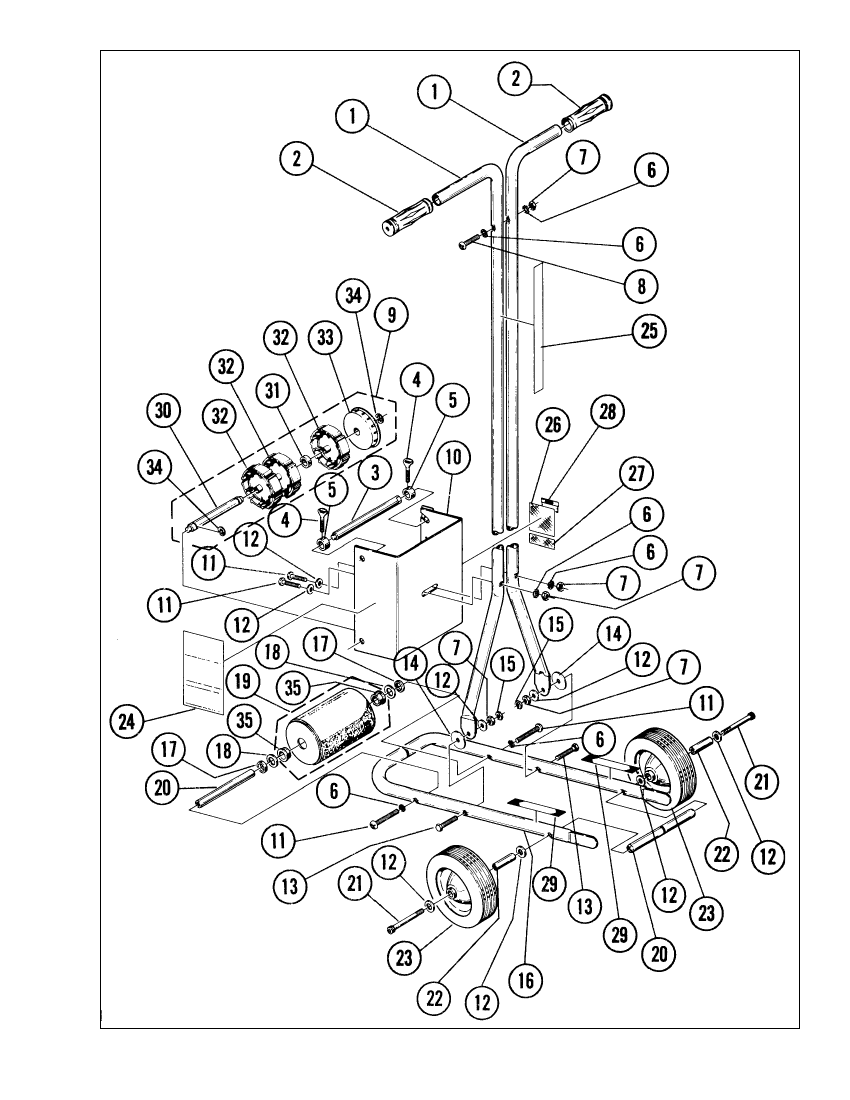

Instructions and Parts List
3
™
Lane Marking Applicator M-77
Description
The M-77 is used to apply Vinyl Tape 471 to floor
surfaces in manufacturing and commercial plants. The
M-77 is used for lane marking, aisle designations,
storage boundaries and for channeling traffic to permit
direct flow of personnel and products. The M-77 can
apply one or two color tape applications on most
types of floor surfaces. The wide applying roller is
constructed so that it also forces the tape into
crevices and depressions often found in older wood
and concrete floors.
Specifications
Tape:
3M Vinyl Tape 471
Tape Widths:
4 inches or 96 mm wide maximum:
1/4 inch or 6 mm wide minimum
Tape Roll Diameter:
4-1/2 inches [115 mm]
maximum (36 yards [33 m] on a 3 inch [76.2 mm]
core.)
Overall Dimensions:
Length – 18-1/2 inches [470 mm]
Height – 40 inches [1015 mm]
Width – 13 inches [330 mm]
Weight:
Packaged
14 lbs. [6.4 kg]
Unpackaged 11 lbs. [5.0 kg]
Lane Marking Applicator M-77
B
Loading Instructions

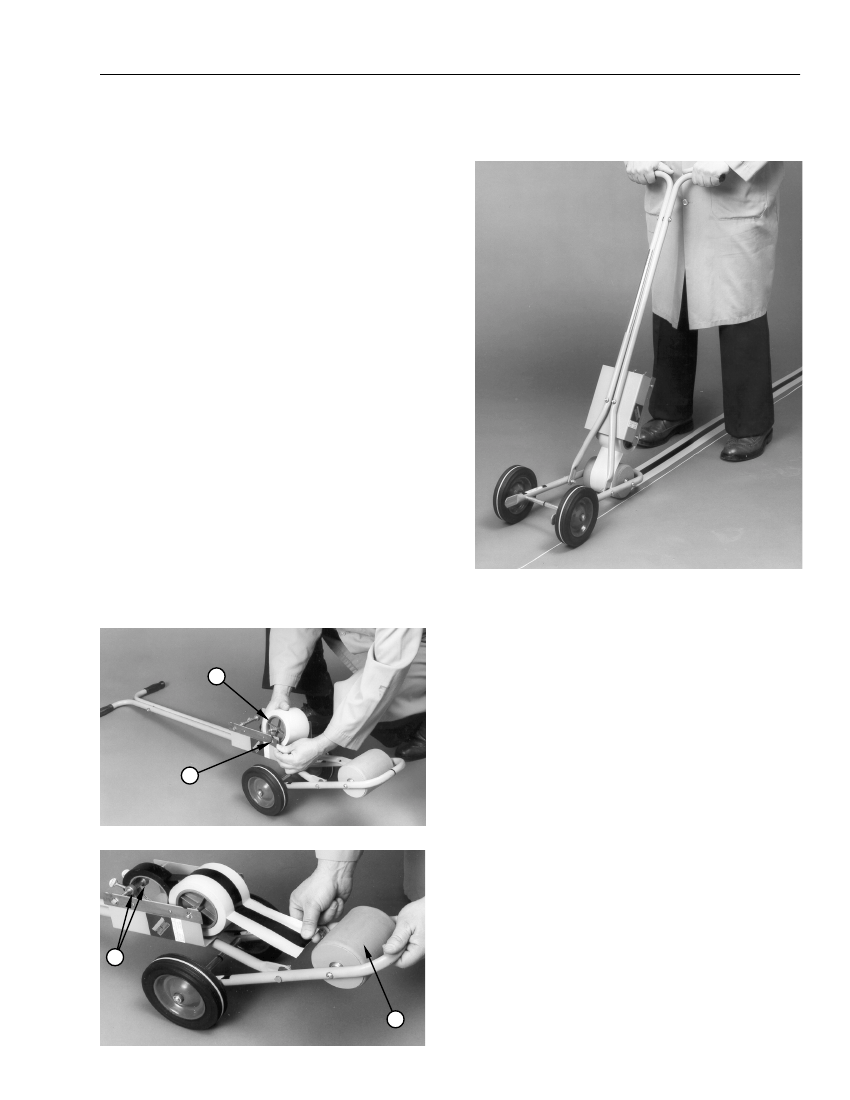

Refer to Figures 1 through 3 and follow the steps
below to load tape roll(s) for one or two color tape
applications.
1. Position M-77 on a flat surface so applicator rests
squarely on handle and front wheels as shown
2. Press out on end of retainer (A) and lift tape drum
assembly from applicator.
3. Install tape roll (3 inch or 72 mm to 4 inch or 96
mm wide) on to tape drum assembly so roll is
fully against end drum flange (B).
4. Replace tape drum assembly with tape into
bracket so tape is dispensed toward apply roller
(C), adhesive side down.
5. For double tape roll applications – install second
tape roll (1/4 inch or 6 mm to 1 inch or 24 mm
wide) onto tape roll shaft between two collars (D)
to dispense tape toward applying roll, adhesive
side down. Tighten thumb screws to secure
collars allowing tape roll to turn freely.

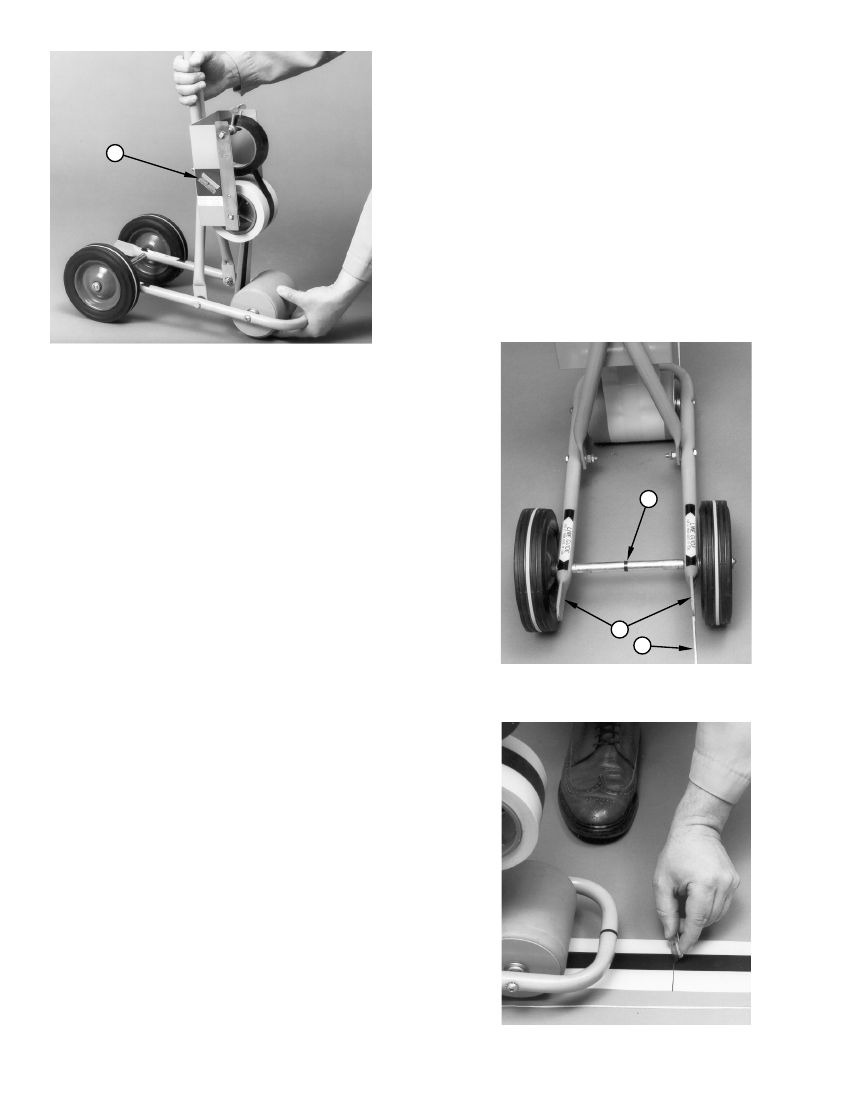

(Loading instructions continued on next page.)
C
A
Figure 1
D
Figure 2
