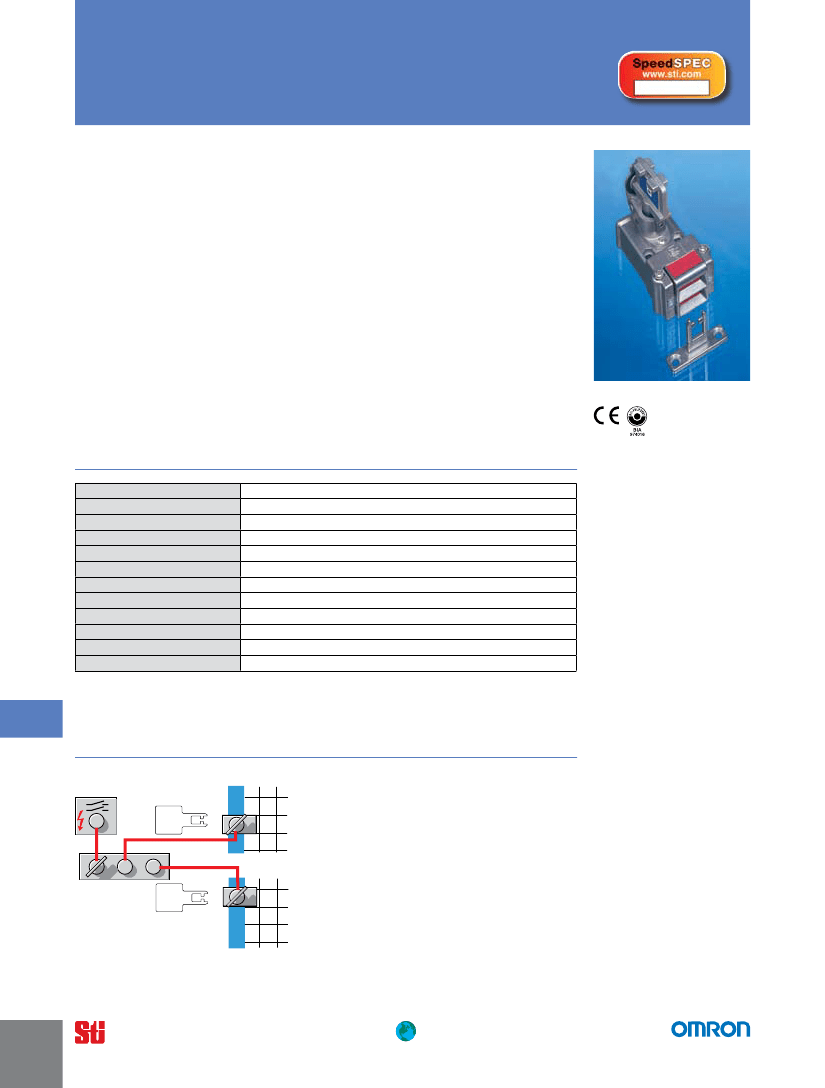

Process Safeguarding
Slamlock Single Key
trapped Single Key interlocks
The Slamlock interlock combines the features of trapped keys with tongue
actuated interlocks. When the actuator is inserted into the interlock (guard closed),
the trapped key can be rotated and removed. With the key removed, the actuator
cannot be removed thus locking the closed guard door. The key must be re-inserted
and rotated 90° in order to unlock the guard.
The single key Slamlock is used to interlock hatches, guards and doors where full
body access is not required.
• 450 lb. locking force
• Variety of actuator types available
• Direct drive push/pull operation
• 316 stainless steel construction
• Virtually maintenance free
• Weatherproof stainless steel dust cap as standard
• Fitted with tamper resistant screws
• Screws may be applied from the rear for increased tamper resistance
SSLE
Specifications
Operating Tempertaure:
Mechanical Operations:
Max. Shear Force to Key:
Max. Torque to Key:
Max. Holding Force:
Relative Operating Humidity:
Weight:
Material:
Mounting:
Code Barrels:
Conforms to Standards:
Approvals:
-20 to 80°C (-4 to 176°F)
>10
5
under normal working conditions
15.1 kN
14 Nm
2000 N (450 lb.)
25% to 95%
760 gm (27 oz.)
316L stainless steel
2 x M5
Tested to 100,000 operations
Relevant clauses EN292, EN1088 & GS ET 19
CE marked for all applicable directives and BG
Specifications are subject to change without notice.
m
Applications
Isolator switch
A
Slamlock Single Key
B
A
B
B
B
Key exchange unit
Slamlock Single Key
m22
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
Slamlock Single Key
Process Safeguarding

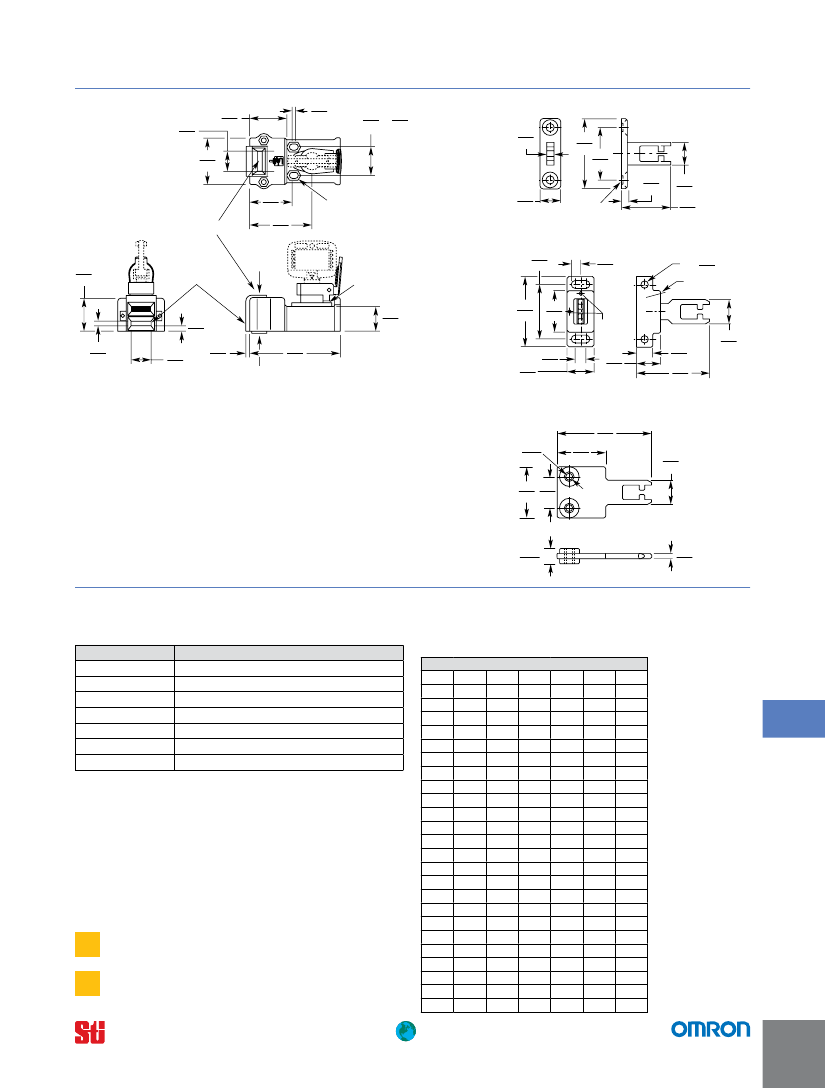

Dimensions
20.8
0.82
48
1.89
43.6
1.72
64.1
2.52
M5 C'BORED FROM TOP.
M5 MOUNTING FROM U'SIDE
USING M5 NUTS IN RECESSES
(mm/in.)
38.3
1.51
3.5
0.14
Standard Actuator
28.5
&
30
PITCH RANGE
1.12 1.18
3.5
0.14
52
2.05
40
1.57
4
0.16
18
0.71
36
1.42
14.5
0.57
M5 CSK
TOP ENTRY
flexible 1 Actuator
34
1.34
40
1.57
FRONT ENTRY
CODE BARREL SCREWS
M4 x 8 RESISTORX HEAD
6.8
0.27
4 x
Ø5.5
0.22
2 x M3
5.5
0.22
5
0.2
20.8
0.82
4
0.16
93
3.6
BOTTOM ENTRY
25.4
1
52
2.05
31
1.22
Adjusting
screws
8
20 0.31
0.79
flat Actuator
19
0.75
13
0.51
51
2.01
18
0.71
4
0.175
36 20
1.42 0.8
25
.984
57
2.24
18
0.69
Ordering
Slamlock Single Key interlock
Key is trapped to release actuator.
Part no.
SSLE10
SSLE11
SSLE12
SSLE13
44519-0700
44519-0710
44519-0720
Actuator
Standard
Flexible
Flat
Flat with 305 mm chain
Spare standard actuator
Spare flexible actuator
Spare flat actuator
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
S
T
U
V
W
X
Y
Z
Aa
Ba
Ca
Da
Ea
Fa
Ga
Ha
Ia
Ja
Ka
La
Ma
Na
Oa
Pa
Ra
Sa
Ta
Ua
Va
Wa
Xa
Ya
Za
Ab
Bb
Cb
Db
Eb
Fb
Gb
Hb
Ib
Jb
Kb
Lb
Mb
Nb
Ob
Pb
Rb
Sb
Tb
Ub
Vb
Wb
Xb
Yb
Zb
8
0.315
3.8
0.14
Key codes
(....) = Primary key / key free
[....] = Secondary key / key trapped
codes
Ac
Bc
Cc
Dc
Ec
Fc
Gc
Hc
Ic
Jc
Kc
Lc
Mc
Nc
Oc
Pc
Rc
Sc
Tc
Uc
Vc
Wc
Xc
Yc
Zc
Codes ‘A’ to ‘Z’ available excluding the letter ‘Q’. To specify
coding, add the key code of your choice from the Key Code
Table to the part no. from the Ordering Table, i.e. SSLE10(A) is a
Slamlock single key interlock with primary ‘A’ key.
Key ordered
separately.
details
✎
For codingM5. and referencing,
see page
✎
To order keys, on page M30.
