1775773001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1775773001

1775773001: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1775773001 Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE

1775773001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	19
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

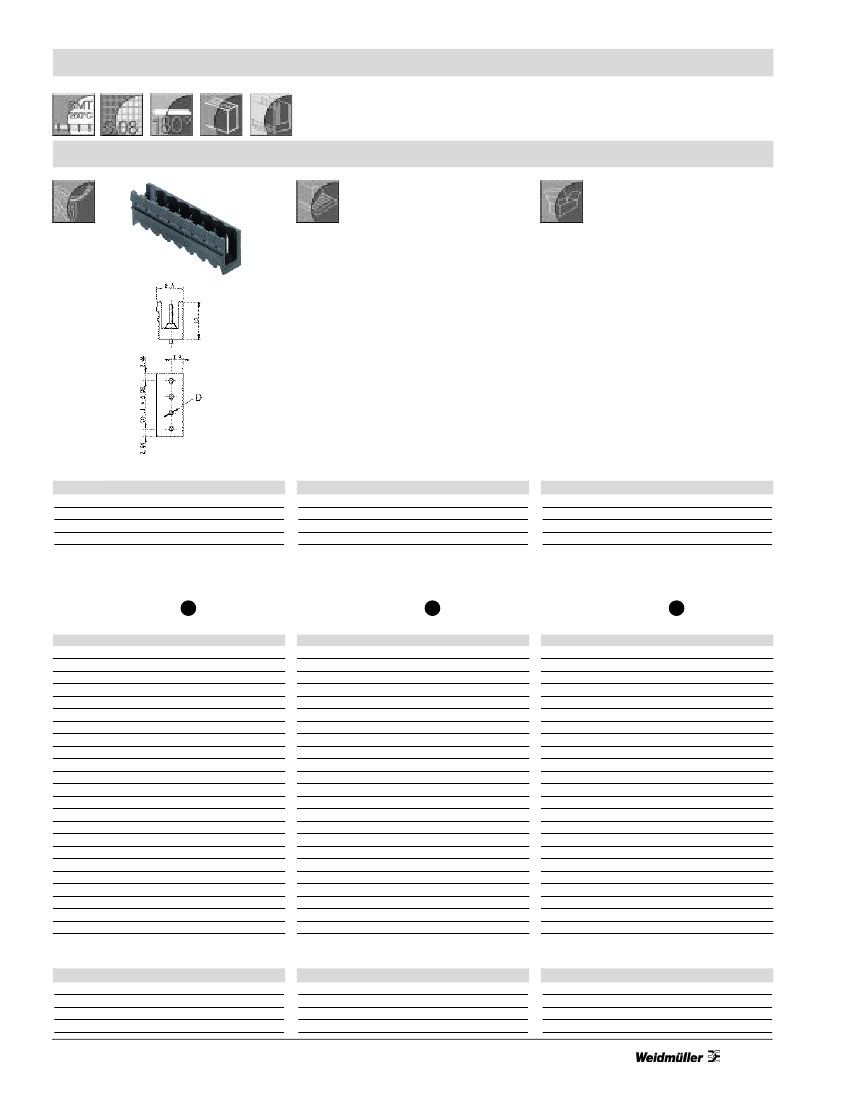

Omnimate Range - 5.08 mm Pitch

Pin headers SL-SMT 5.08/180

D = up to 8 poles Ø 1.4

+0.1

from 9 poles Ø 1.5

+0.1

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

*Overvoltage category III / Pollution severity 3

Additional technical data see page 2

*Overvoltage category III / Pollution severity 3

Additional technical data see page 2

*Overvoltage category III / Pollution severity 3

Additional technical data see page 2

Solder pin length

Tape-on-Reel

Color: Black

Tape width

Poles Type

SL-SMT 5.08/2/180

SL-SMT 5.08/3/180

SL-SMT 5.08/4/180

SL-SMT 5.08/5/180

SL-SMT 5.08/6/180

SL-SMT 5.08/7/180

SL-SMT 5.08/8/180

1.5 mm

Solder pin length

Tray

Color: Black

Qty.

200

Poles

–

Type

–

SL-SMT 5.08/4/180

SL-SMT 5.08/5/180

SL-SMT 5.08/6/180

SL-SMT 5.08/7/180

SL-SMT 5.08/8/180

SL-SMT 5.08/9/180

SL-SMT 5.08/10/180

SL-SMT 5.08/11/180

SL-SMT 5.08/12/180

SL-SMT 5.08/13/180

SL-SMT 5.08/14/180

SL-SMT 5.08/15/180

SL-SMT 5.08/16/180

SL-SMT 5.08/17/180

SL-SMT 5.08/18/180

SL-SMT 5.08/19/180

SL-SMT 5.08/20/180

SL-SMT 5.08/21/180

SL-SMT 5.08/22/180

SL-SMT 5.08/23/180

SL-SMT 5.08/24/180

1.5 mm

Solder pin length

Standard Box

Color: Black

Qty.

–

Poles

Type

SL-SMT 5.08/2/180

SL-SMT 5.08/3/180

SL-SMT 5.08/4/180

SL-SMT 5.08/5/180

SL-SMT 5.08/6/180

SL-SMT 5.08/7/180

SL-SMT 5.08/8/180

SL-SMT 5.08/9/180

SL-SMT 5.08/10/180

SL-SMT 5.08/11/180

SL-SMT 5.08/12/180

SL-SMT 5.08/13/180

SL-SMT 5.08/14/180

SL-SMT 5.08/15/180

SL-SMT 5.08/16/180

SL-SMT 5.08/17/180

SL-SMT 5.08/18/180

SL-SMT 5.08/19/180

SL-SMT 5.08/20/180

SL-SMT 5.08/21/180

SL-SMT 5.08/22/180

SL-SMT 5.08/23/180

SL-SMT 5.08/24/180

1.5 mm

56 mm

Part No.

1775524001

1775574001

1775594001

1775634001

1775644001

1775654001

1775664001

Part No.

–

1775593001

1775633001

1775643001

1775653001

1775663001

1775673001

1775683001

1775693001

1775703001

1775713001

1775723001

1775733001

1775743001

1775753001

1775763001

1775773001

1775783001

1775793001

1775803001

1775813001

1775823001

Part No.

1775522001

1775572001

1775592001

1775632001

1775642001

1775652001

1775662001

1775672001

1775682001

1775692001

1775702001

1775712001

1775722001

1775732001

1775742001

1775752001

1775762001

1775772001

1775782001

1775792001

1775802001

1775812001

1775822001

Qty.

100

Additional pole numbers and tape widths on request.

Minimum order quantities may apply.

Accessories see PCB Products Selection Guide

Fixing

Marking

Coding

Miscellaneous

Page

–

190

192,193

–

Accessories see PCB Products Selection Guide

Fixing

Marking

Coding

Miscellaneous

Page

–

190

192,193

–

Accessories see PCB Products Selection Guide

Fixing

Marking

Coding

Miscellaneous

Page

–

190

192,193

–
