HMC369LP3
/
369LP3E
SMT GaAs HBT MMIC x2 ACTIVE
FREQUENCY MULTIPLIER, 9.9 - 12.7 GHz OUTPUT
v04.0210
Typical Applications
Features
Output Power: +4 dBm
Sub-Harmonic Suppression: 30 dBc
SSB Phase Noise: -142 dBc/Hz
Single Supply: 5V@ 46 mA
16 Lead 3x3mm SMT Package: 9mm2
4
FREQ. MULTIPLIERS - ACTIVE - SMT
Active Multiplier for X Band Applications:
• OC-192 Clock Recovery
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Test Instrumentation

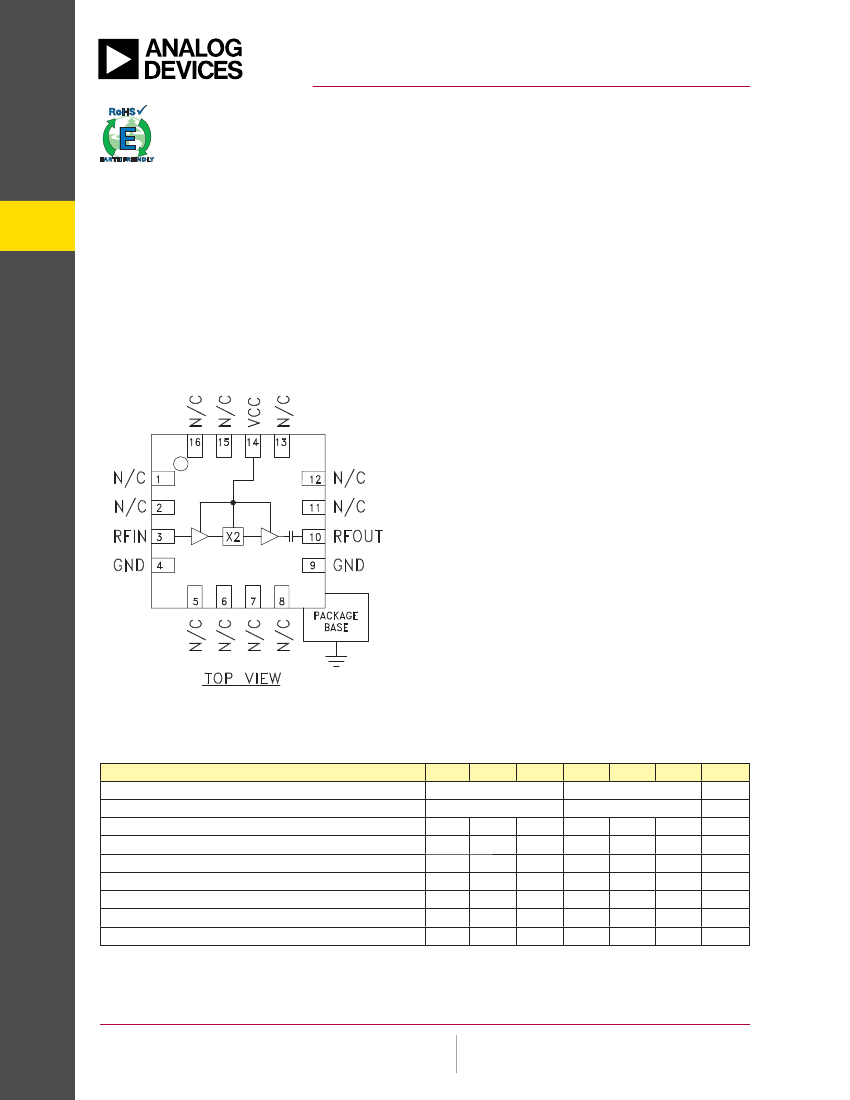

Functional Diagram
General Description
The HMC369LP3 & HMC369LP3E are active miniature
x2 frequency multipliers utilizing InGaP GaAs HBT
technology in 3x3 mm leadless QFN surface mount
packages. Power output is +4 dBm typical from a
single +5V supply and varies little vs. input power,
temperature and supply voltage. Suppression of
undesired fundamental and sub-harmonics is 30
dBc typical with respect to output signal level. The
low additive SSB phase noise of -142 dBc/Hz at
100 kHz offset helps the user maintain good system
noise performance. The HMC369LP3(E) is ideal for
use in LO multiplier chains allowing reduced parts
count versus traditional approaches. The HMC-
369LP3(E) are also useful for OC-192 clock recovery.
The application of 10 GBPS data to the input gen-
erates a -7 dBm clock tone at the output with spurious
signals suppressed by 25 dB.
Electrical Specifi cations,
T
A
= +25° C, Vcc= 5V
Parameter
Frequency Range, Input
Frequency Range, Output
Input Power Range
Output Power
Sub-Harmonic Suppression
Input Return Loss
Output Return Loss
SSB Phase Noise (100 kHz Offset)
Supply Current (Icc)
Pin= 0 dBm
-5
-1
3
30
17
5.5
-142
46
61
Min.
Typ.
4.95 - 5.3
9.9 - 10.6
+5
-5
0
4
30
16
6
-142
46
61
Max.
Min.
Typ.
5.3 - 6.35
10.6 - 12.7
+5
Max.
Units
GHz
GHz
dBm
dBm
dBc
dB
dB
dBc/Hz
mA
4 - 40
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC369LP3
/
369LP3E
SMT GaAs HBT MMIC x2 ACTIVE
FREQUENCY MULTIPLIER, 9.9 - 12.7 GHz OUTPUT

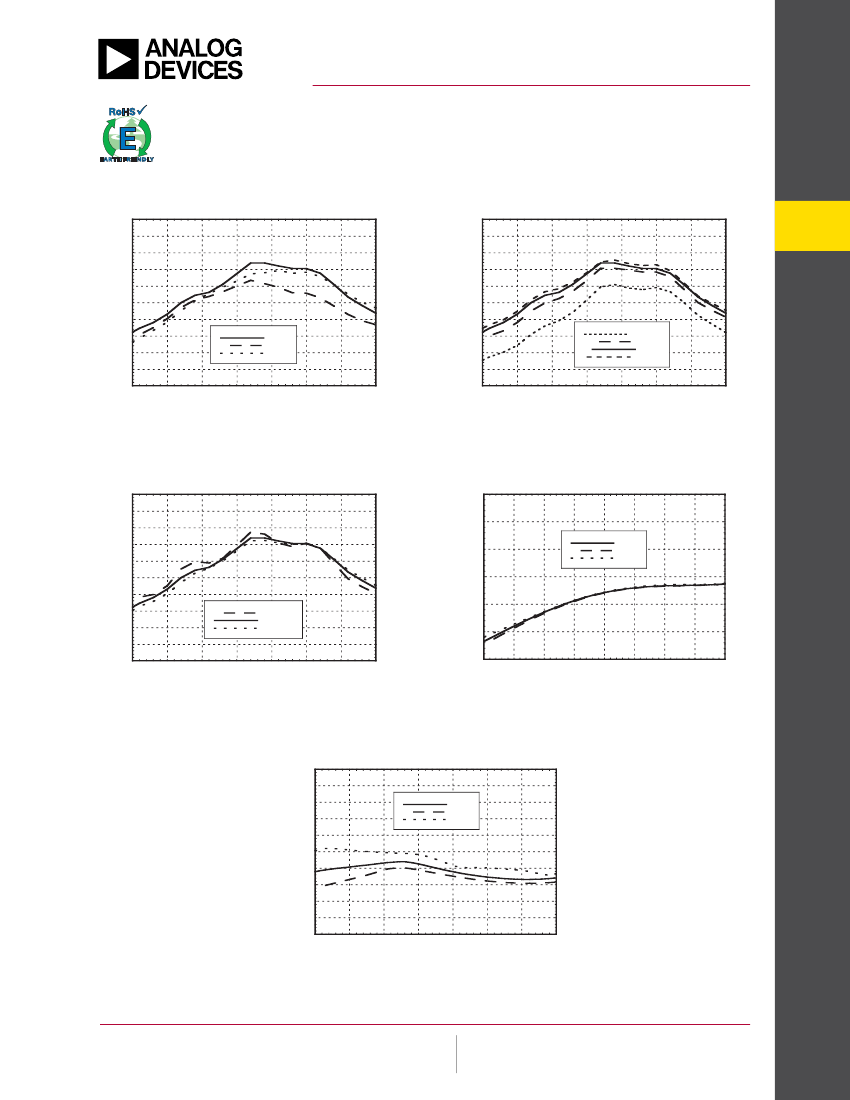

Output Power vs.
Temperature @ 0 dBm Drive Level
8
7
OUTPUT POWER (dBm)
OUTPUT POWER (dBm)
6
5
4
3
2
1
0
-1
-2
9.5
10
10.5
11
11.5
12
12.5
13
OUTPUT FREQUENCY (GHz)
+25 C
+85 C
-40 C
v04.0210
Output Power vs. Drive Level
8
7
6
5
4
3
2
1
0
-1
-2
9.5
10
10.5
11
11.5
12
12.5
13
-10 dBm
-5 dBm
0 dBm
+5 dBm
4
FREQ. MULTIPLIERS - ACTIVE - SMT
4 - 41
OUTPUT FREQUENCY (GHz)
Output Power vs.
Supply Voltage @ 0 dBm Drive Level
8
7
OUTPUT POWER (dBm)
6
Input Return Loss vs. Temperature
0
-5
RETURN LOSS (dB)
-10
-15
-20
-25
-30
+25 C
+85 C
-40 C
5
4
3
2
1
0
-1
-2
9.5
10
10.5
11
11.5
12
12.5
13
OUTPUT FREQUENCY (GHz)
Vcc=4.5V
Vcc=5.0V
Vcc=5.5V
3
3.5
4
4.5
5
5.5
FREQUENCY (GHz)
6
6.5
7
Output Return Loss vs. Temperature
0
-1
-2
RETURN LOSS (dB)
-3
-4
-5
-6
-7
-8
-9
-10
9.5
10
10.5
11
11.5
12
12.5
13
FREQUENCY (GHz)
+25 C
+85 C
-40 C
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC369LP3
/
369LP3E
v04.0210
SMT GaAs HBT MMIC x2 ACTIVE
FREQUENCY MULTIPLIER, 9.9 - 12.7 GHz OUTPUT

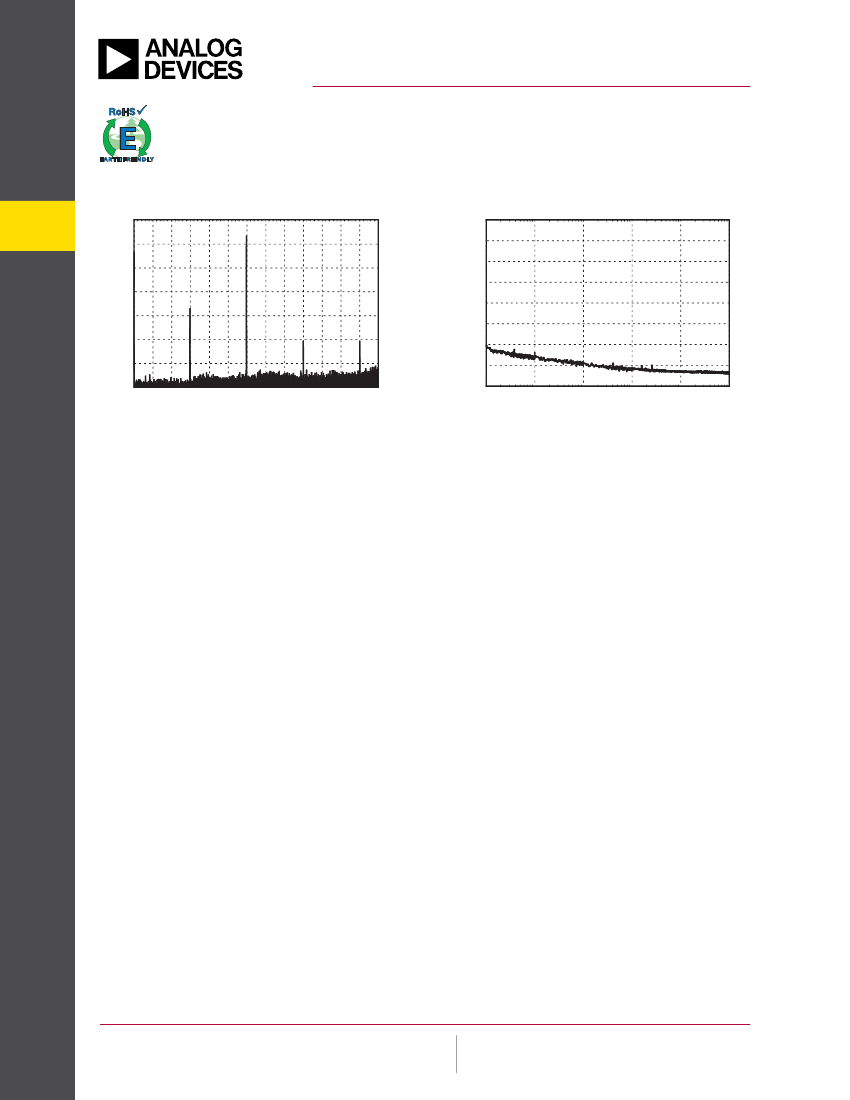

SSB Phase Noise
Performance, Fout= 10.66 GHz,
Input Power= 0 dBm
0
-20
SSB PHASE NOISE (dBc/Hz)
-40
-60
-80
Output Spectrum
4
OUTPUT POWER (dBm)
10
0
-10
-20
-30
-40
-50
-60
0
2
4
6
8
10
12
14 16 18
20 22 24
26
FREQUENCY (GHz)
FREQ. MULTIPLIERS - ACTIVE - SMT
-100
-120
-140
-160
2
10
3
4
5
6
7
10
10
10
10
10
OFFSET FREQUENCY (Hz)
4 - 42
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC369LP3
/
369LP3E
v04.0210
SMT GaAs HBT MMIC x2 ACTIVE
FREQUENCY MULTIPLIER, 9.9 - 12.7 GHz OUTPUT
Absolute Maximum Ratings
RF Input (Vcc = +5V)
Vcc
Channel Temperature
Continuous Pdiss (T=85 °C)
(derate 6.8 mW/°C above 85 °C)
Thermal Resistance (R
th
)
(junction to ground paddle)
Storage Temperature
Operating Temperature
+20 dBm
+5.5V
135 °C
440 mW
Typical Supply Current vs. Vcc
Vcc (V)
4.5
5.0
5.5
Icc (mA)
45
46
4
FREQ. MULTIPLIERS - ACTIVE - SMT
4 - 43
47
Note: Multiplier will operate over full voltage range shown
above.
147.8 °C/W
-65 to +150 °C
-40 to +85 °C
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

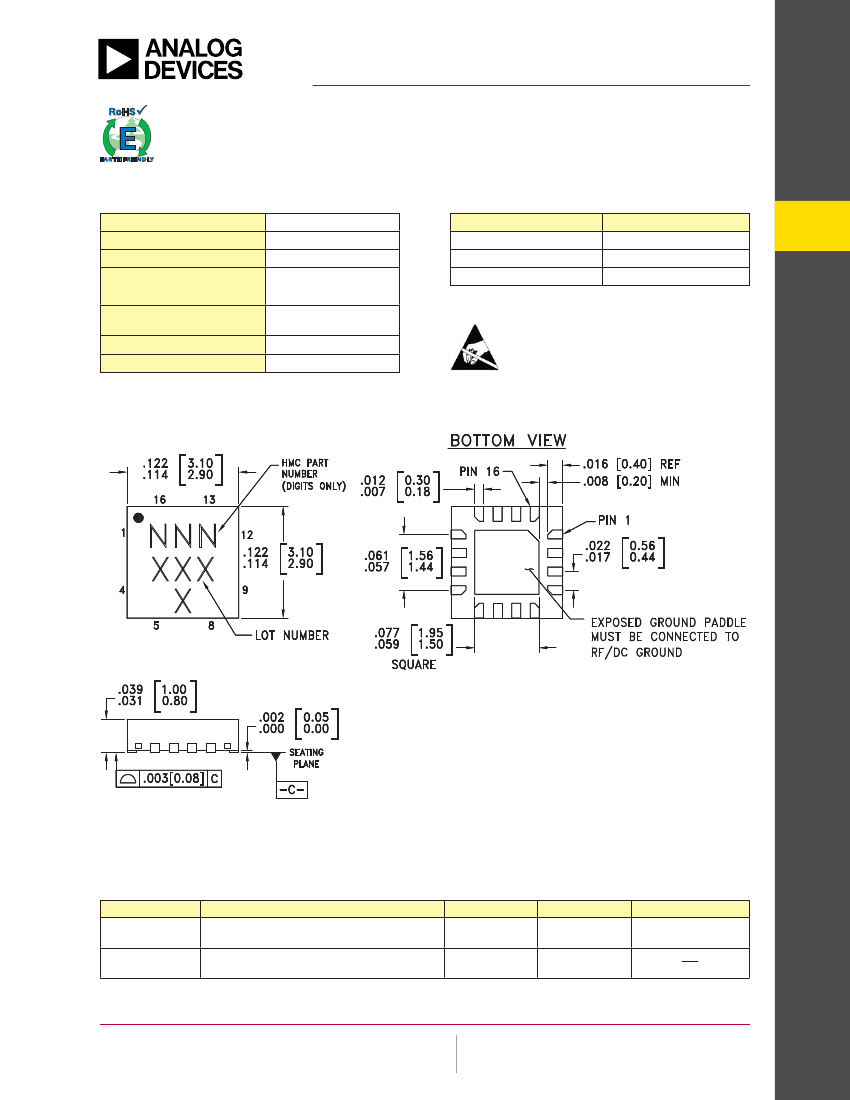

Outline Drawing
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM.
PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC369LP3
HMC369LP3E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
369
XXXX
369
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC369LP3
/
369LP3E
SMT GaAs HBT MMIC x2 ACTIVE
FREQUENCY MULTIPLIER, 9.9 - 12.7 GHz OUTPUT
v04.0210
Pin Description
4
FREQ. MULTIPLIERS - ACTIVE - SMT
Pin Number
1, 2, 5 - 8,
11 - 13, 15, 16
Function
N/C
Description
The pins are not connected internally; however, all
data shown herein was measured with these pins
connected to RF/DC ground externally.
Interface Schematic
3
RFIN
RF input needs to be DC blocked only if there is an
external DC voltage applied to RFIN.
4, 9
GND
All ground leads and ground paddle must be soldered
to PCB RF/DC ground.
10
RFOUT
Multiplied Output. AC coupled.
No external DC blocks necessary.
14
Vcc
Supply voltage 5V ± 0.5V.
4 - 44
