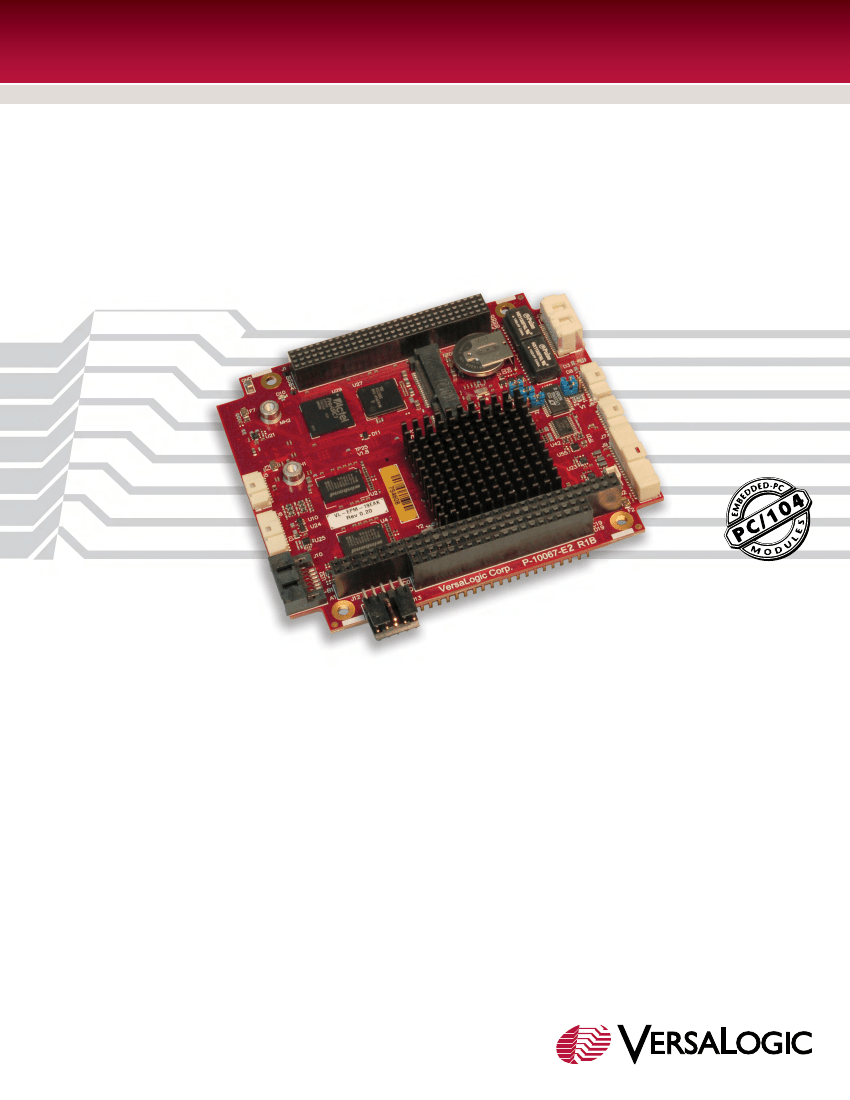

Product Data Sheet
Fox
PC/104-Plus Single Board Computer
Overview
The Fox is a low power embedded computer designed around
the PC/104-Plus standard. It is powered by a DMP Vortex86DX2
processor that enables the entire board to typically use less than
6.65W of power. Several I/O interfaces, multiple expansion buses,
and thermal management options provide system designers with
flexibility and low overall system cost.
Fox was designed with no moving parts, soldered-on RAM, and
tested so it can withstand extreme temperatures, high-impact,
and vibration. This single board computer is an ideal choice for
applications that require moderate performance, low-power draw,
high quality, and long product life.
As with all VersaLogic products, the Fox is backed by a five-year
warranty, 5+ year off-the-shelf availability guarantee, and expert
US-based technical support. Product Life Extension options
support availability through the year 2025.
Highlights
Industrial temp.
(-40° to +85°C) versions
Shock & vibration per
MIL-STD-202G
PC/104™ form factor
Low power draw
Fanless Operation
DMP Vortex CPU
Up to 1 GB
soldered-on RAM
PC/104-Plus expansion
interface
Dual 10/100 Ethernet
VGA and LVDS video
Mini PCIe / mSATA socket
USB 2.0 ports
Serial I/O (RS-232/422/485)
SATA port
MicroSD card socket
VersaAPI software support
C
O
R
P
O
R
A
T
I
O
N

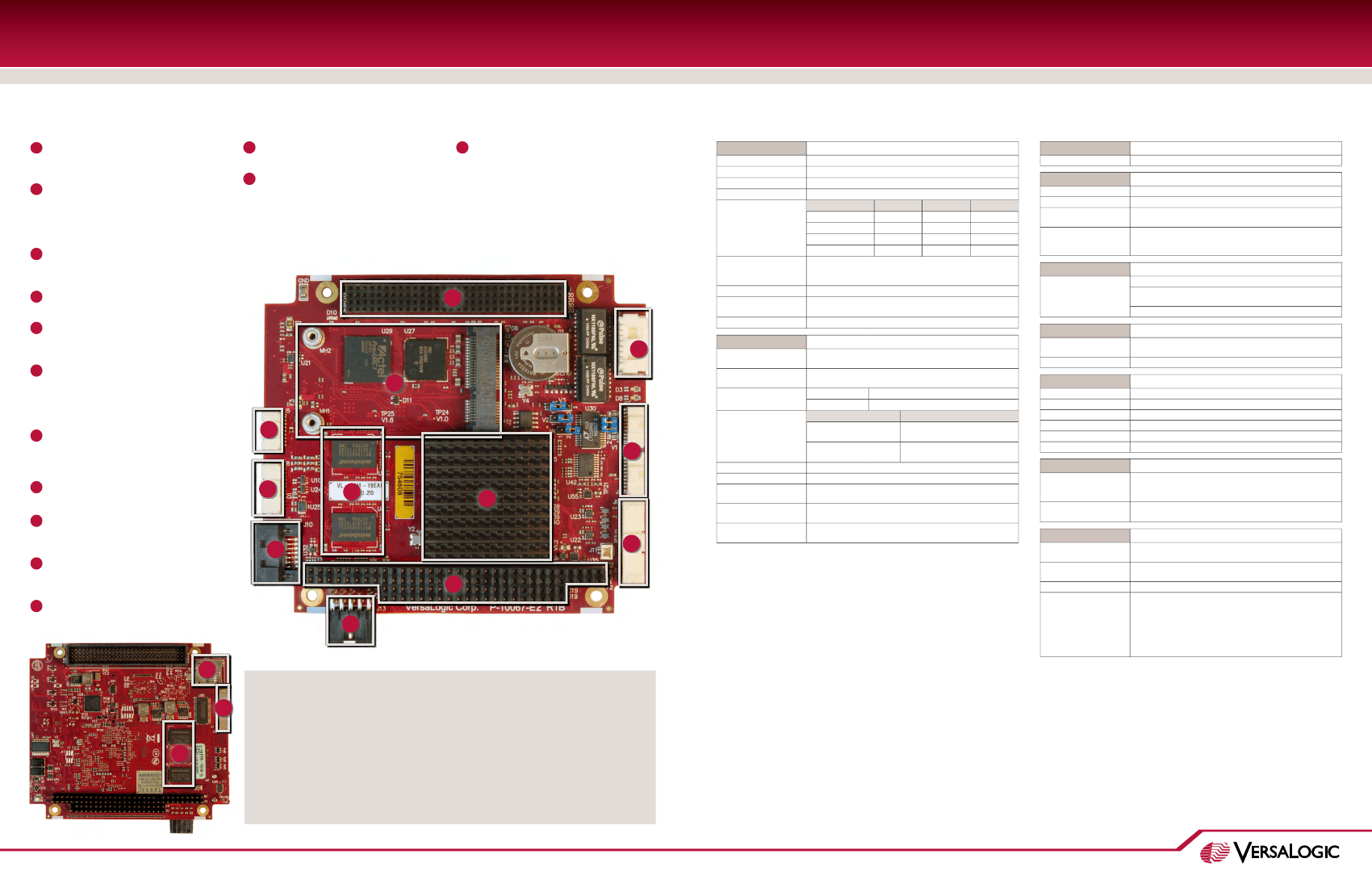

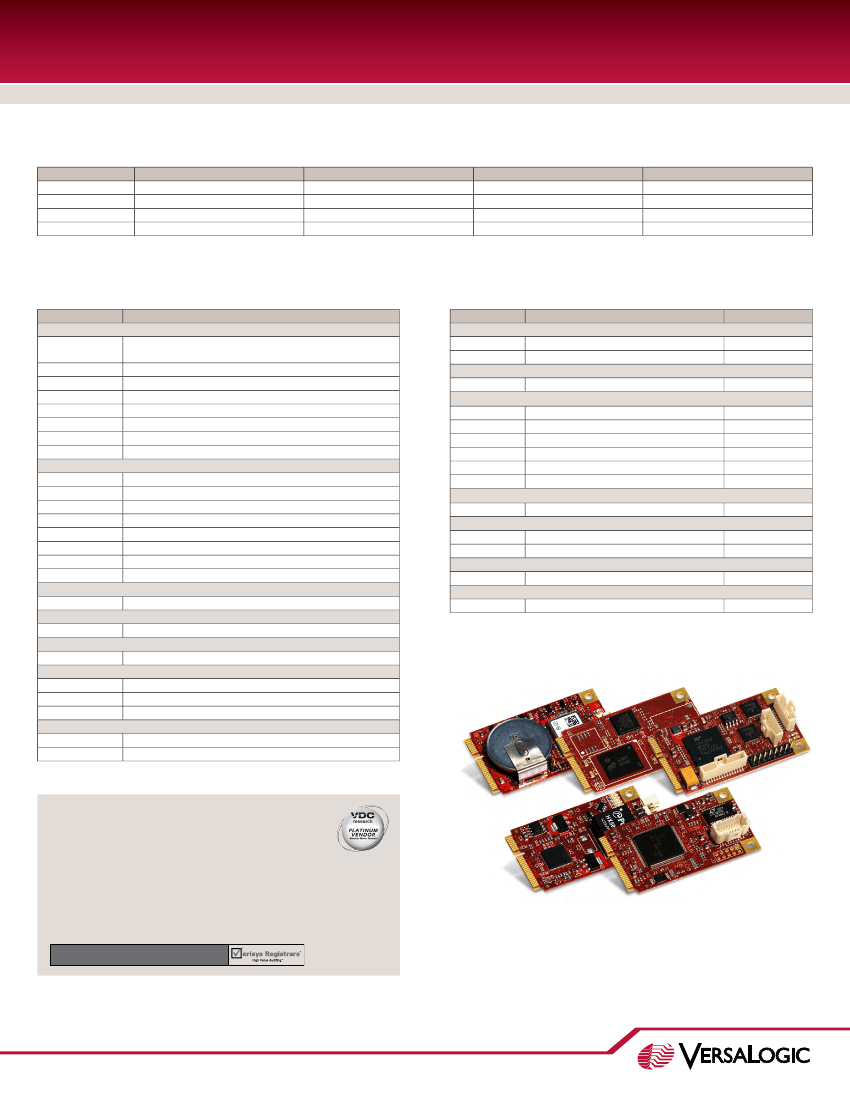

Fox
Product Data Sheet
PC/104-Plus Single Board Computer
Features
1
Specifications
Industrial Temperature Versions
-40° to +85°C operation for harsh environments.
DMP Vortex86DX2 32-bit Processor
Vortex86DX2 x86 low power processor with
integrated I/O and 2D graphics engine.
Software Support
Compatible with a variety of popular x86 operating
systems including Windows, Windows Embedded,
and Linux.
Linux support includes VersaAPI software for
onboard I/O devices.
General
Board Size
Weight
Processor
Input Voltage
Power Requirements
PC/104 standard: 108 mm x 96 mm (4.23” x 3.77”)
120 grams (4.23 oz.)
DMP Vortex86DX2 32-bit
5V +/- 5%
Model
Idle
Typical
Max.
VL-EPM-19SAK
6.40W
6.73W
7.05W
VL-EPM-19SBK
7.05W
7.10W
7.15W
VL-EPM-19EAK
6.30W
6.65W
7.00W
VL-EPM-19EBK
6.50W
6.78W
7.05W
Major voltage rails monitored. Watchdog timer with
programmable timeout. CPU temperature monitoring.
Push-button reset.
PC/104-Plus expansion site
IPC-A-610 Class 2 modified
Compliant
Memory
System RAM
Up to 1 GB DDR2 soldered-on memory.
2
Video Output
LVDS video output for flat panel displays (2a
on
back side).
Standard analog VGA output (2b).
Simultaneous output from both ports.
MIL-STD-202G
Qualified for high shock and vibration environments.
Video
General
VRAM
Desktop Display
Interface ‡
OEM Flat Panel
Interface #
Integrated video controller.
Up to 64 MB shared DRAM frame buffer.
Standard analog output (VGA). Up to 1920 x 1440 (60
Hz). 32-bit. 2 mm IDC connector.
LVDS interface. 18/24-bit. Up to 1024 x 768 (60 Hz).
8 bpp. CMOS-selectable TFT panel types. Support for
FPD power control.
3
Network Support
Dual Ethernet interfaces, autodetect
10BaseT / 100BaseTX with network boot capability.
System Reset &
Hardware Monitors
Mass Storage
Rotating Drive /
Flash /
Solid-State Drives
One SATA 1.5 Gb/s port with latching connectors
One Mini PCIe / mSATA socket (SATA signaling,
bootable)
One microSD socket. Supports up to 32 GB. Bootable.
4
5
RAM
(on front and back sides)
Up to 1 GB soldered-on memory.
10
SATA
One SATA 1.5 Gb/s port supports high-capacity
storage (solid-state drives or rotating media).
Stackable Bus
Manufacturing
Standards
RoHS
3
7
Environmental
Operating
Temperature
Storage Temperature
◊
Altitude
Airflow
Requirements
See Ordering Information for Specific Models
-40° to +85°C
Operating*
To 4,570m (15,000 ft.)
Storage
To 12,000m (40,000 ft.)
Temp. Range
Airflow Requirements
Standard 0° to +60°C
0.5 Linear Meters per Second
(100 Linear Feet per Minute)
Extended -40° to +85°C 0.5 Linear Meters per Second
(100 Linear Feet per Minute)
5°C/min. over operating temperature
Less than 95%, noncondensing
MIL-STD-202G, Method 204, Modified Condition A:
2g constant acceleration from 5 to 500 Hz, 20 min. per axis
MIL-STD-202G, Method 214A, Condition A:
5.35g rms, 5 min. per axis
MIL-STD-202G, Method 213B, Condition G:
20g half-sine, 11 ms duration per axis
Network Interface
Ethernet ‡
Network Boot Option
Two autodetect 10BaseT/100BaseTX ports with latching pin
headers.
Via BIOS extension
6
Device I/O
Four USB 2.0 ports support keyboard, mouse, and
other devices (6a). Two RS-232/422/485 and two
RS-232 serial ports, three 8254 timer/counters, eight
3.3V digital I/O lines, and USB audio support (6b).
Device I/O
USB # ‡
COM 1 / 2 ‡
COM 3 / 4 ‡
Audio
Counter / Timers
Digital I/O
Four USB 2.0 host ports.
RS-232 16C550 compatible.
RS-232/422/485 selectable. 16C550 compatible.
Optional. Use VL-ADR-01 audio interface.
Three 8254 16-bit timers
Eight TTL I/O lines (3.3V)
7
Mini PCIe / mSATA Socket
Supports Wi-Fi modems, Ethernet, Analog I/O,
Serial ports, GPS, MIL-STD-1553, Ethernet,
solid-state mSATA drives, and other plug-in devices
9
6b
2b
8
MicroSD Socket
(on back side)
Supports removable microSD card solid-state drives
4
1
Thermal Shock
Humidity
Vibration, Sinusoidal
Sweep ¤
Vibration, Random ¤
Mechanical Shock ¤
Other I/O
Mini PCIe / mSATA
Socket
SPI Interface
Full-size Mini PCIe / mSATA socket. Supports Wi-Fi
modems, GPS receivers, solid state mSATA drives, and
other plug-in modules.
Supports SPI and SPX devices. Supports up to two SPX
modules.
9
SPI Interface
Supports SPI and SPX devices, including low cost
analog and digital modules.
5
10
11
6a
Software
BIOS
VersaAPI
Sleep Mode
Operating Systems
AMI BIOS. Support for USB keyboard/mouse and USB
boot.
VersaLogic Application Programming Interface to support
on-board I/O devices (Linux only).
None
Compatible with most x86 operating systems including
Windows, Windows Embedded, and Linux. Refer to the
detailed software compatibility section on the VersaLogic
website for complete operating system information.
Constraints for Windows 7 and Windows Embedded
7 operating systems require a platform with a
minimum of 1 GB RAM.
10
PC/104-Plus Expansion
Industry-standard ISA and PCI expansion
connectors.
11
Main Power Input
5V Input ±5%
‡ TVS protected port (enhanced ESD protection)
# Power pins are overload protected
◊ Derate -1.1°C per 305m (1,000 ft.) above 2,300m (7,500 ft.)
* For extended altitude information contact VersaLogic Sales
¤ MIL-STD-202G shock and vibe levels were used to illustrate the overall ruggedness of this product.
Certification at higher levels or different types of shock or vibration methods per the specific requirements
of the application is available. Contact VersaLogic Sales for further information.
Specifications are subject to change without notification. PC/104 and PC/104-Plus are trademarks of the
PC/104 Consortium. All other trademarks are the property of their respective owners.
8
2a
Tailor Fox to Your Exact Requirements
Customization options are available in quantities as low as 100 pieces.
Conformal Coating
Custom Labeling
BGA Underfill
BIOS Modifications
Software and Drivers
Revision Locks
Custom Screening
Application-Specific
Testing
And more –
Custom Cabling
Connector & I/O
Changes
Custom Testing
4
Back side
VersaLogic Corporation, 12100 SW Tualatin Rd., Tualatin, OR 97062 | (503) 747-2261 | info@versalogic.com | VersaLogic.com
C
O
R
P
O
R
A
T
I
O
N
Fox
Product Data Sheet
PC/104-Plus Single Board Computer
Call VersaLogic Sales at (503) 747-2261 for more information!
Memory Size
512 MB
1 GB
512 MB
1 GB
Operating Temp.
0° to +60°C
0° to +60°C
-40° to +85°C
-40° to +85°C
Cooling
Heat Sink
Heat Sink
Heat Sink
Heat Sink
Ordering Information
Model
VL-EPM-19SAK
VL-EPM-19SBK
VL-EPM-19EAK
VL-EPM-19EBK
Nominal CPU Speed
933 MHz
933 MHz
800 MHz
800 MHz
Accessories
Part Number
Cable Kit
VL-CKR-FOX
Description
Development Cable kit for EPM-19. Includes: VL-CBR-4005, 1014
(x2), 1008, 1204, 1604, 0702, and HDW-105.
Primary Breakout Cable: 12" 2mm Latching 40-pin to 40-pin
12" Pico-Clasp to dual DB-9
ATX Power Adapter Cable, RoHS
12" 12-pin Pico-Clasp / 15-pin VGA, RoHS
12” Dual Latching Ethernet16-pin Clik-Mate to 2 RJ-45, RoHS
20” SATA cable – rugged latching
0.6" standoff package (metric thread)
Expansion Modules
Part Number
Description
Network
VL-MPEe-E3E
Gigabit Ethernet adapter
VL-MPEe-FW1E 1394 FireWire Module
Serial I/O
VL-MPEe-U2E
Quad serial plus twelve GPIOs
Analog & Digital I/O
VL-MPEe-A1E
Analog input (12-bit resolution)
VL-MPEe-A2E
Analog input (16-bit resolution)
VL-SPX-1
Analog Input Module 8-Channels
VL-SPX-2
Digital I/O Module 16-lines
VL-SPX-4
Analog Output Module 4-channels 12-bit
VL-SPX-5
Solid State Switch Module 8-channel
GPS
VL-MPEu-G2E
GPS receiver
Video
VL-EPM-V7E
Video Expansion Module: VGA and LVDS
VL-MPEe-V5E
VGA and LVDS Interface
Solid-State Storage (flash memory)
VL-MPEs-F1Exx mSATA module (4/16/32 GB) (SATA)
Adapters
VL-MPEs-S3E
SATA adapter
Form Factor
Mini PCIe
Mini PCIe
Mini PCIe
Mini PCIe
Mini PCIe
SPX
SPX
SPX
SPX
Mini PCIe
PC/104-Plus
Mini PCIe
Mini PCIe
Mini PCIe
VL-CBR-4005
VL-CBR-1014
VL-CBR-1008
VL-CBR-1204
VL-CBR-1604
VL-CBR-0702
VL-HDW-105
Cables
VL-CBR-0203
6" 2-pin Latching Battery Module, RoHS
VL-CBR-0401
6.25" ATX to SATA power cable
VL-CBR-0503
0.5 m USB 2.0 Male A to Male Micro-B Cable (for ADR-01)
VL-CBR-0901
9” 9-Pin Pico-Clasp to Dual SPX Cable, RoHS
VL-CBR-2014
LVDS to VGA Adaptor Board, RoHS
VL-CBR-2015
20" 24-bit LVDS Hirose Cable, RoHS
VL-CBR-2016
20" 18-bit LVDS FPD Cable with JAE Connector, RoHS
VL-CBR-2017
20” 1-Ch LVDS 20-pin Molex to 1.25mm 20-pin Hirose, RoHS
Audio
VL-ADR-01
USB to Audio Adapter
Solid-State Storage (flash memory)
VL-F41-xxxx
microSD card (SDIO), SLC, industrial temp.
Drives
VL-HDS35-xxx
3.5” hard drive (SATA)
Hardware
VL-PS200-ATX
Bench-top / development power supply
0.6” standoffs, English thread (four per kit)
VL-HDW-106
VL-HDW-108
Mini PCIe / mSATA hardware kit (metric thread) 2.5 mm
Miscellaneous
VL-HDW-111
Half to Full Size Mini PCIe Adapter kit. Metal adapter and screws (2)
VL-HDW-203
PC/104 extractor tool (metal)
Take the Risk out of Embedded
Computing
Whether it’s selecting the optimum solution for your application,
lending expertise during development, or on-time delivery of defect-
free products, VersaLogic is here to make sure your project goes
smoothly from initial concept through the extended life of your program.
Contact us today to learn more.
Mini PCIe Modules
ISO 9001:2015 Certi ed
Copyright © 2018 VersaLogic Corporation. All rights reserved.
07/27/18
12100 SW Tualatin Rd., Tualatin, OR 97062 | (503) 747-2261 | info@versalogic.com | VersaLogic.com
C
O
R
P
O
R
A
T
I
O
N
Power technology
京公网安备 11010802033920号
EEWORLD
