0639109870 Overview

TOOL KIT

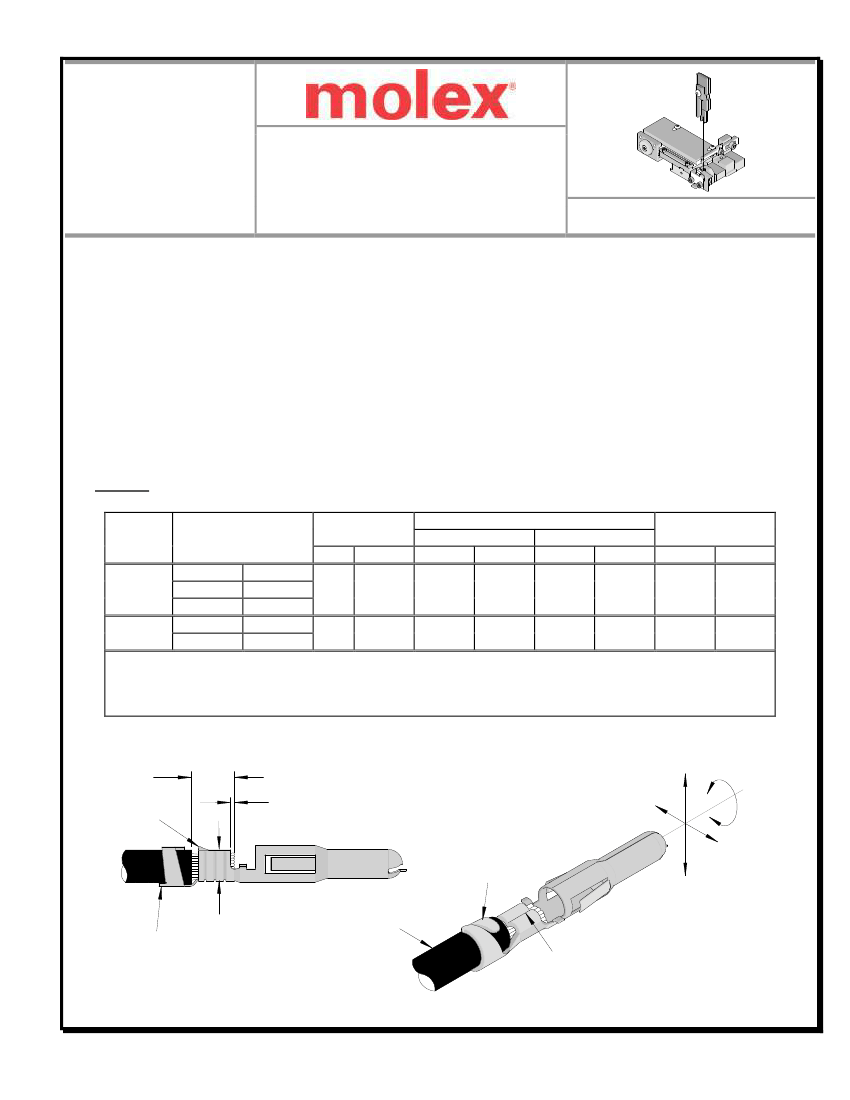

T2 Terminator MLX™ Crimp Terminal

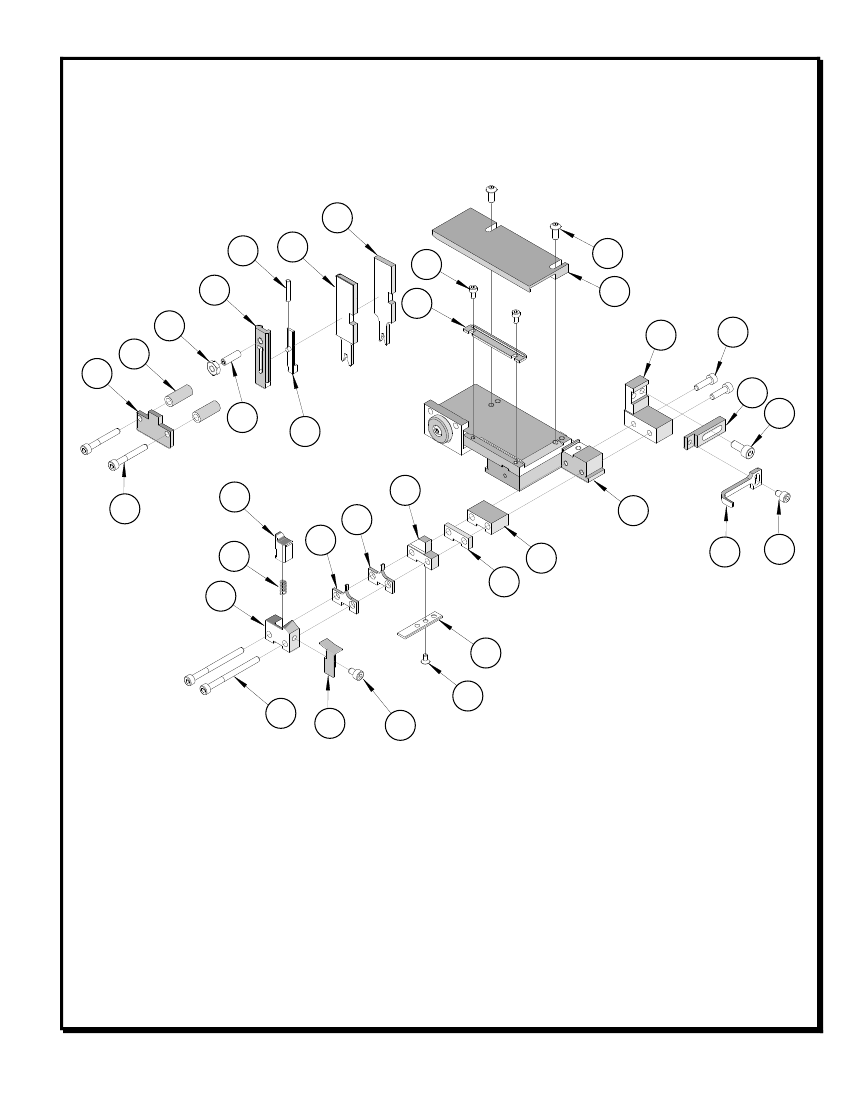

T2 Terminator
Tooling
Application Tooling
Specification Sheet
Order No. 63910-9800
FEATURES
It is ideally suited for mid-volume bench operations
This terminator can be installed in the TM42 and the TM40 press or Base Unit adapter for 3BF press
Quick punch removal with the push of a button for fast and easy tooling change
Track adjustment capabilities in the T2 Terminators for improved control of the bell mouth size and cutoff tab
length
T2 Terminator has standardized tooling with the Molex FineAdjust Applicator which will reduce your inventory
requirements
SCOPE
Products: MLX™ Crimp Terminals, 14-20 AWG.
Terminal
Series No.
Terminal Order No.
Wire Size
AWG
mm²
Insulation Diameter
IPC/WHMA-A620 (1)
Terminal (2)
mm
In.
mm
In.
Strip Length
mm
In.
02-08-2003 02-08-2009
42023
02-08-2005 02-08-2011 14-20 2.00-0.50 2.65-3.30 .104-.130 1.52-3.30 .060-.130 3.96-5.54 .156-.218
02-08-2007 02-08-2012
02-08-1001 02-08-1005
42024
14-20 2.00-0.50 2.65-3.30 .104-.130 1.52-3.30 .060-.130 3.96-5.54 .156-.218
02-08-1003 02-08-1007
1) To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
(2) Overall insulation OD specification for terminal.
To achieve optimum IPC-A620 insulation crimps for 2.08-2.50mm (.082-.098”) diameter, use Terminator 63910-7500.
To achieve optimum IPC-A620 insulation crimps for 2.41-2.95mm (.095-.116”) diameter, use Terminator 63910-9900.
DEFINITION OF TERMS
STRIP LENGTH
BELL
MOUTH
CONDUCTOR
BRUSH
INSULATION
CRIMP
BEND UP
ROLLING
TWISTING
BEND
DOWN
CONDUCTOR
CRIMP
CUT-OFF
TAB
WIRE
SEAM
Doc No: ATS-639109800
Revision: C
Release Date: 05-21-08
Revision Date: 10-11-12
UNCONTROLLED COPY
Page 1 of 6
