ATP-Tooling Kit 19027-0019
ATP
Tooling Kit
Application Tooling
Specification Sheet
Order No. 19027-0019
SCOPE
Tooling: ATP Tooling Kits used with Molex Air Tape Press: (ATP 100 and 300 series) or a Molex
Mylar Tape Applicator (MTA series). Refer to the appropriate tool instruction manual for
installation and operation information.
Products: Avikrimp™ Quick Disconnect Terminal 10-12 AWG. Refer to the Product part number charts on this
sheet for terminals with the barrel and tongue styles listed above.
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The
following charts show the UL Specifications for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate terminal from the conductor.
Color Code
Yellow
Yellow
Wire Size (AWG)
10
12
*UL - 310
80
70
*UL – 310 –Quick Disconnects, Flags, and Couplers
USE SOFT
METAL SLUG
METHOD
Use soft metal slug (solder) method to measure the
“X” dimension. Verify tooling crimp height
calibration by referring to the Go/No Go dimensions
shown in the chart below.

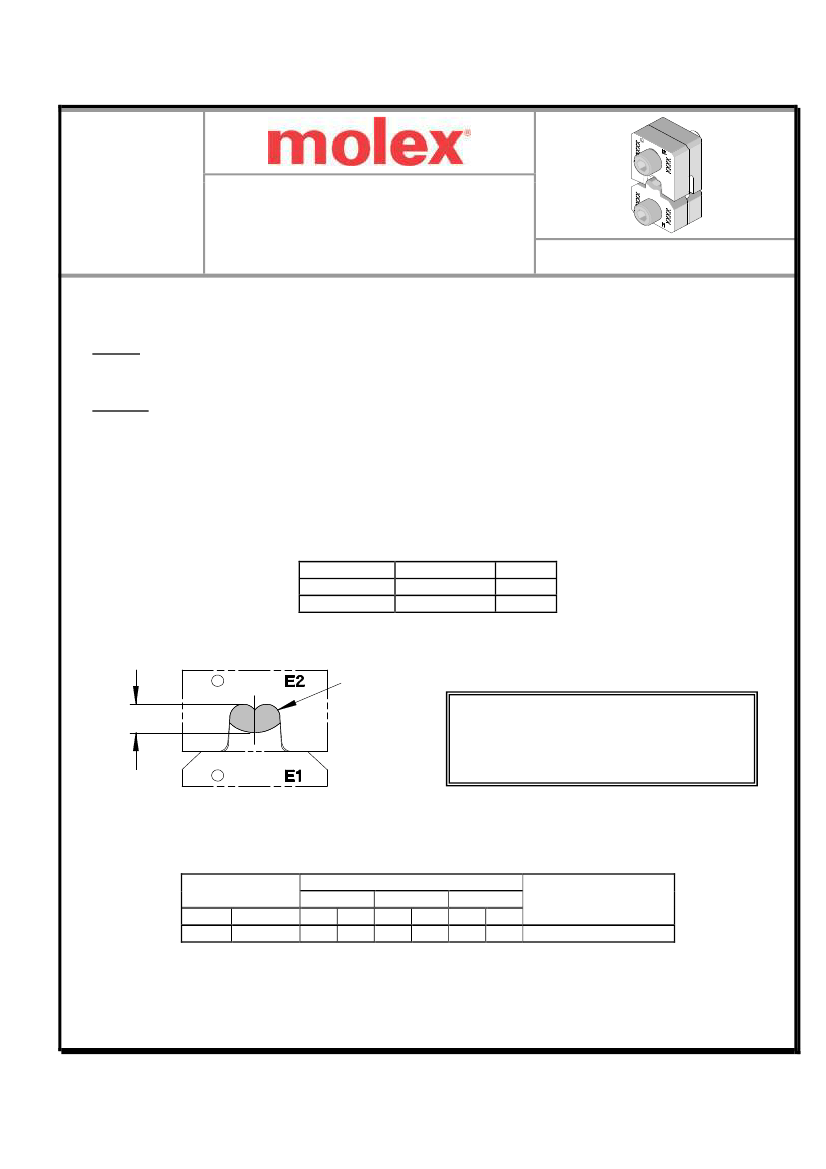

“X” (CRIMP
HEIGHT)
CRIMP PROFILE
Molex does not sell gauge pins contact your local industrial supplier.
Wire Range
AWG
10 - 12
mm²
5.00 - 3.30
“X” Dimension Conductor Crimp
Mean
Go
No Go
In
mm
In
mm
In
mm
.100 2.54 .098 2.49 .102 2.59
Crimp Inspection Marking
N/A
Doc No. ATS-190270019
Revision: C
Release Date: 01-16-04
Revision Date: 05-08-12
UNCONTROLLED COPY
Page 1 of 3
ATP-Tooling Kit 19027-0019
The following is a Partial List of the Product Part Numbers and their specifications that this tooling is designed to
crimp. We will be adding to this list and an up to date copy is available on www.molex.com.
Wire Size: 10 – 12 AWG 5.00 – 3.30mm²
Terminal
Wire Strip Length Insulation Diameter Maximum
Eng No. (REF)
In
mm
In
mm
19606-0006
.343
8.73
.230
5.84
C-5293T-LIF
.343
8.73
.233
5.92
Terminal No.
19606-0006
19277-0009

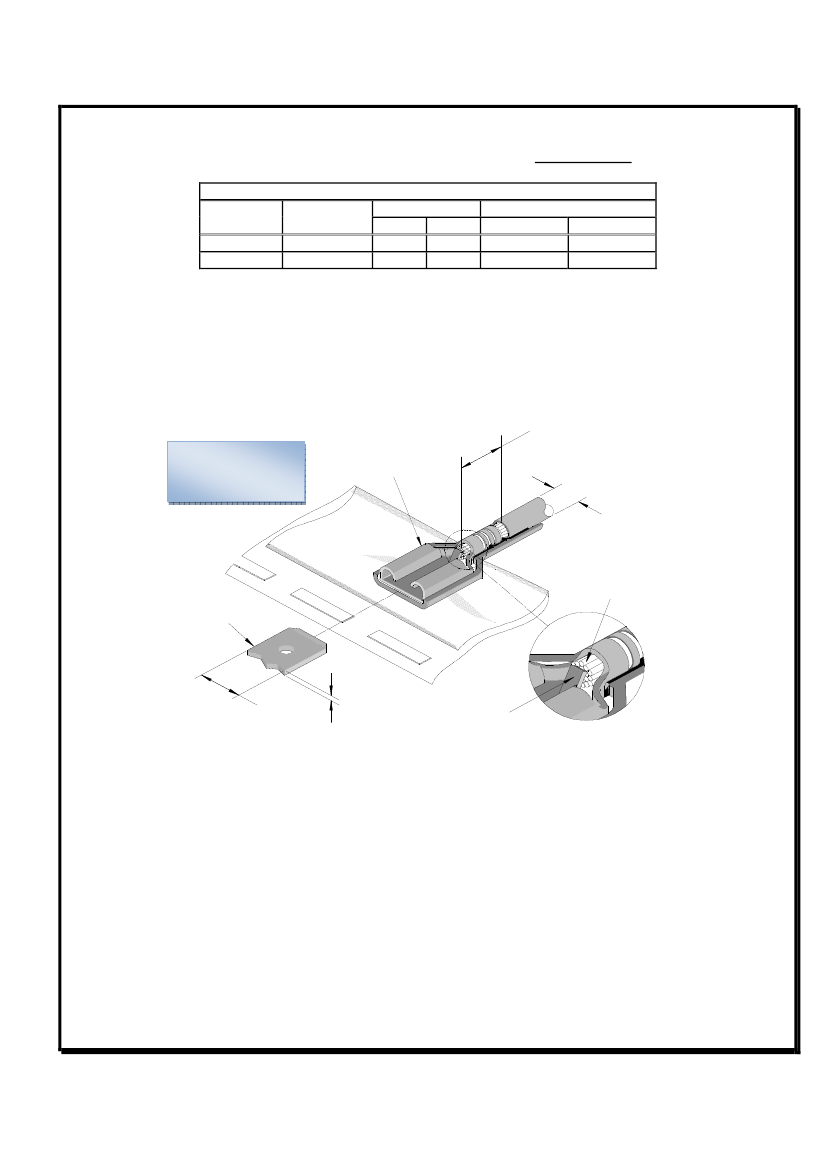

DEFINITION OF TERMS
The following illustrations are a generic terminal representation and not an exact image of any terminal listed in
the scope.
STRIP LENGTH
Fully Insulated
Male and Female
Quick Disconnect
FEMALE QD
MWID OR
MAX INSULATION
DIAMETER
BRUSH
MALE QD
REF
TAB
SIZE
Figure 1
TAB SIZE
WIRE STOP
Doc No. ATS-190270019
Revision: C
Release Date: 01-16-04
Revision Date: 05-08-12
UNCONTROLLED COPY
Page 2 of 3
ATP-Tooling Kit 19027-0019

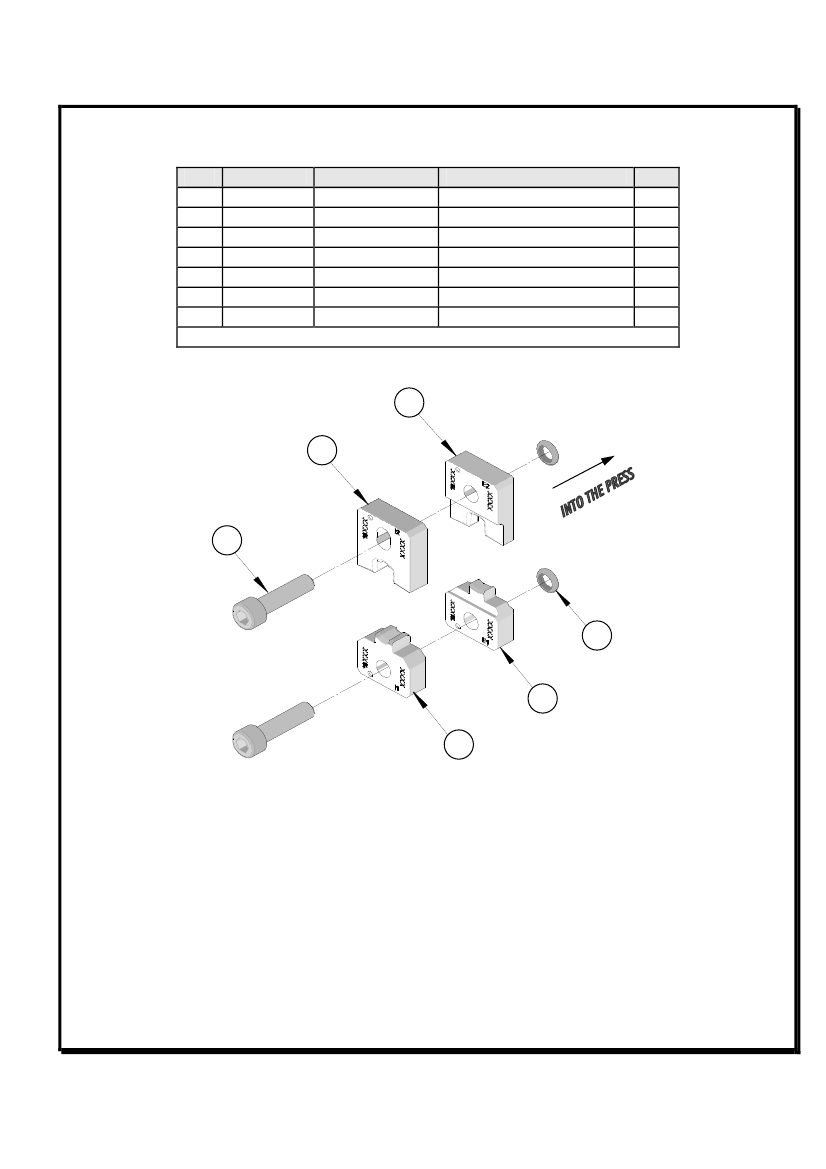

Parts List
Order No.
Engineering No.
Description
Qty
19027-0019
19027-0019
ATP Tooling Kit
REF
1
19027-0020
19027-0020
Conductor Punch
1
2
19027-0021
19027-0021
Conductor Anvil
1
3
19027-0022
19027-0022
Insulation Punch
1
4
19027-0023
19027-0023
Insulation Anvil
1
5
N/A
N/A
#10-32 by 7/8” Long SHCS
2**
6
N/A
N/A
O-ring 1/16 W. by 9/32” O.D.
2**
** Available from an industrial supply company such as MSC (1-800-645-7270).
Item
1
3
5
(2)
6
(2)
2
4
Visit our Web site at http://www.molex.com
Doc No. ATS-190270019
Revision: C
Release Date: 01-16-04
Revision Date: 05-08-12
UNCONTROLLED COPY
Page 3 of 3
