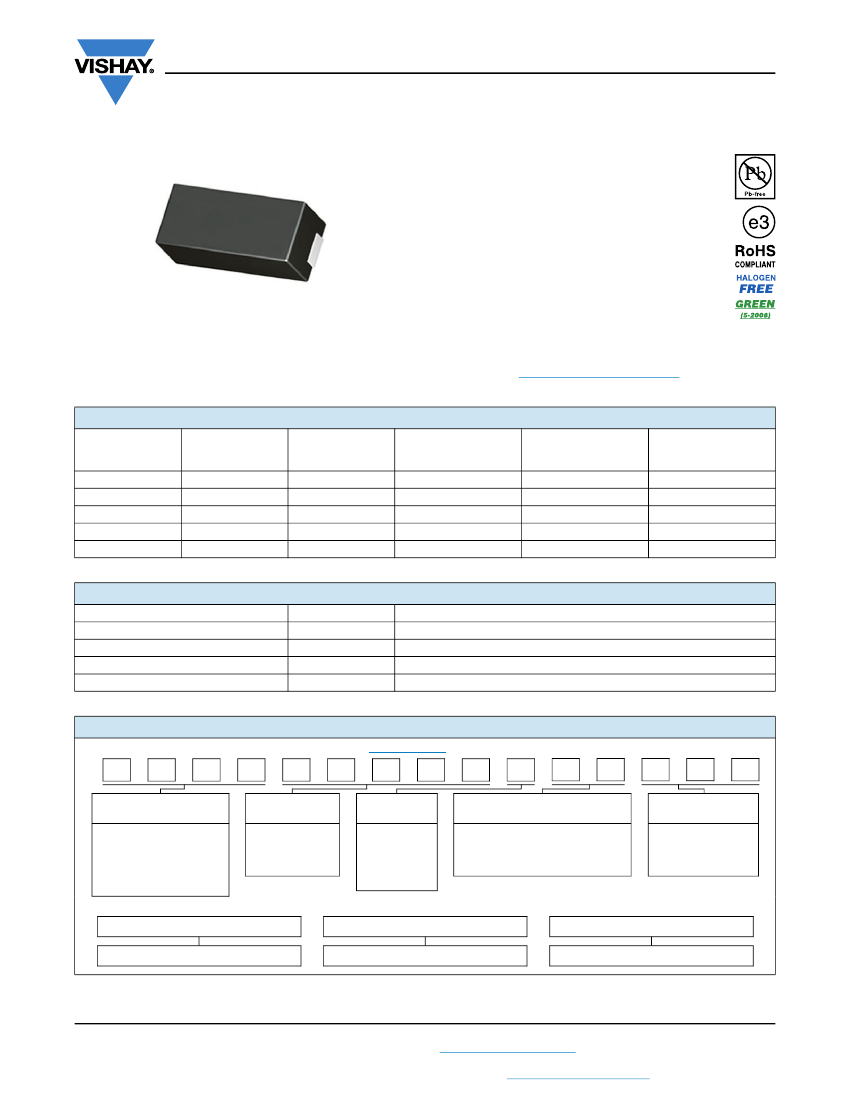

SM
www.vishay.com
Vishay Huntington
Wirewound Resistors, Precision Power, Surface Mount
FEATURES
• All welded construction
• Molded encapsulation
• Wraparound terminations
• Excellent stability at different environmental
conditions
• High power ratings (up to 4 W)
• Available in non-inductive styles (“NI”
SPECIAL)
with
Ayrton-Perry
winding
(Resistance max. value is one half standard
value)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
SM-1
SM-2
SM-3
SM-4
SM-5
HISTORICAL
MODEL
SM1
SM2
SM3
SM4
SM5
POWER RATING
P
70 °C
W
0.5
1
3
2
4
RESISTANCE
RANGE
0.1 to 400
0.1 to 3K
0.1 to 25K
0.1 to 15K
0.1 to 50K
TOLERANCE
±%
0.1, 0.25, 0.5, 1, 5
0.1, 0.25, 0.5, 1, 5
0.1, 0.25, 0.5, 1, 5
0.1, 0.25, 0.5, 1, 5
0.1, 0.25, 0.5, 1, 5
WEIGHT (TYPICAL)
g/1000 PIECES
45
230
1360
680
2040
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Dielectric Withstanding Voltage
Operating Temperature Range
Maximum Working Voltage
UNIT
ppm/°C
V
AC
°C
V
SM RESISTOR CHARACTERISTICS
± 20 > 10
,
± 50 1
to 10
,
contact factory for 0.99
and below
1000
-55 to +275
(P x
R)
1/2
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: SM-2R4000FE6
(visit
www.vishay.net
SAP parts manual for all options)
S
M
-
2
R
VALUE
(5 digits)
R
= Decimal
K
= Thousand
1R500
= 1.5
4K000
= 4 k
4
0
0
0
F
E
6
SPECIAL
(up to 3 digits)
(Dash Number)
From
1
to
999
as applicable
NI
= Non-inductive
GLOBAL MODEL
(4 digits)
SM-1
SM-2
SM-3
SM-4
SM-5
TOLERANCE
(1 digit)
B
= ± 0.1 %
C=
± 0.25 %
D
= ± 0.5 %
F
=±1%
J
= ± 5%
PACKAGING CODE
(2 digits)
E6
= lead (Pb)-free,
7" tape and reel pack
E7
= lead (Pb)-free,
13" tape and reel pack
Historical Part Number example: SM2-0.4-1%
SM2
HISTORICAL MODEL
0.4
RESISTANCE VALUE
1%
TOLERANCE
Revision: 06-Apr-18
Document Number: 31812
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SM
www.vishay.com
DIMENSIONS
in inches [millimeters]
L
T
c
Vishay Huntington
+
W
b
H
W1
a
GLOBAL
MODEL
SM-1
SM-2
SM-3
SM-4
SM-5
DIMENSIONS
in inches [millimeters]
L ± 0.015
[0.381]
0.190 [4.83]
0.260 [6.60]
0.625 [15.88]
0.450 [11.43]
0.820 [20.83]
W ± 0.015
[0.381]
0.130 [3.30]
0.155 [3.94]
0.270 [6.86]
0.250 [6.35]
0.295 [7.49]
H ± 0.015
[0.381]
0.110 [2.79]
0.125 [3.18]
0.250 [6.35]
0.180 [4.57]
0.305 [7.75]
W1 ± 0.015
[0.381]
0.060 [1.52]
0.070 [1.78]
0.120 [3.05]
0.120 [3.05]
0.150 [3.81]
T ± 0.015
[0.381]
0.040 [1.02]
0.070 [1.78]
0.135 [3.43]
0.100 [2.54]
0.190 [4.83]
SOLDER PAD DIMENSIONS
a ± 0.015
[0.381]
0.062 [1.57]
0.096 [2.44]
0.200 [5.08]
0.155 [3.94]
0.220 [5.59]
b ± 0.015
[0.381]
0.100 [2.54]
0.112 [2.84]
0.150 [3.81]
0.230 [5.84]
0.250 [6.35]
c ± 0.015
[0.381]
0.250 [6.35]
0.337 [8.56]
0.700 [17.78]
0.540 [13.72]
0.900 [22.86]
MATERIAL SPECIFICATIONS
Element:
copper-nickel alloy
Encapsulation:
molded epoxy
Core:
ceramic
Terminal:
matte tin
Part Marking:
HEI, model, value, tolerance, date code
Note
• Due to resistor size limitations some resistors will have minimal
information marked on parts
DERATING
RATED POWER IN %
120
100
80
60
40
20
0
- 55
0
50
70
100
150
200
250
300
350
AMBIENT TEMPERATURE IN °C
PERFORMANCE
TEST
Thermal Shock
Short Time Overload
Low Temperature Storage
Load Life
Resistance to Solder Heat
Moisture Resistance
5x rated power for 5 s
-55 °C for 24 h
1000 h at rated power, +70 °C, 1.5 h “ON”, 0.5 h “OFF”
MIL-STD 202; 260 °C, 10 s
Per MIL-STD 202
CONDITIONS OF TEST
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
TEST LIMITS
± 0.5 % + 0.05
± 0.5 % + 0.05
± 0.5 % + 0.05
± 1.0 % + 0.05
± 0.5 % + 0.05
± 1.0 % + 0.05
PACKAGING
MODEL
SM-1
SM-2
SM-3
SM-4
SM-5
Revision: 06-Apr-18
REEL
TAPE WIDTH
12 mm/embossed plastic
16 mm/embossed plastic
24 mm/embossed plastic
24 mm/embossed plastic
32 mm/embossed plastic
DIAMETER
178 mm/7"
330 mm/13"
178 mm/7"
330 mm/13"
178 mm/7"
330 mm/13"
178 mm/7"
330 mm/13"
178 mm/7"
330 mm/13"
PIECES/REEL
650
3000
600
2000
125
500
250
1000
180
500
PACKAGE CODE
E6
E7
E6
E7
E6
E7
E6
E7
E6
E7
Document Number: 31812
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
