142-1731-026 datasheet, PDF - EEWORLD Datasheet

142-1731-026: DescriptionRF SMA Connector, Female, Receptacle; CategoryThe connector The connector; File Size714KB，3 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

142-1731-026 Overview

RF SMA Connector, Female, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.28
Base Number Matches	1

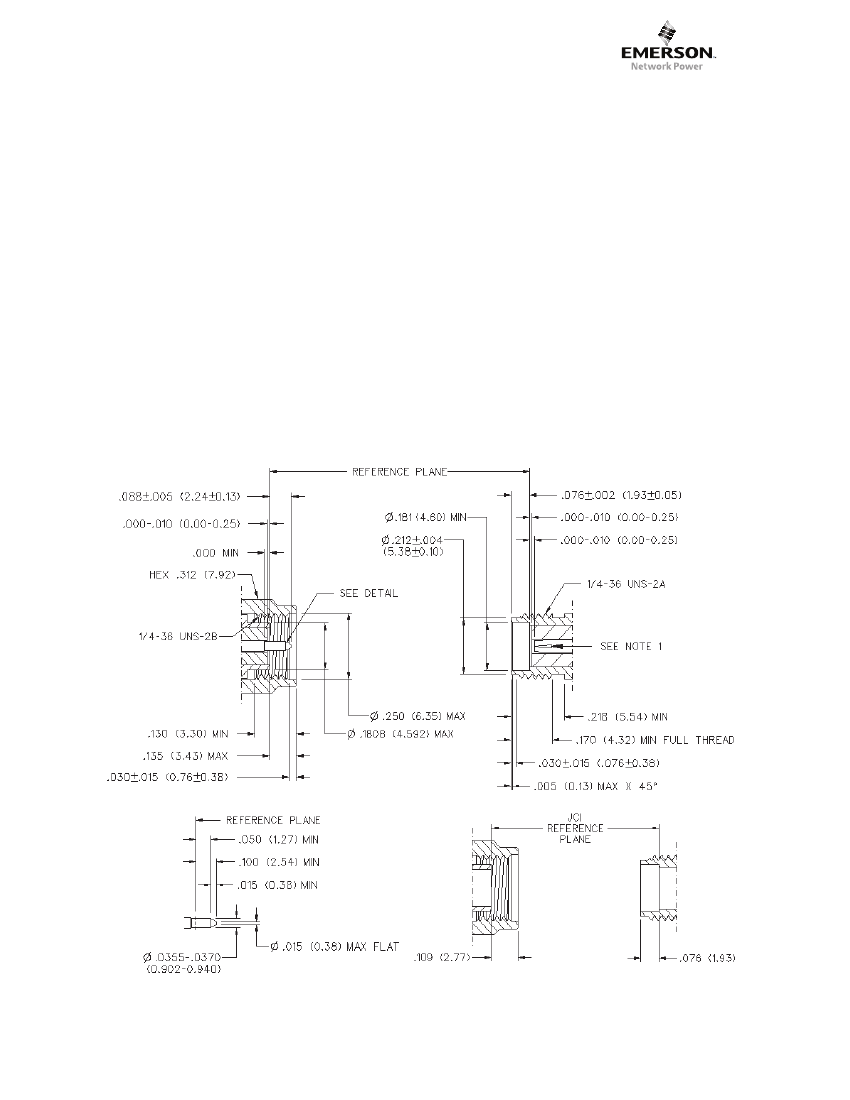

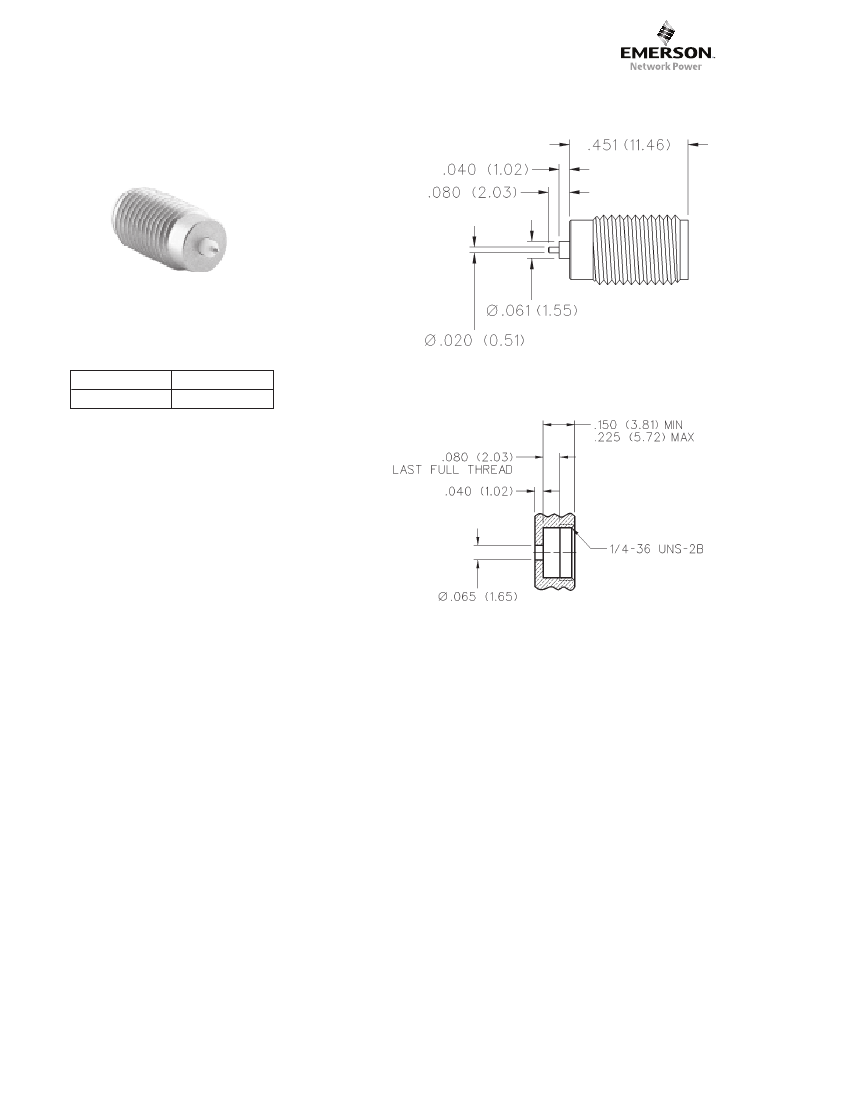

50 Ohm SMA Spark Plug

Jack Receptacle - Thread Mount

Extended Dielectric (Non-hermetic)

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

GOLD PLATED

142-1731-021

NICKEL PLATED

142-1731-026

Mounting hole layout

Emerson Network Power Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com

	142-1731-026	142-1731-021
Description	RF SMA Connector, Female, Receptacle	RF SMA Connector, Female, Receptacle
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD (30)
Contact point gender	FEMALE	FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PTFE FLUOROCARBON/PFA	PTFE FLUOROCARBON/PFA
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	SMA	SMA
Installation method	STRAIGHT	STRAIGHT
Maximum operating frequency	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
voltage standing wave ratio	1.28	1.28
Base Number Matches	1	1
