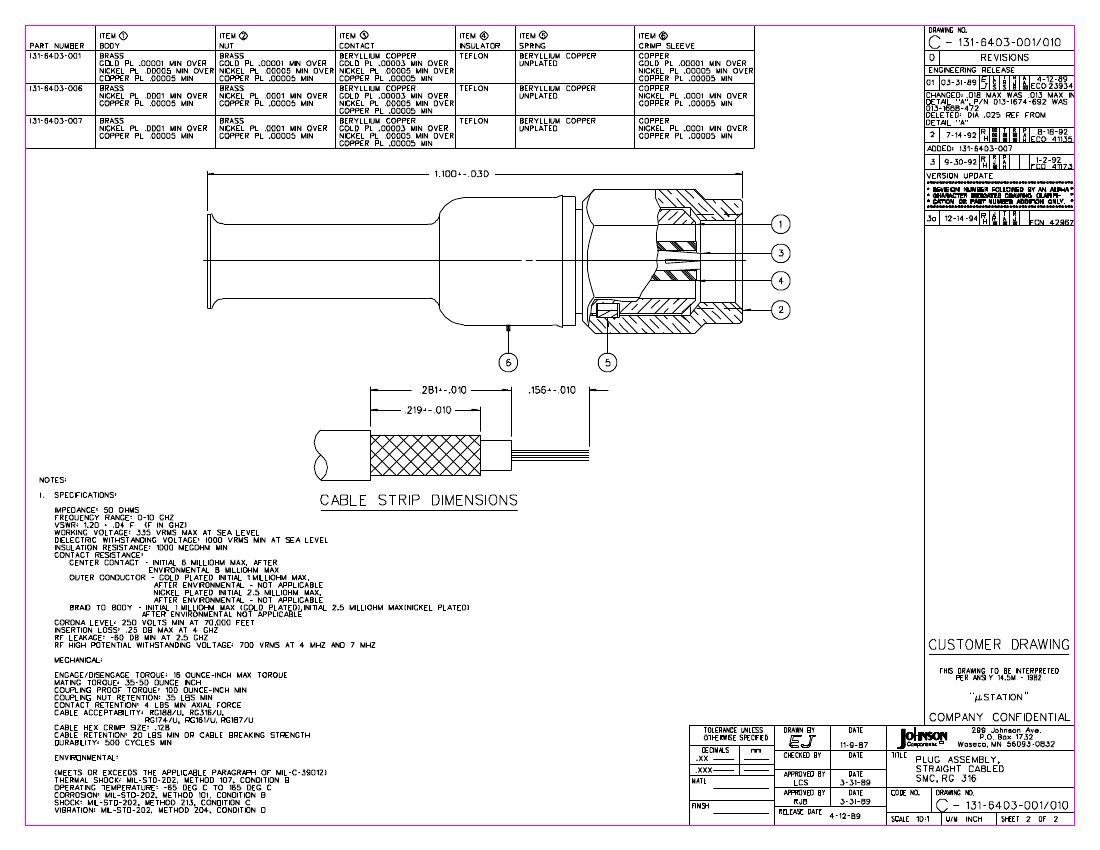

Preview

131-6403-001: DescriptionRF SMC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

131-6403-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	131-6403-001	-	-	View	Buy Now

131-6403-001 Overview

RF SMC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Plug,

131-6403-001 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 161/U; RG 174; RG 188; RG 316, INSERTION LOSS MAX AT 4 GHZ, CAPTIVE CONTACT
subject depth	0.545 inch
Body/casing type	PLUG
Cable type	RG-316
Characteristic impedance	50 Ω
Connector type	RF SMC CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact resistance	6 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.448 N
Insertion loss	0.25 dB
Insulation resistance	1000000000 Ω
insulator material	PTFE FLUOROCARBON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMC
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	10 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BERYLLIUM COPPER
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.6
Evacuation force-minimum value	4.448 N
Base Number Matches	1

Preview

Download Datasheet

View All

131-6403-001 Related Products

	131-6403-001	131-6403-101
Description	RF SMC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Plug,	RF SMC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug,
Reach Compliance Code	unknow	unknow
Other features	APPLICABLE CABLES: RG 161/U; RG 174; RG 188; RG 316, INSERTION LOSS MAX AT 4 GHZ, CAPTIVE CONTACT	APPLICABLE CABLES: RG 161/U; RG 174; RG 188; RG 316, INSERTION LOSS MAX AT 4 GHZ, CAPTIVE CONTACT
subject depth	0.545 inch	0.53 inch
Body/casing type	PLUG	PLUG
Cable type	RG-316	RG-316
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMC CONNECTOR	RF SMC CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD (30)
Contact point gender	FEMALE	FEMALE
Contact resistance	6 mΩ	16 mΩ
Contact style	COAX	COAX
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.25 dB	0.5 dB
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	PTFE FLUOROCARBON	PTFE FLUOROCARBON
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	SMC	SMC
Installation method	STRAIGHT	RIGHT ANGLE
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	10 GHz	10 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
reliability	COMMERCIAL	COMMERCIAL
Shell surface	GOLD OVER NICKEL	GOLD
Shell material	BERYLLIUM COPPER	BRASS
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
voltage standing wave ratio	1.6	1.7
Base Number Matches	1	1
