Printed-circuit board connector - PTS 1,5/ 9-PH-5,0 - 1805588
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 10 A, Rated voltage (III/2): 400 V, Number of positions: 9, Pitch: 5 mm,
Connection method: Spring-cage connection, Color: green, Contact surface: Tin
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
5.4 GRM
85366990
Germany
Technical data
Dimensions
Pitch
Dimension a
5 mm
40 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Nominal cross section
Insulating material
Inflammability class according to UL 94
PTS 1,5/..-PH
I
4 kV
4 kV
4 kV
250 V
400 V
600 V
10 A
1.5 mm²
PA
V0
10/30/2014 Page 1 / 3
https://www.phoenixcontact.com/us/products/1805588
Printed-circuit board connector - PTS 1,5/ 9-PH-5,0 - 1805588
Technical data
General
Stripping length
Number of positions
8 mm
9
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
1.5 mm²
0.25 mm² 1
1 mm²
26
14
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27141109
27141190
27141190
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
34131203
39121432
39121432
10/30/2014 Page 2 / 3
https://www.phoenixcontact.com/us/products/1805588
Printed-circuit board connector - PTS 1,5/ 9-PH-5,0 - 1805588
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
UL / null / VDE / null / cUL / null
Approval details
GOST

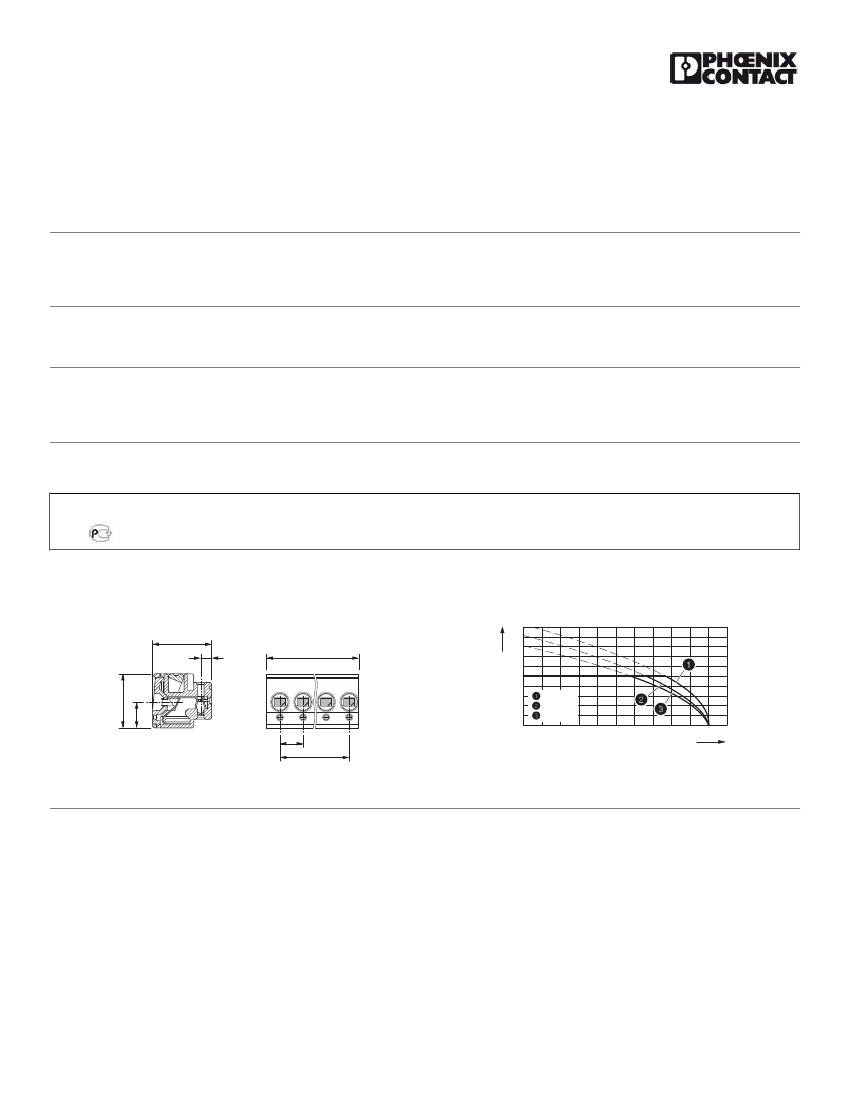

Drawings
Dimensioned drawing
12,8
2,35
a+5
Current strength [A]
Diagram
20
16
12
8
4
= 2-pos.
= 5-pos.
= 12-pos.
0
20
40
60
80
100
11,7
5,6
0
5
a
Ambient temperature [°C]
Type: PTS 1,5/...-PH-5,0 with PST 1,3/...-5,0
Phoenix Contact 2014 © - all rights reserved
