Feed-through terminal block - PT 4/1P OG - 3212008
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

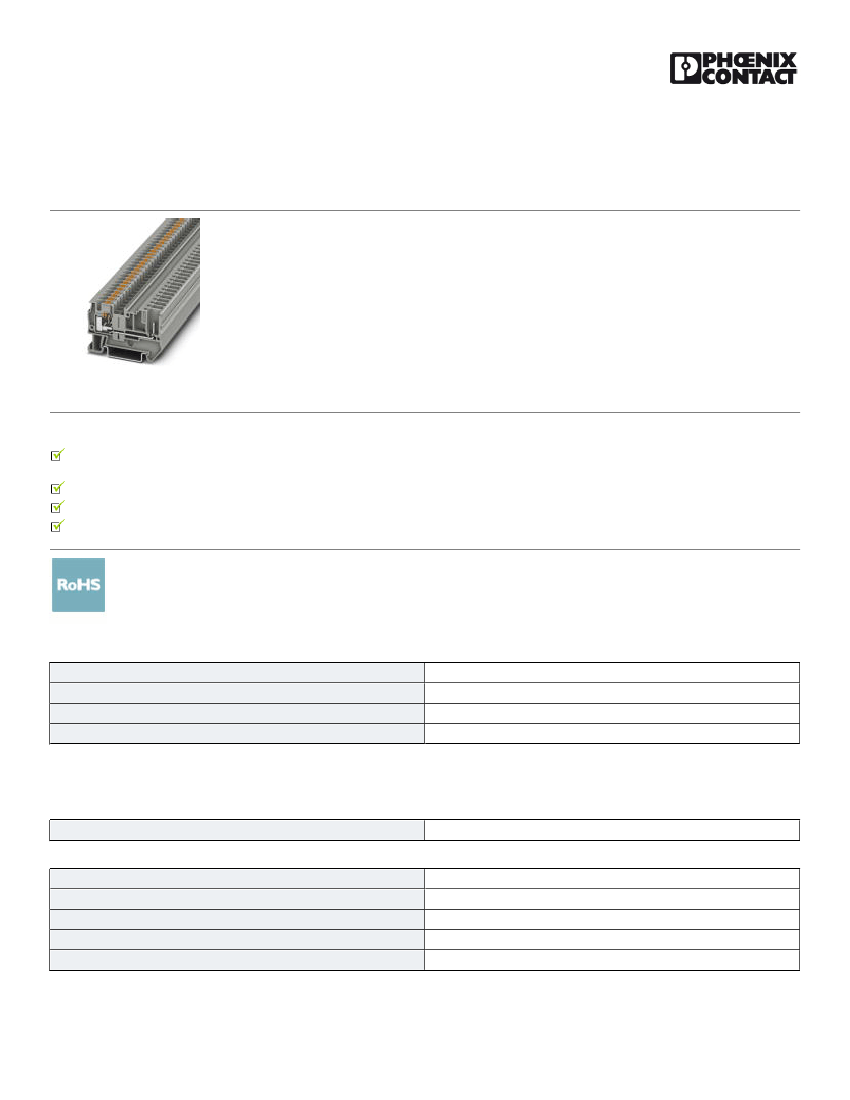

Feed-through terminal block, Connection method: Push-in / plug connection, Cross section: 0.2 mm² - 6 mm²,
AWG: 24 - 10, Width: 6.2 mm, Color: orange, Mounting type: NS 35/7,5, NS 35/15
The illustration shows the version in
gray
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
50 STK
85369010
Poland
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
1
2
1
4 mm²
orange
09/06/2016 Page 1 / 28
https://www.phoenixcontact.com/us/products/3212008
Feed-through terminal block - PT 4/1P OG - 3212008
Technical data
General
Insulating material
Flammability rating according to UL 94
Area of application
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
8 kV
3
III
I
32 A (with 6 mm² conductor cross section)
32 A
800 V
Yes
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
56 mm
36.5 mm
44 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Push-in / plug connection
IEC 61984
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
24
12
0.25 mm²
4 mm²
0.25 mm²
4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
09/06/2016 Page 2 / 28
https://www.phoenixcontact.com/us/products/3212008
Feed-through terminal block - PT 4/1P OG - 3212008
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
10 mm ... 12 mm
A4
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 61984
V0
Drawings
Circuit diagram
Current strength [A]
35
30
25
20
15
10
5
0
0
20
40
60
80
100
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 10-pos.
= 15-pos.
Diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141131
27141131
27141134
27141134
27141134
27141134
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001283
EC001283
EC001283
EC000897
09/06/2016 Page 3 / 28
https://www.phoenixcontact.com/us/products/3212008
Feed-through terminal block - PT 4/1P OG - 3212008
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / LR / EAC / BV / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-10
28 A
600 V
C
24-10
28 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-10
28 A
600 V
C
24-10
28 A
600 V
LR http://www.lr.org/en 14/20057
EAC EAC-Zulassung
09/06/2016 Page 4 / 28
https://www.phoenixcontact.com/us/products/3212008
Feed-through terminal block - PT 4/1P OG - 3212008
Approvals
BV http://www.veristar.com/wps/portal/!ut/p/_s.7_0_A/7_0_RIM 39979/A0 BV
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm

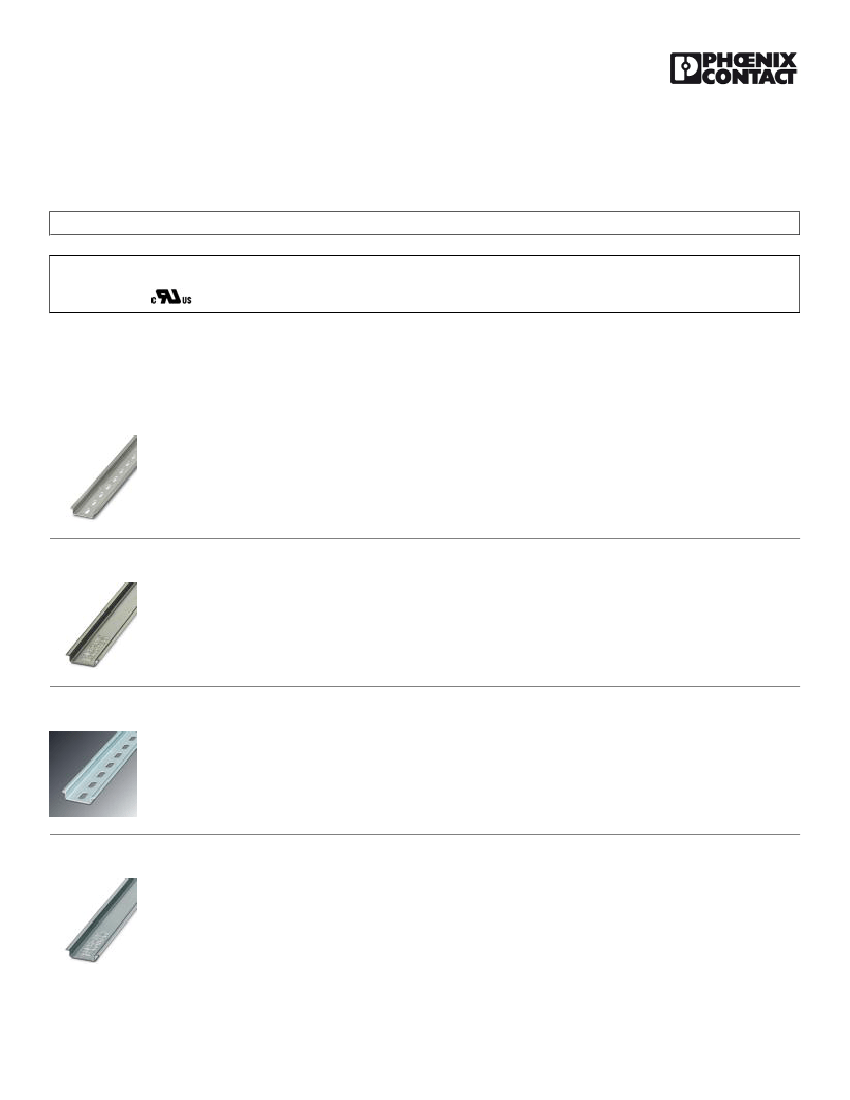

Accessories
Accessories
DIN rail
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail perforated - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
09/06/2016 Page 5 / 28
