ESLT06150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> ESLT06150

ESLT06150: DescriptionCONN TERM BLK 6POS 5MM R/A BK; CategoryThe connector; File Size301KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

ESLT06150 Overview

CONN TERM BLK 6POS 5MM R/A BK

ESLT06150 Parametric

Parameter Name	Attribute value
Number of levels	2
Number of pins per level	3
spacing	0.197"（5.00mm）
Mating direction	Horizontal, with board
current	13.5A
Voltage	300V
Wire gauge	14-30 AWG
Installation type	Through hole
wire termination	Screws - Lift Cage Clamp
characteristic	Interlocking (side)
color	black
Operating temperature	-40°C ~ 110°C
Shell material	Polyamide (PA66), Nylon 6/6
Contact material - plating	Copper alloy, tin plated
Fixture Material - Plating	Copper Alloy - Nickel Plated
Screw material - coating	Copper Alloy - Nickel Plated
Torque - Screws	0.5 Nm（4.4 Lb-In）
Thread	-

Preview

Download Datasheet

View All

.200"

(5.08mm)

5.0mm

(.197")

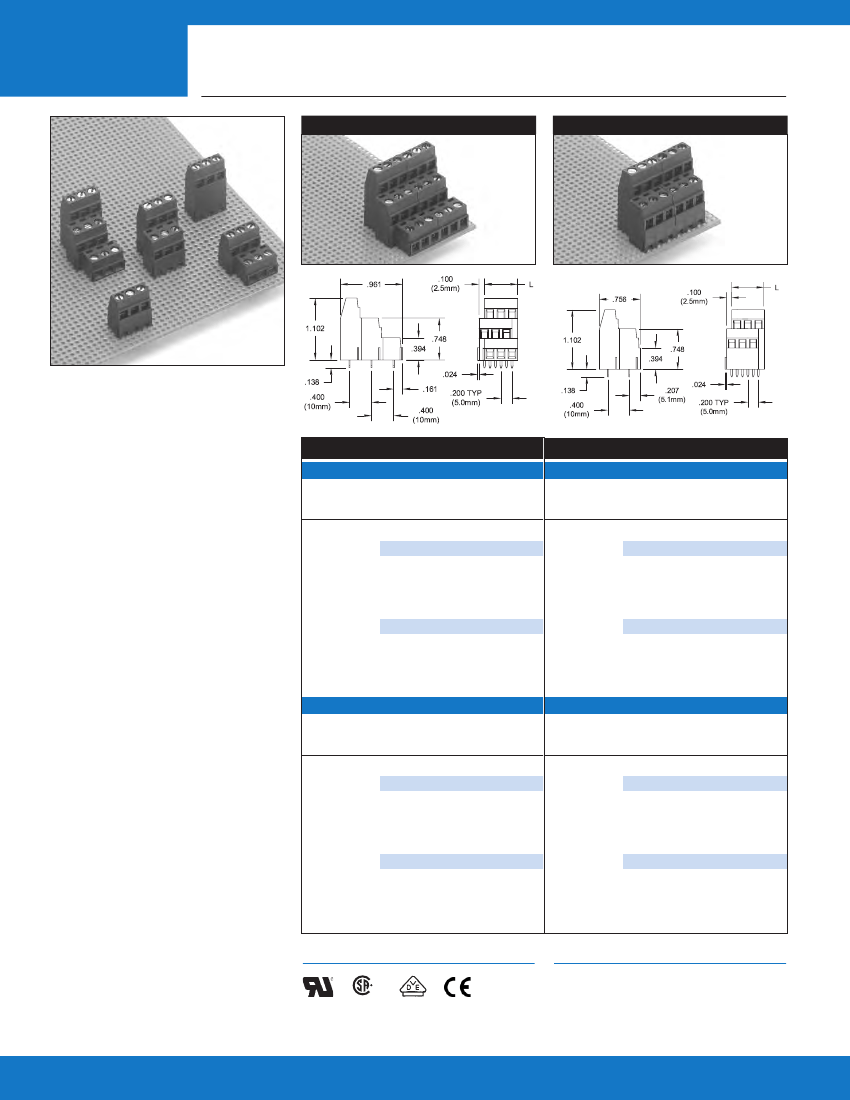

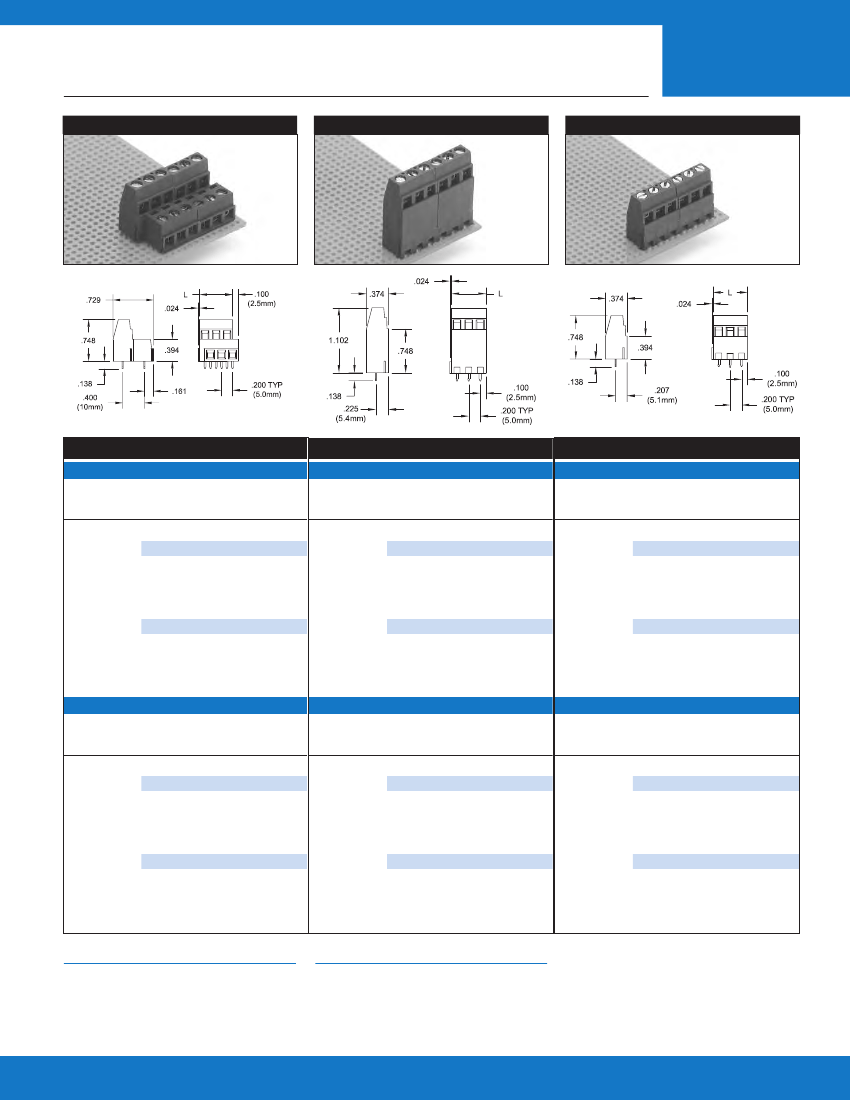

ESLT Multi-Tier Terminal Blocks

Low-Profile Modular Assembly

3-Tier

2nd / 3rd Tiers

Enhanced Density

Multi-tier, .200"/5.0mm spacing ter-

minal blocks are rated at 13.5A and

combine low profile with the

enhanced board density provided by

the multi-tier design. Moving cage

clamp wire termination ensures high

reliability.

Interlocking Modules

Blocks range to 3 tiers high and are

are available in five different configu -

rations: full (3 tiers), 2nd/3rd tier,

1st/2nd tier, 2nd-tier-only and 3rd-

tier-only. Each configuration consists

of 2- and 3-position-wide modules

with interlocking dovetails. Modules

can be easily assembled to length.

Users have the option of purchasing

and stocking only the 2- and 3-posi -

tion modules, and assembling to size

in-house, in order to minimize inven-

tory and maintain flexibility; or

ordering product already assembled

to size.

Modules are also back-to-front stack-

able for maximum system flexibility

with a minimum number of different

modules. A 1st/2nd tier module, for

example, can be placed on a board

in front of a 3-tier -only module.

Available in black only.

Pos

Catalog #

Pos

Catalog #

.200" Pitch

Modules

Assemblies

ESLT06260

ESLT09260

ESLT12260

ESLT15260

ESLT18260

ESLT21260

ESLT24260

ESLT27260

ESLT30260

ESLT33260

ESLT36260

5mm Pitch

.400"

.600"

.800"

1.000"

1.200"

1.400"

1.600"

1.800"

2.000"

2.200"

2.400"

Assemblies

Modules

ESLT04250

ESLT06250

ESLT08250

ESLT10250

ESLT12250

ESLT14250

ESLT16250

ESLT18250

ESLT20250

ESLT22250

ESLT24250

5mm Pitch

.400"

.600"

.800"

1.000"

1.200"

1.400"

1.600"

1.800"

2.000"

2.200"

2.400"

Modules

Assemblies

APPROVALS:

ESLT06160

ESLT09160

ESLT12160

ESLT15160

ESLT18160

ESLT21160

ESLT24160

ESLT27160

ESLT30160

ESLT33160

ESLT36160

10.2mm

15.2mm

20.3mm

25.4mm

30.5mm

35.6mm

40.6mm

45.7mm

50.8mm

55.9mm

61.0mm

Assemblies

Modules

SPECIFICA TIONS:

ESLT04150

ESLT06150

ESLT08150

ESLT10150

ESLT12150

ESLT14150

ESLT16150

ESLT18150

ESLT20150

ESLT22150

ESLT24150

10.2mm

15.2mm

20.3mm

25.4mm

30.5mm

35.6mm

40.6mm

45.7mm

50.8mm

55.9mm

61.0mm

Amphenol Pcd

Current Rating:

13.5A

Operating Voltage:

300V

Insulation Resistance:

>10

Megohms

Contact Resistance:

<15milliohms

Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
