150D565X9020B2TE3 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 150D565X9020B2TE3

150D565X9020B2TE3: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 5.6 uF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size125KB，12 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

150D565X9020B2TE3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	150D565X9020B2TE3	-	-	View	Buy Now

150D565X9020B2TE3 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 5.6 uF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

150D565X9020B2TE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1652067934
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	6.95
capacitance	5.6 µF
Capacitor type	TANTALUM CAPACITOR
diameter	4.7 mm
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.001 mA
length	12.04 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR, 13 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
surface mount	NO
Delta tangent	0.04
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

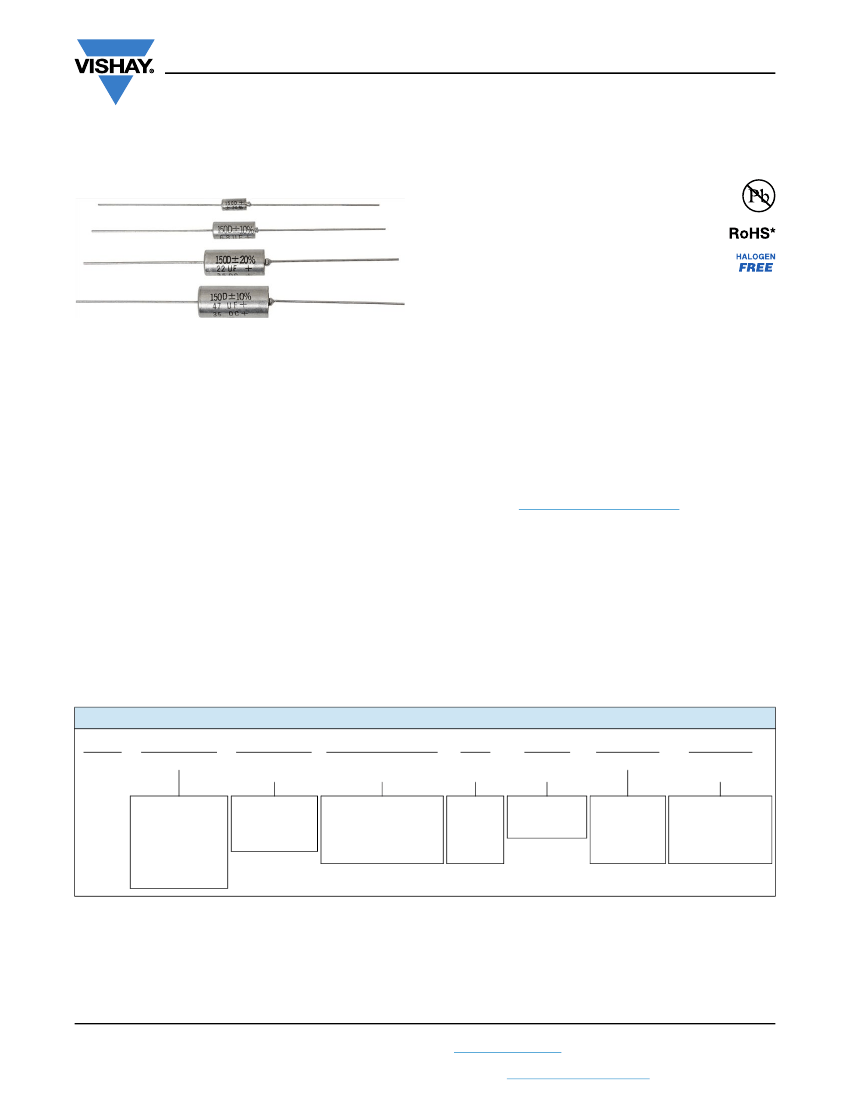

150D

www.vishay.com

Vishay Sprague

Solid-Electrolyte T

ANTALEX

™ Capacitors,

Hermetically-Sealed, Axial-Lead

FEATURES

• Terminations: tin / lead (SnPb),

100 % tin (RoHS-compliant)

• These high performance, hermetically-sealed

ANTALEX

capacitors have set the standard for

solid-electrolyte tantalum capacitors for more

than three decades

Available

• High capacitance, low DCL, low dissipation factor and

exceptional operating stability

PERFORMANCE CHARACTERISTICS

Operating Temperature:

-55 °C to +125 °C

(above 85 °C, voltage derating is required)

Capacitance Tolerance:

at 120 Hz, +25 °C

± 20 %, ± 10 % standard. ± 5 % available as special

Dissipation Factor:

at 120 Hz, +25 °C

DC Leakage Current (DCL Max.):

at +25 °C:

leakage current shall not exceed the values listed

in the Standard Ratings table

at +85 °C:

leakage current shall not exceed 10 times the

values listed in the Standard Ratings table

at +125 °C:

leakage shall not exceed 15 times the values

listed in the Standard Ratings table

Life Test:

capacitors shall withstand rated DC voltage

applied at +85 °C for 2000 h or derated DC voltage applied

at +125 °C for 1000 h

Following the life test:

1. DCL shall not exceed 125 % of the initial requirement

2. Dissipation factor shall meet the initial requirement

3. Change in capacitance shall not exceed ± 5 %

• Performance and reliability have been proven

commercial, industrial and military applications

• Available in four case codes and capacitors and are

supplied with plastic-film insulation

• Terminals are solid, tinned nickel wire leads

• The military equivalent of the 150D is the M39003/01 (style

CSR13) which is qualified to MIL-PRF-39003/1

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

ORDERING INFORMATION

150D

MODEL

224

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

X5 = ± 5 % *

* Special order

006

DC VOLTAGE RATING

AT 85 °C

This is expressed in

volts. To complete the

three-digit block,

zeros precede the

voltage rating.

CASE

CODE

See

Ratings

and Case

Codes

table

STYLE

NUMBER

0 = no sleeve

2 = insulated

sleeve

PACKAGING

RoHS-

COMPLIANT

E3 = 100 % tin

termination

(RoHS-compliant)

Blank = SnPb

termination

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third

is the number of

zeros to follow.

B = bulk

T = tape

and reel

G = ammo

pack

Revision: 16-Nov-17

Document Number: 40015

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

150D565X9020B2TE3 Related Products

	150D565X9020B2TE3	150D226X9035R2G	150D685X9035B2GE3
Description	CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 5.6 uF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT	CAP TANT 22UF 10% 35V AXIAL	CAP TANT 6.8UF 10% 35V AXIAL
capacitance	5.6 µF	22µF	6.8µF
Tolerance	-	±10%	±10%
Voltage - Rated	-	35V	35V
type	-	seal	seal
Operating temperature	-	-55°C ~ 125°C	-55°C ~ 125°C
Service life at different temperatures	-	1000 hours at 125°C	1000 hours at 125°C
Installation type	-	Through hole	Through hole
Package/casing	-	Axial	Axial
size/dimensions	-	0.289" diameter x 0.686" length (7.34mm x 17.42mm)	0.185" diameter x 0.474" length (4.70mm x 12.04mm)
Manufacturer size code	-	R	B
characteristic	-	Universal	Universal
