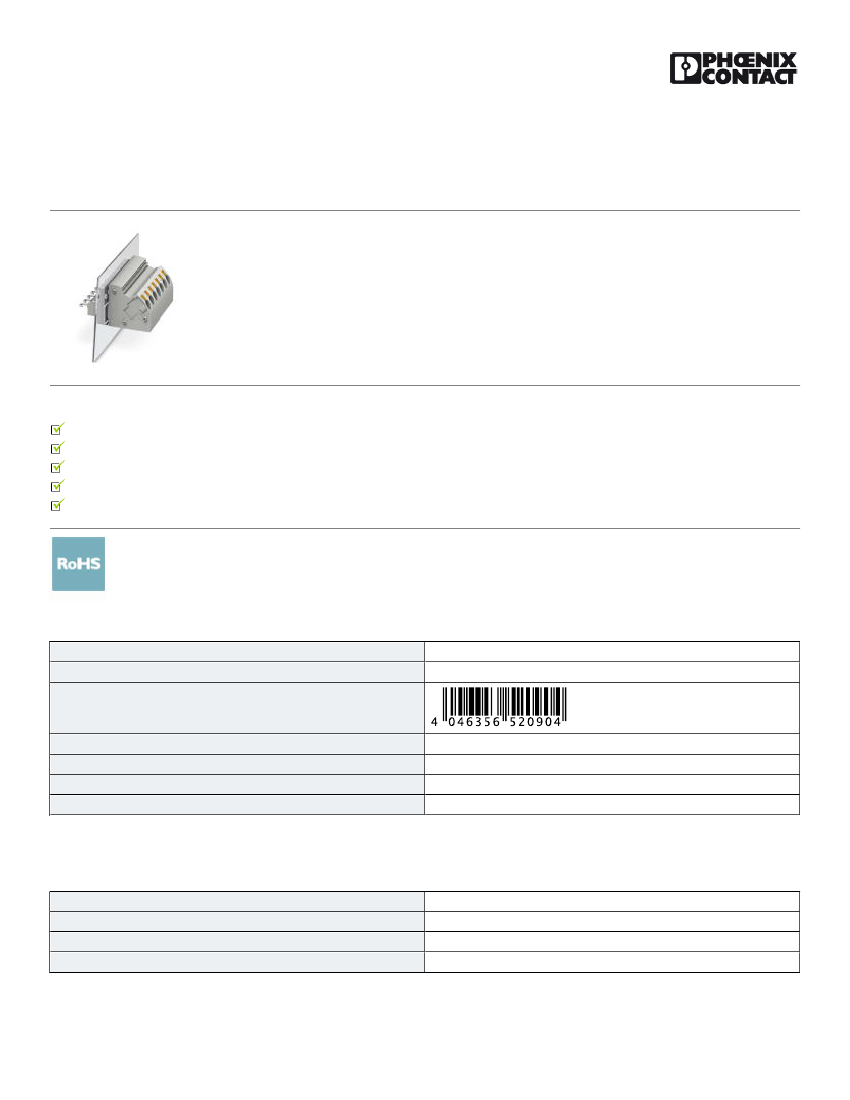

Panel feed-through terminal block - PW 4-POT-SL/S - 3059744
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through terminal block, Connection method: Push-in spring connection, Solder connection, Number of
positions: 1, Load current : 32 A, Cross section: 0.2 mm² - 4 mm², AWG 24 - 12, Width: 8.1 mm, Color: gray
Why buy this product
Tool-free wiring of conductors with ferrules or solid conductors from 0.34 mm²
User-friendly Push-in connection
Easy grouping with engagement pin versions
Molded versions ensure maximum tightness of seal
The integrated latch allows you to release connected conductors with any type of tool
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356520904
9.600 g
85369010
China
1 STK
50 STK
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
1
2
4 mm²
gray
02/21/2017 Page 1 / 3
https://www.phoenixcontact.com/us/products/3059744
Panel feed-through terminal block - PW 4-POT-SL/S - 3059744
Technical data
General
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Ambient temperature (operation)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
Number of positions
PA
V0
41 A
8 kV
3
III
I
-40 °C ... 105 °C
IEC 60947-7-1
32 A
32 A
800 V
No
1
Dimensions
Width
Plate thickness
8.1 mm
1 mm ... 4 mm
Connection data
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Outside
Push-in spring connection
0.2 mm²
4 mm²
0.2 mm²
6 mm²
24
12
0.25 mm²
6 mm²
0.25 mm²
4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
Connection side
10 mm
A4
Inside
02/21/2017 Page 2 / 3
https://www.phoenixcontact.com/us/products/3059744
Panel feed-through terminal block - PW 4-POT-SL/S - 3059744
Technical data
Connection data
Connection method
Solder connection
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
UL Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-10
30 A
300 V
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
24-10
30 A
300 V
D
24-10
5A
600 V
FILE E 60425
