ED3100/6

Description
TERMINAL BLOCK 5MM 6POS PCB
CategoryThe connector
File Size658KB,1 Pages
ManufacturerOn Shore Technology Inc.
Environmental Compliance
Download Datasheet Parametric View All

ED3100/6 Overview

TERMINAL BLOCK 5MM 6POS PCB

ED3100/6 Parametric

Parameter NameAttribute value
Number of levels1
Number of pins per level6
spacing0.197"(5.00mm)
Mating directionHorizontal, with board
current16A
Voltage300V
Wire gauge14-28 AWG
Installation typeThrough hole
wire terminationWithout screws - branch spring, push-in spring
characteristicInterlocking (side)
colorgray, slate
Operating temperature-30°C ~ 105°C
Shell materialPolyamide (PA), nylon
Contact material - plating-
Fixture Material - PlatingStainless steel
Screw material - coating-
Torque - Screws-
Thread-

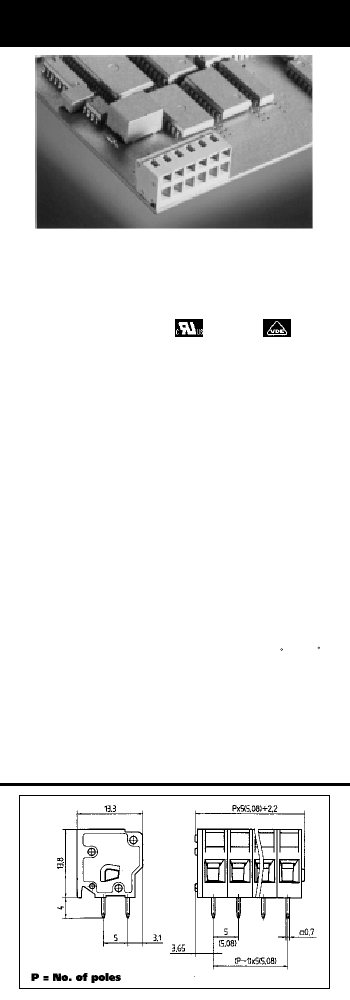

ED3100/X
1-n poles, Spacing 5.0 mm adjustable to 5.08 mm
insert required no. of poles
x
How to order see page 5
Ratings:
Rated Voltage
Rated Current
Wire Size
Test Voltage
Max. Rated Cross Section
Single Wire (solid)
Stranded Wire (flexible)
Stranded wire with Ferrules
Dimensions
Spacing
PCB Hole Diameter
Stripped Length
Materials
Insulating Material
Flammability Class
Temperature Range
Cage Clamp
Wire Guard
Color
Slade Grey
300 V
16 A
AWG 28-14
250 V
24 A (T60)
2.5 mm
2
2.0 kV
2.5 mm
2
2.5 mm
1.5 mm
2
2
5.0 mm (5.08 mm)
1.0 mm (2x)
6.0 mm
PA
UL94 V-0
-30 C/+105 C
Stainless Steel
Cu
