REVISION AG
DO NOT
SCALE FROM
THIS PRINT
.078±.010
C
C

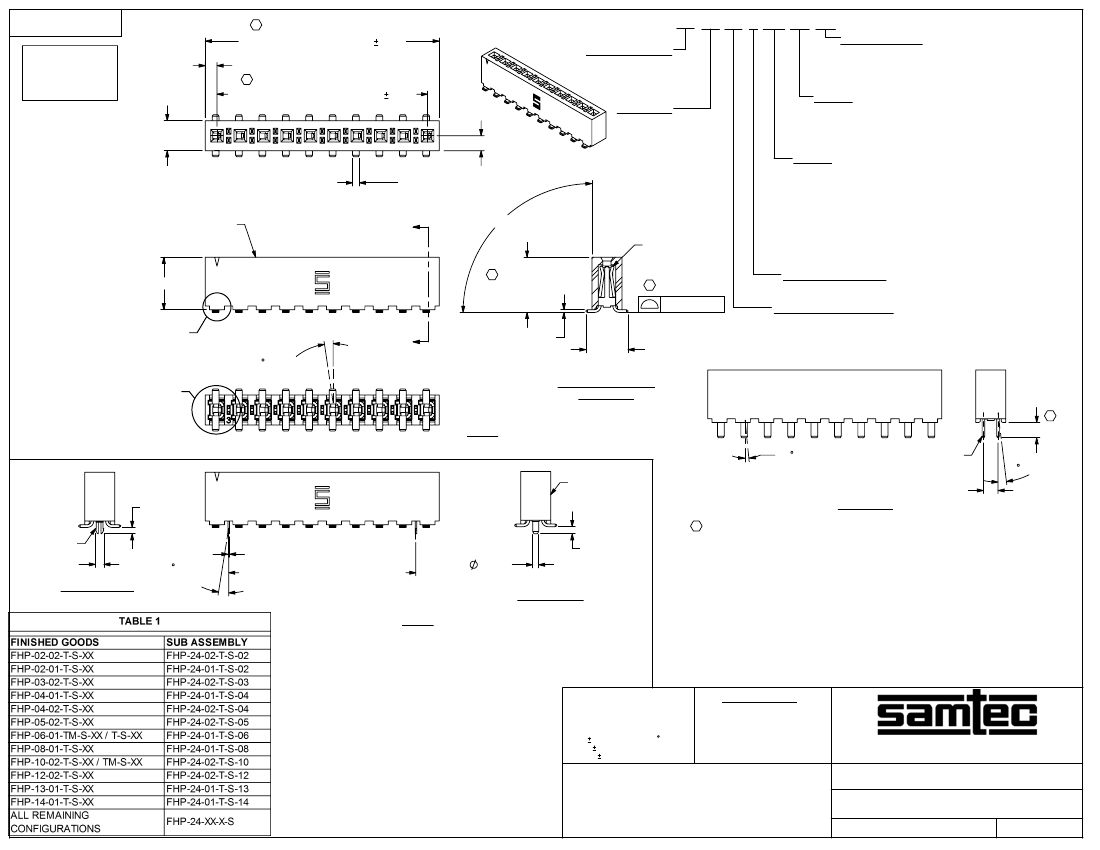

FHP-XX-XX-XX-S-XX-XX-XX
No OF POSITIONS
-02 THRU -24
(PER ROW)
[SEE POSITIONAL FILL VIEW]
LEAD STYLE
-01: THROUGH HOLE
(USE C-130-01-X)
-02: SURFACE MOUNT
(USE C-130-02-X)
(No OF POSITIONS x .156) .010
(No OF POSITIONS -1) X .156) .003
.200 (REF)
01
02
.045 REF
FHP-XX-S
*POLARIZATION
-02 THRU -06, -08, -10, -12, -13 & -14
(SEE TABLE 1 FOR AVAILABLE COMBINATIONS)
(SEE SHT 3, IN-PROCESS 1 POLARIZED FILL)
(SEE NOTE 12)
OPTION
-TR: TAPE & REEL PACKAGING
(T&R AVAILABLE FOR 2 THRU 18 POS)
(SEE NOTES 6 & 10)
.100 REF
* = INTERNAL USE ONLY
NOT FOR SALE
90°
C-130-02-X
"A"
OPTION
-LC: LOCKING CLIP (USE LC-05-TM)
(-02 LEAD STYLE ONLY, SEE NOTE 11)
-A: ALIGNMENT PIN (USE FHP-XX-S-A)
(SEE FIG 2)(-02 LEAD STYLE ONLY)
-K: POLYIMIDE FILM PAD
(SEE FIG 3, SHT. 2)(USE K-DOT-.256-.375-.005)
(-02 LEAD STYLE ONLY)
( AVAILABLE ON POSITIONS 2-24,
2-4 POSITIONS MUST BE IN -TR)
ROW SPECIFICATION
-S: SINGLE (USE FHP-XX-S)
.350 REF
C
.368
- .002
(SEE NOTE 9)
+.004
C
SEE NOTE 2
'B'
3 MAX SWAY
"A"
.018 REF
.280 REF
PLATING SPECIFICATION
-T: MATTE TIN CONTACT AND TAIL (USE C-130-XX-T)
-TM: MATTE TIN CONTACT AND TAIL (USE C-130-XX-T)
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL (USE C-130-XX-H)
'A'
SECTION "A"-"A"
STYLE -02
FIG 1
[FHP-10-02-X-S SHOWN]
FHP-XX-S-A
3 MAX SWAY
ALL LEADS TO BE IN THE
SAME DIRECTION
(EITHER DIRECTION)
C-130-01-X
.097 REF
C
.102±.003
2 MAX TOE
.042
LC-05-TM
.056 REF
NOTES:
STYLE -01
-LC OPTION
2 MAX
SWAY
.010 REF
(No OF POSITIONS x .156) -.312
.0470
.0400
-A OPTION
-LC & -A OPTIONS
FIG 2
[-LC & -A OPTIONS ONLY AVAILABLE ON -02 LEAD STYLE]
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
C
1.
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN .006".
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. LAYER PACKAGE STYLE -01 & -02, POSITIONS 02 - 04 WITH NO OPTIONS ONLY.
7. OPEN PART OF CONTACT FILLED TOWARDS #1 PIN INDICATOR
8. MINIMUM WALL THICKNESS TO BE .010".
9. MEASURED @ BEND.
10. TUBE PACKAGING AVAILABLE FOR 5 THRU 24 POSITIONS.
11. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDSMANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.
12. POLARIZATION NUMBER INDICATES THE AMOUNT OF LIVE CONTACTS IN THE
CONNECTOR.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
MATERIAL: VECTRA E130i
COLOR: BLACK
CONTACT: BeCu, 174HT
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
.156 HI POWER SOCKET ASSEMBLY
03/01/99
SHEET
1
OF
3
DWG. NO.
FHP-XX-XX-XX-S-XX-XX-XX
F:\dwg\sw\exisprod\assembly\156\FHP-XX-XX-XX-S-XX-XX-XX-ASM.slddrw
BY:
BRATCHER
REVISION AG
"M"
"P"
.374 9.500
.256 .010 [6.500 .25]
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .256 [6.50]) / 2} .020 [.51]

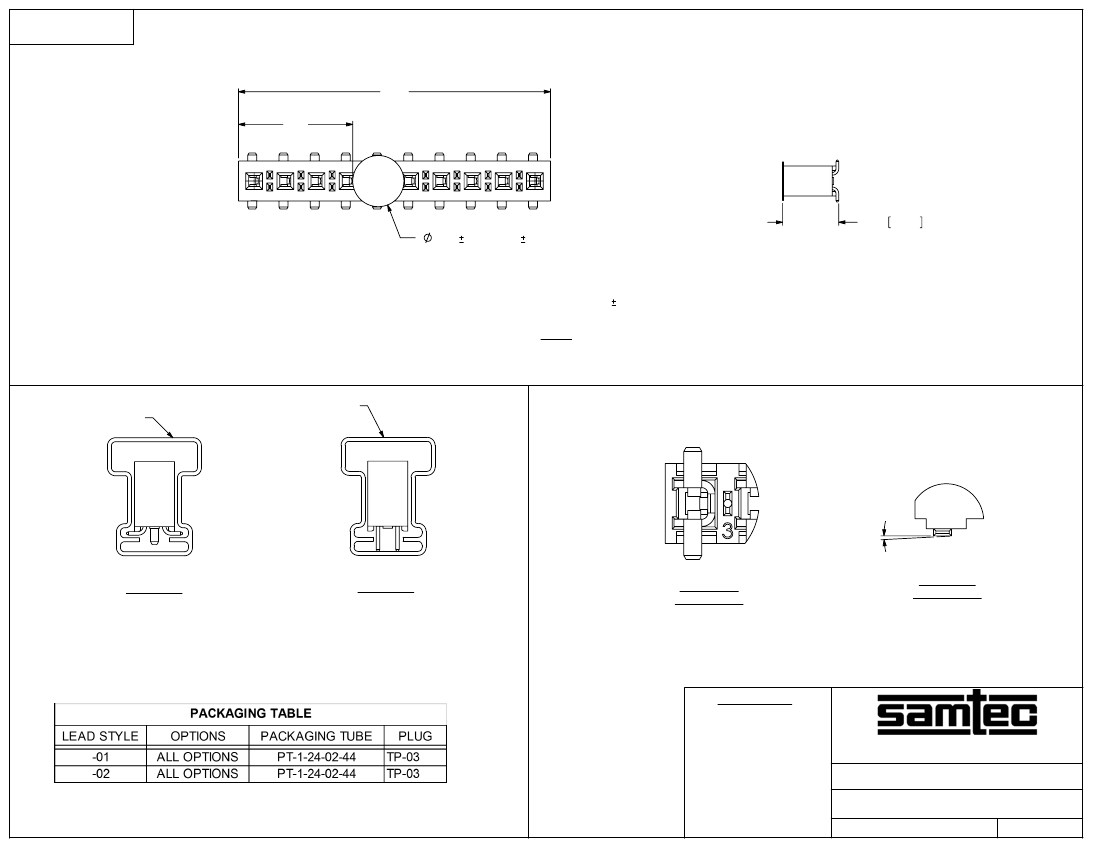

FIG 3
-K: POLYIMIDE FILM PAD OPTION
(SHOWN: FHP-10-02-X-S-K)
PT-1-24-02-44
PT-1-24-02-44
3° MAX TWIST
STYLE -02
(WITH ALIGNMENT PIN)
STYLE -01
DETAIL 'A'
SCALE 4 : 1
(SHOWN FOR
CONTACT ORIENTATION)
DETAIL 'B'
SCALE 4 : 1
(TUBE PACKAGING AVAILABLE FOR 5 THRU 24 POS)
(TUBE PACKAGE THE PARTS WITH #1 PIN TOWARDS ARROW)
F:\dwg\sw\exisprod\assembly\156\FHP-XX-XX-XX-S-XX-XX-XX-ASM.slddrw
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
.156 HI POWER SOCKET ASSEMBLY
03/01/99
SHEET
2
OF
3
BY:
BRATCHER
FHP-XX-XX-XX-S-XX-XX-XX
REVISION AG
= DENOTES EMPTY POSITION
-02 POLARIZATION
(8 FINISHED GOODS)
FHP-24-02-XX-S-02 SHOWN
POLARIZED OPTION
IN-PROCESS 1
FILL C-130-XX-X
STANDARD FILL
FINISHED PART
-03 POLARIZATION
(6 FINISHED GOODS)
FHP-24-02-XX-S-03 SHOWN
4 POSITION SHOWN
[PRIOR TO CUT-TO-POSITION OPERATION]
-04 POLARIZATION
(5 FINISHED GOODS)
FHP-24-02-XX-S-04 SHOWN
-12 POLARIZATION
(1 FINISHED GOODS)
FHP-24-02-XX-S-12 SHOWN
-05 POLARIZATION
(4 FINISHED GOODS)
FHP-24-02-XX-S-05 SHOWN
-13 POLARIZATION
(1 FINISHED GOODS)
FHP-24-01-XX-S-13 SHOWN
-06 POLARIZATION
(3 FINISHED GOODS)
FHP-24-01-XX-S-06 SHOWN
-14 POLARIZATION
(1 FINISHED GOODS)
FHP-24-01-XX-S-14 SHOWN
-08 POLARIZATION
(2 FINISHED GOODS)
FHP-24-01-XX-S-08 SHOWN
PROPRIETARY NOTE
-10 POLARIZATION
(2 FINISHED GOODS)
FHP-24-02-XX-S-10 SHOWN
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.25:1
.156 HI POWER SOCKET ASSEMBLY
BY:
BRATCHER
FHP-XX-XX-XX-S-XX-XX-XX
03/01/99
SHEET
3
OF
3
