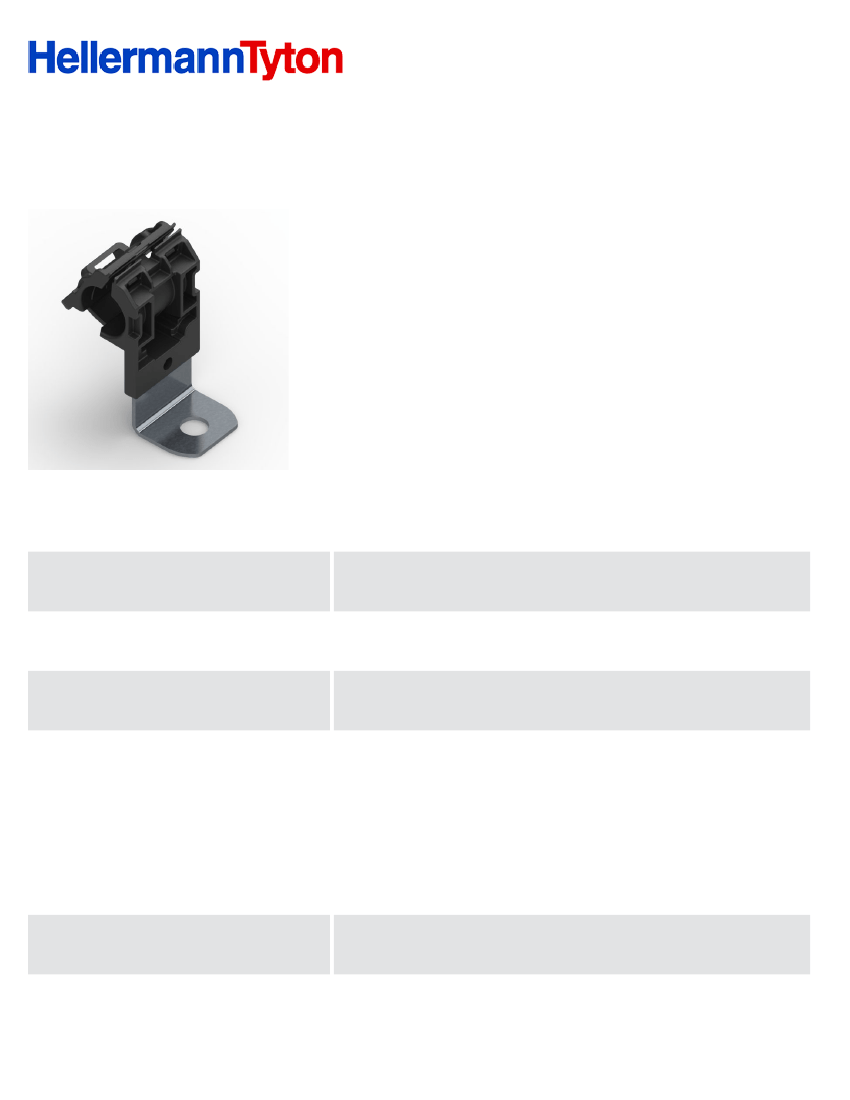

Specification Sheet
Part Number: 151-01969
Ratchet P-Clamp, .52"–.77" Bundle Dia, 90° Short, .41" Hole Dia, PA66HIRHSUV/SS304, Black, 280/ctn
Article Number
151-01969
Type
RCB90SM10SS
Color
Black (BK)
Features & Benefits
• One-piece ratchet closure design allows for easy installation during pre- or
final assembly. • Four sizes and multiple configurations handle a wide range of
diameters and applications, reducing part inventory. • Clamp interior is
designed to guide and center bundle to reduce pinching. • Easy release
feature allows for quick adjustments and maintenance. • Impact modified, heat
and UV stabilized PA66 provides long-term durability, indoors and out. •
Stainless steel mounting plate tolerates high torque mounting, resists galvanic
corrosion with dissimilar metals, and harsh chemicals.
Quantity Per
carton
Product Description
The Ratchet P-Clamp family offers versatility when managing wires, cables
and hoses. The robust design and durable materials make it ideal for heavy
duty applications, both indoors and out. The one-piece adjustable clamp can
be closed by hand to the desired diameter. The release feature provides easy
and nondestructive removal of cables simply by using a flat-head screwdriver.
This nondestructive release allows the clamp to be reused without removing or
replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes
and multiple mounting configurations.
Short Description
Ratchet P-Clamp, .52"–.77" Bundle Dia, 90° Short, .41" Hole Dia,
PA66HIRHSUV/SS304, Black, 280/ctn
Global Part Name
RCB90SM10SS-PA66HIRHSUV/SS304-BK
Minimum Tensile Strength (Imperial)
100.0
Minimum Tensile Strength (Metric)
445.0
Length L (Imperial)
4.01
Length L (Metric)
101.9
Fixation Method
Screw Mounting
Variant
Short
Width W (Imperial)
1.37
Width W (Metric)
34.9
Bundle Diameter Min (Imperial)
0.5
Bundle Diameter Min (Metric)
12.7
Bundle Diameter Max (Imperial)
0.77
Bundle Diameter Max (Metric)
19.5
Cable Tie Width Max (Imperial)
0.52
Cable Tie Width Max (Metric)
13.2
Mounting Hole Diameter D (Imperial)
0.405
Mounting Hole Diameter D (Metric)
10.29 mm
Mounting Hole Diameter D Max (Metric)
10.29
Stud Diameter (Metric)
M10
Mounting Hole Centers (Imperial)
1.05
Material
Stainless Steel (SS304) Polyamide 6.6 high impact modified, heat and UV
stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV SS304
Flammability
UL 94 HB
UV Resistant (Yes/No)
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
Package Quantity(Imperial)
280
Package Quantity (Metric)
280
© 2018 HellermannTyton. All rights reserved.
