0449150012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0449150012

0449150012: DescriptionCONN MOD PLUG 8P8C SHIELDED; CategoryThe connector; File Size209KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0449150012 Overview

CONN MOD PLUG 8P8C SHIELDED

0449150012 Parametric

Parameter Name	Attribute value
Connector type	plug
Cable type	Round cables, solid or stranded conductors
Number of pins/contacts	8p8c (RJ45, Ethernet)
characteristic	-
shield	shield
grade	Cat6
Intrusion protection	-
Termination	crimp
length	0.885"（22.48mm）
color	translucent - transparent
Wire gauge	22-28 AWG
Contact plating	gold
Contact plating thickness	50.0µin（1.27µm）
Contact material	Phosphor bronze
Rated current	1.5A
Rated voltage	56.5V
Shell material	Polycarbonate (PC)
shielding material	-

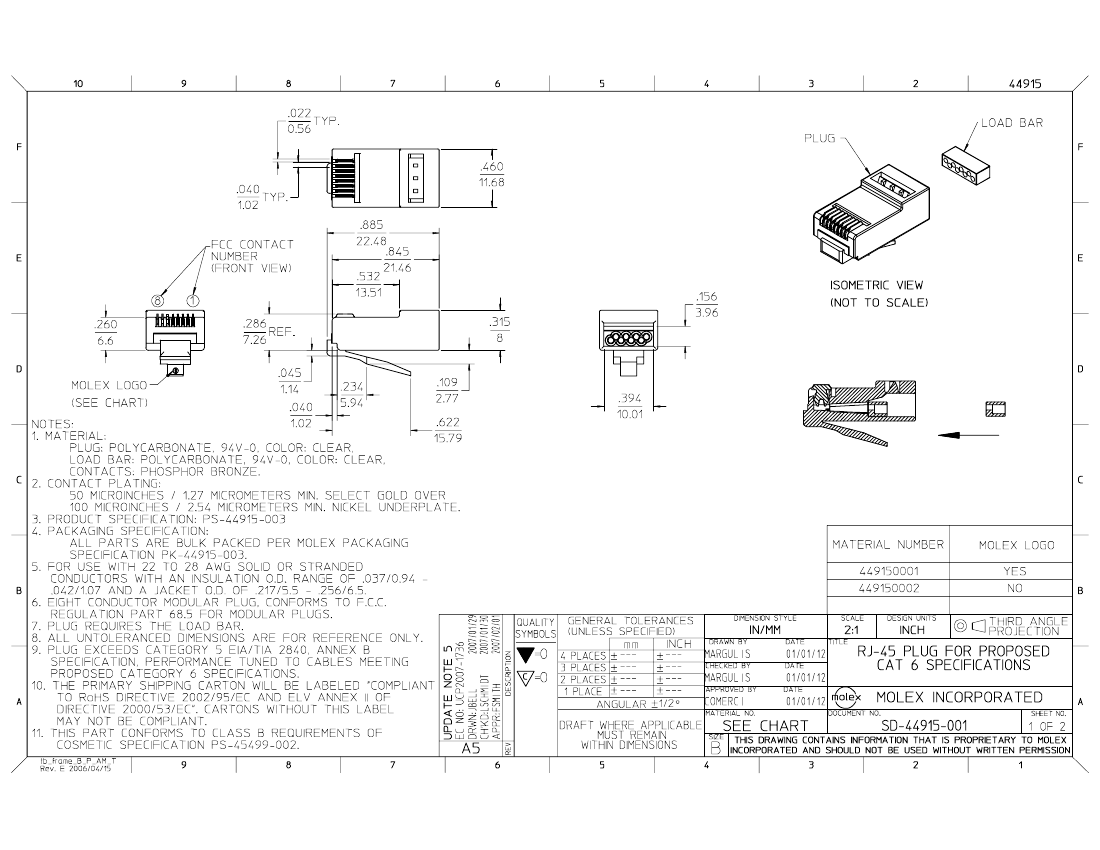

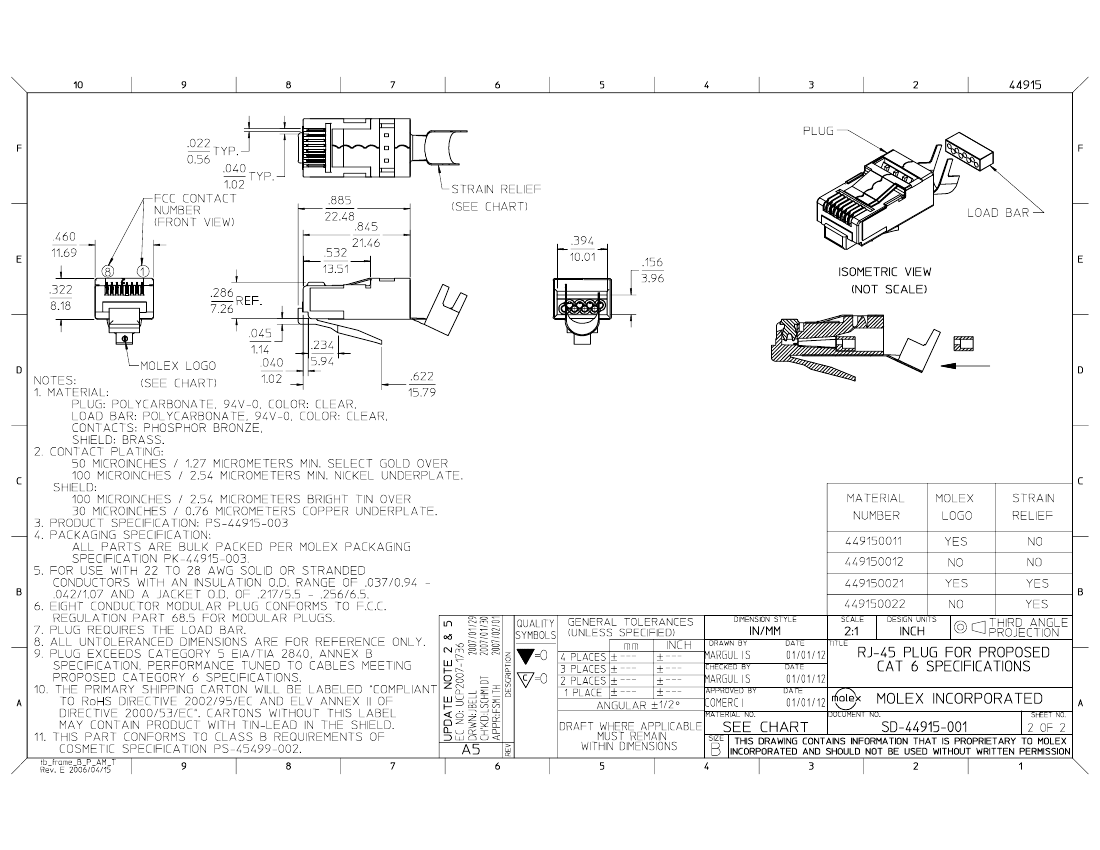

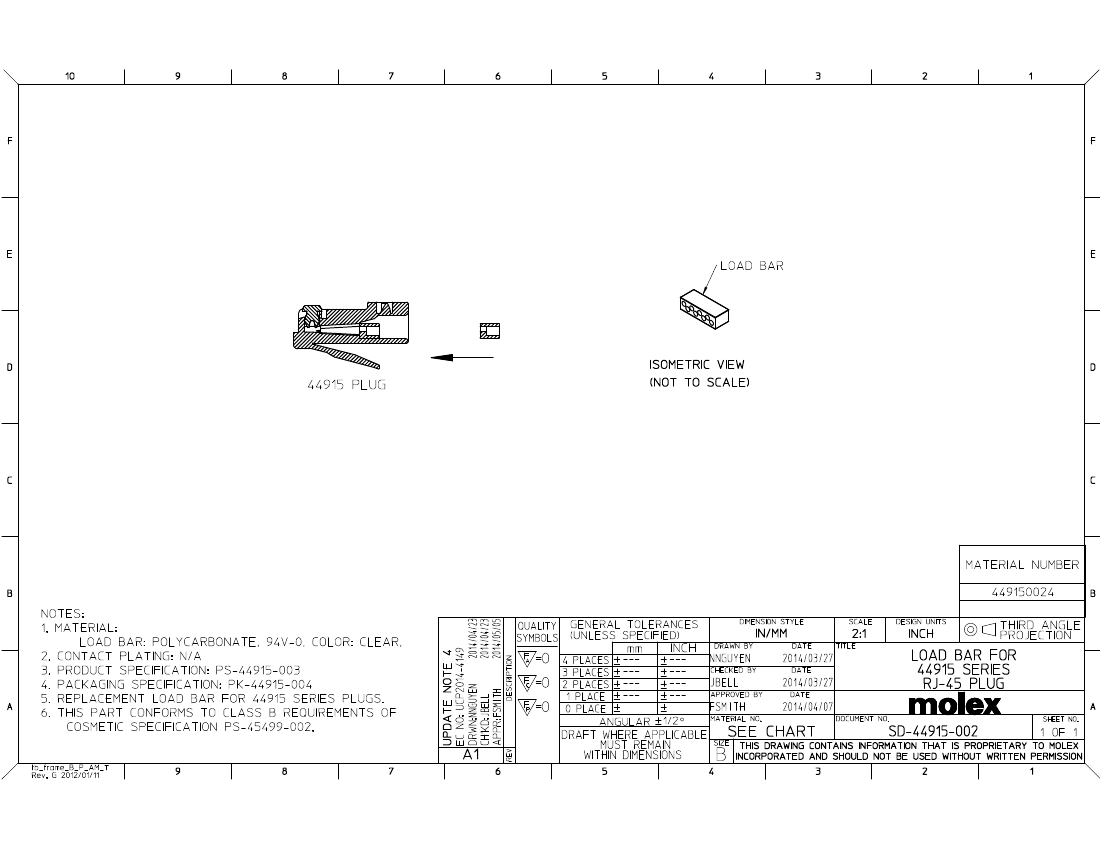

Preview

Download Datasheet

View All

0449150012 Related Products

	0449150012	0449150021	0449150011	0449150002	0449150001	0449150022
Description	CONN MOD PLUG 8P8C SHIELDED	CONN MOD PLUG 8P8C SHIELDED	CONN MOD PLUG 8P8C SHIELDED	CONN MOD PLUG 8P8C UNSHIELDED	CONN MOD PLUG 8P8C UNSHIELDED	CONN MOD PLUG 8P8C SHIELDED
Connector type	plug	plug	plug	plug	plug	plug
Cable type	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors
Number of pins/contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
shield	shield	shield	shield	No shielding	No shielding	shield
grade	Cat6	Cat6	Cat6	Cat6	Cat6	Cat6
Termination	crimp	crimp	crimp	IDC	IDC	crimp
length	0.885"（22.48mm）	0.885"（22.48mm）	0.885"（22.48mm）	0.885"（22.48mm）	0.885"（22.48mm）	0.885"（22.48mm）
color	translucent - transparent	translucent - transparent	translucent - transparent	translucent - transparent	translucent - transparent	translucent - transparent
Wire gauge	22-28 AWG	22-28 AWG	22-28 AWG	22-28 AWG	22-28 AWG	22-28 AWG
Contact plating	gold	gold	gold	gold	gold	gold
Contact plating thickness	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Rated current	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A
Rated voltage	56.5V	56.5V	56.5V	56.5V	56.5V	56.5V
Shell material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
