4" (102 mm)
Opening
3/8"
(10 mm)
3/4"
(19 mm)
Made in the United
States of America
SPECIFICATIONS
•
•
•
•
•
•
Front
3-3/8"
(86 mm)
Dissipative Low Charging Vinyl Badge Holder
◦ Material Thickness: 0.012" (0.3 mm) front & 0.024" (0.6 mm) back
◦ Material Tolerance (thickness): ±10%
◦ Material Color: matte front & back
Highly visible yellow header with ESD protective symbol
Includes a 1/8" (3 mm) x 9/16" (14 mm) punch through slot, setback 3/8"
(10 mm) from top
4" (101 mm) x 3-3/8" (86 mm) (Outer Dimension)
Opening setback 3/4" (19 mm) from top with zipper closure
Embossing with: Menda and Made In America along the bottom of the
badge holder
RS: 1 x 10
6
< 1 x 10
10
ohms per ANSI/ESD STM11.11
Genuine Made In America - accept no substitutes
We can do customs just let us know your insert size
•
•
•
"It should be understood that any object, item, material or person could be a source
of static electricity in the work enviroment. Removal of unnecessary nonconductors,
replacing nonconductive materials with dissipative or conductive materials and grounding
all conductors are the principle methods of controlling static electricity in the workplace,
regardless of the activity." [ESD Handbook ESD TR20.20-2008 section 2.4 Sources of Static
Electricity]
MENDA
MADE IN
AMERICA
Specifications and procedures subject to change without notice.
Back
+/- 1/16" tolerances on dimensions unless specified

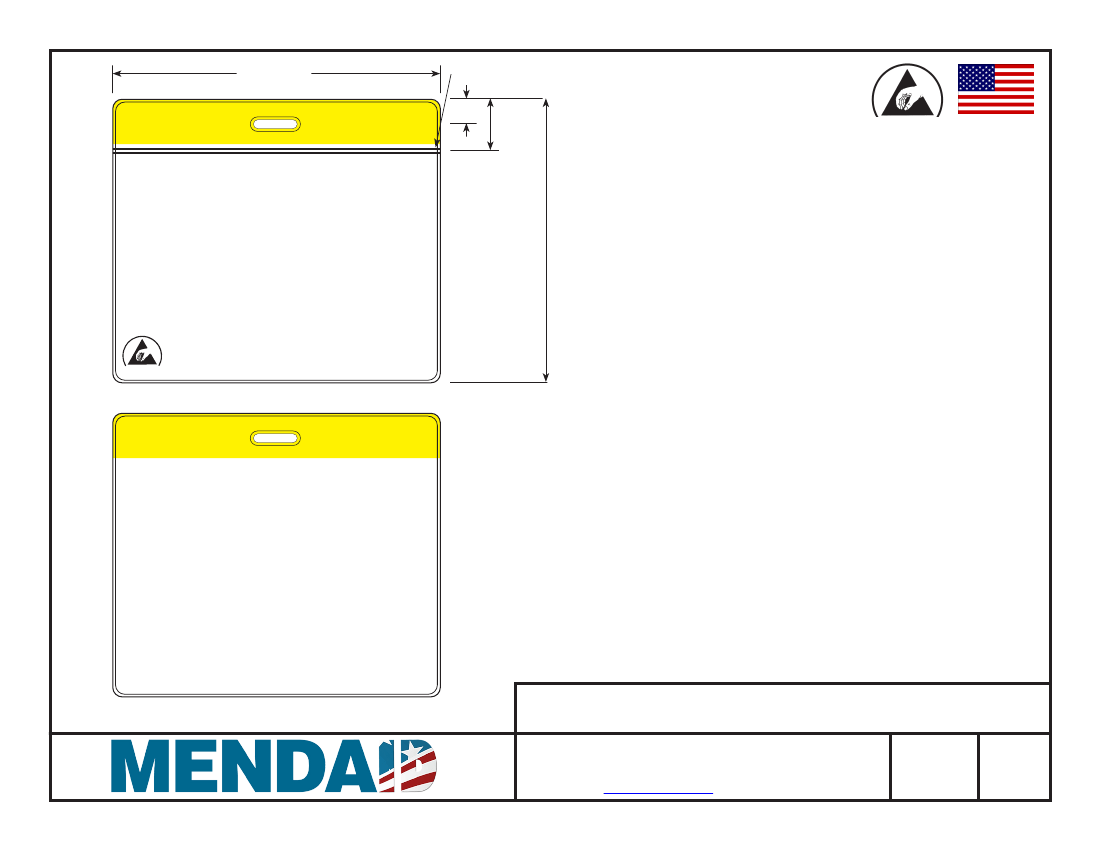

ESD BADGE HOLDER, HORIZONTAL, 3-3/8" X 2-3/8" INSERT SIZE,
W/ YELLOW HEADER & ZIPPER CLOSURE
3651 WALNUT AVENUE, CHINO, CA 91710
PHONE: (909) 627-2453
WEBSITE: Menda-ID.com
DRAWING
NUMBER
35017
DATE
April
2015
©
2015 DESCO INDUSTRIES INC.
Employee Owned
