142-1711-061: DescriptionRF SMA Connector, Female, Panel Mount, Receptacle; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

142-1711-061 Overview

RF SMA Connector, Female, Panel Mount, Receptacle

142-1711-061 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	RIGHT ANGLE
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

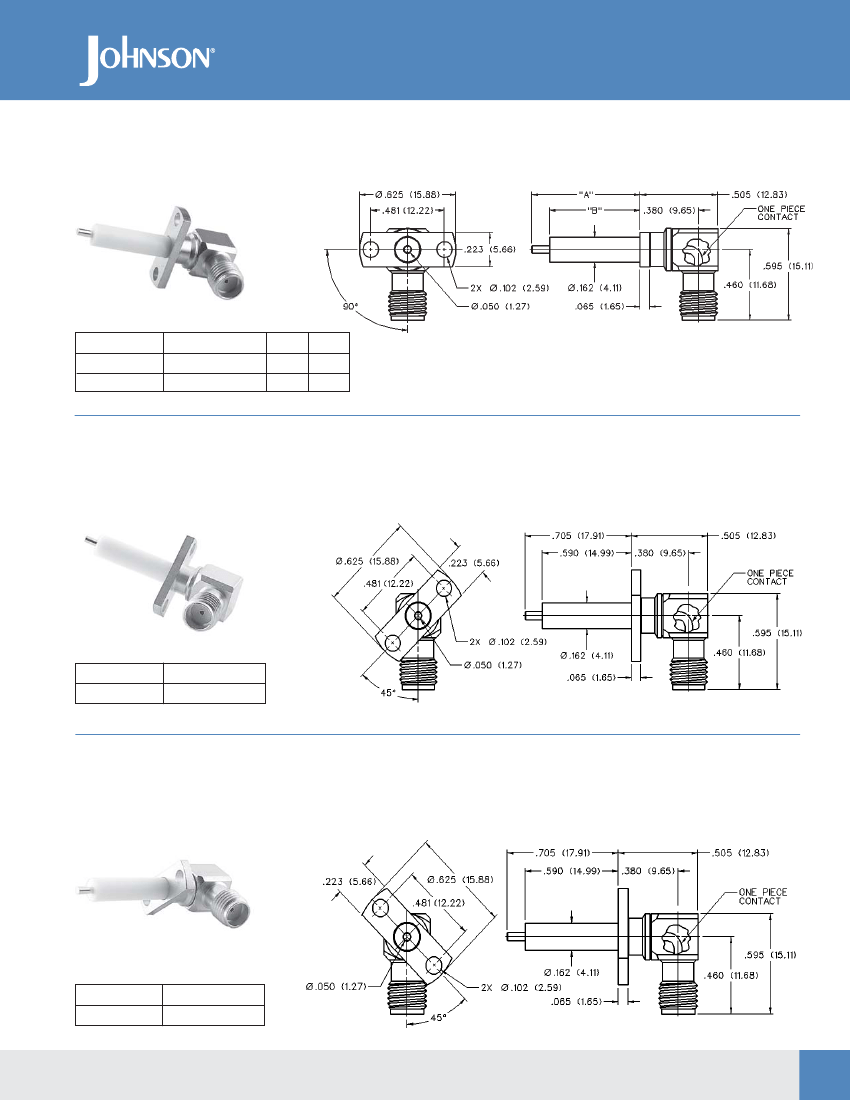

SMA - 50 Ohm Connectors

Panel Mount

INCHES (MILLIMETERS) • CUSTOMER DRAWINGS AVAILABLE ON REQUEST

2-Hole Right Angle Flange Mount Jack Receptacle -

Extended Dielectric 90° Orientation

GOLD PLATED

142-1711-011

142-1711-061

NICKEL PLATED

142-1711-016

142-1711-066

“A”

.705

.195

“B”

.590

.130

2-Hole Right Angle Flange Mount Jack Receptacle -

Extended Dielectric +45° Orientation

GOLD PLATED NICKEL PLATED

142-1711-021

142-1711-026

2-Hole Right Angle Flange Mount Jack Receptacle -

Extended Dielectric -45° Orientation

GOLD PLATED NICKEL PLATED

142-1711-031

142-1711-036

Connectivity Solutions

Tel: 800-247-8256

•

Fax: 507-833-6287

•

www.EmersonNetworkPower.com/connectivity

63
