131-3303-501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 131-3303-501

131-3303-501: DescriptionCONN SMB JACK R/A 50OHM SOLDER; CategoryThe connector; File Size189KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric View All

131-3303-501 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	131-3303-501	-	-	View	Buy Now

131-3303-501 Overview

CONN SMB JACK R/A 50OHM SOLDER

131-3303-501 Parametric

Parameter Name	Attribute value
Connector style	SMB
Connector type	Jack, male pin
Contact termination	welding
Protective termination	crimp
impedance	50 ohms
Installation type	Panel mount, right angle
Installation features	Bulkhead type - front side nut
cable set	RG-161，174，179，187，188，316
Fastening type	snap-in
Frequency - maximum	4GHz
Number of ports	1
characteristic	-
Shell color	gold
Intrusion protection	-
include	5 pieces - 1 connector, 1 end cap, 1 nut, 1 sleeve, 1 washer
Matrix material	brass
substrate surface	gold
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C
center contact material	brass
Rated voltage	335V
Number of patches	500
Insertion loss	0.6dB

Preview

Download Datasheet

View All

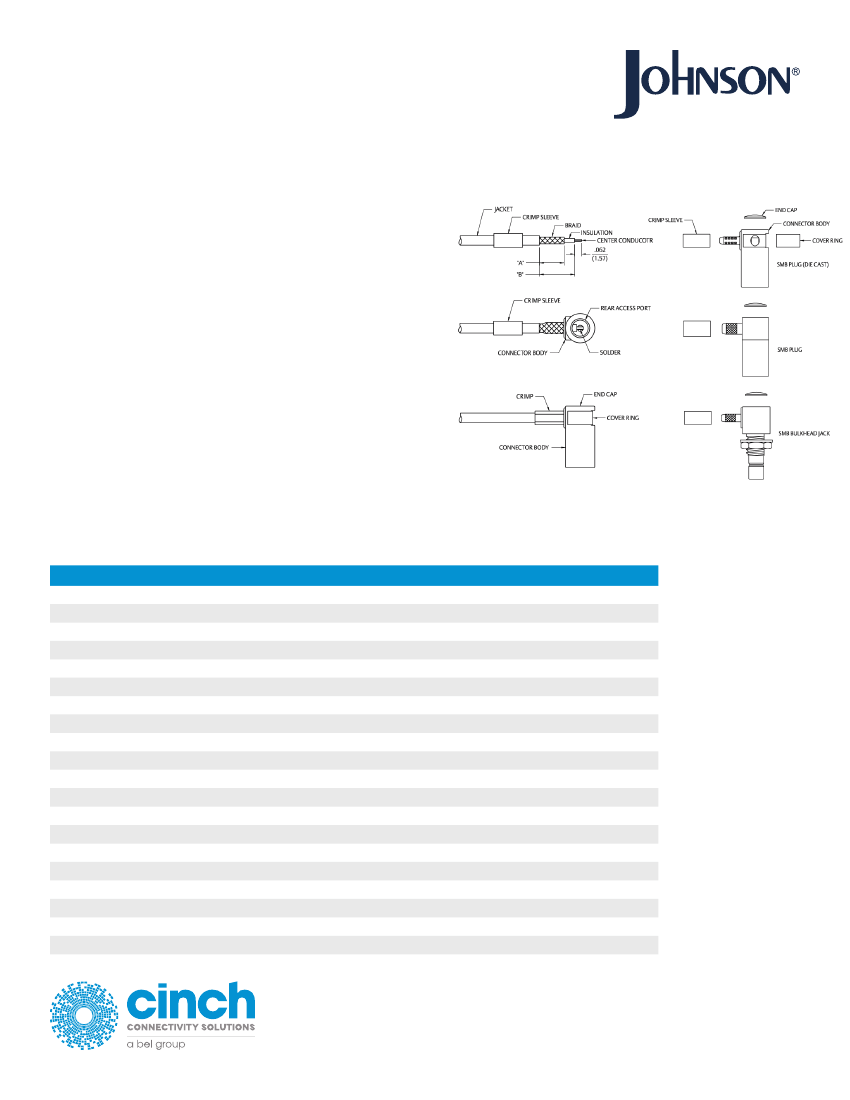

SMB/SMC/Mini-75Ohm SMB Crimp Type Right Angle Plugs

and Right Angle Bulkhead Jacks for Flexible Cable

1. Identify connector parts. (4 piece parts: crimp sleeve, body

assembly, expansion cap and covering ring. Die cast body

only.)

2. Strip cable to dimensions shown. Do not nick braid or center

conductor. A wire stripper of correct size is recommended for

this step. Twist stranded center conductor into tight bundle

and tin (optional). Slide crimp sleeve onto cable as shown.

3. Flare braid and slide cable into body assembly making

certain that the cable insulation bottoms on center contact.

Arrange braid uniformly around crimp stem of body

assembly. Slide crimp sleeve over braid and crimp securely

using recommended crimp tool.

4. Solder center conductor to contact through the rear and side

access ports. Use a minimum amount of solder for a good

joint. .020 (0.51) diameter solder is recommended. Place

expansion cap in access port and seat with a .125 (3.17)

diameter flat punch. Snap cover ring over side access port if

applicable.

Cable Group

RG-178/U, 196

RG-316/U, 161, 174, 179, 187, 188

RG-179 DS, 187 DS,188DS, 316 DS

RG-316/U, 161, 174,179, 187, 188

RG-179 DS, 187 DS,188 DS, 316 DS

RG-178/U, 196

RG-316/U, 161, 174,179, 187, 188

RG-179 DS, 187 DS,188 DS, 316 DS

RG-58/U, 141, 303

RG-316/U, 161, 174, 188

316 DS, 188 DS

RG-179/U, 187

RG-179/U, 187, 316,

161, 174, 188

RG-179 DS, 187 DS

316 DS, 188 DS

RG-59

BELDEN 735A

RG-316/U, 188, 174, 179, 187

RG-316 DS, 188 DS, 179 DS, 187 DS

Part No.

131-1402-101/116

131-1403-101/116

131-1404-101/116

131-3303-501/506

131-3304-501/506

131-3402-101/116

131-3403-101/116

131-3404-101/116

131-3407-101/106

131-6403-101/106

131-6404-101/106

131-6433-101/106

131-8403-101/106

131-8403-111/116

131-8404-101/106

131-8404-111/116

131-8409-101/106

131-8445-101/106

131-9403-101/116

131-9404-101/116

“A”

.219 (5.56)

.177 (4.50)

.219 (5.56)

.177 (4.50)

.219 (5.56)

.177 (4.50)

.219 (5.56)

.177 (4.50)

“B”

.312 (7.92)

.289 (7.34)

.312 (7.92)

.289 (7.34)

.312 (7.92)

.289 (7.34)

.312 (7.92)

.289 (7.34)

2.89 (7.34)

Crimp Hex

.105 (2.67)

.128 (3.25)

.151 (3.83)

.128 (3.25)

.151 (3.83)

.105 (2.67)

.128 (3.25)

.151 (3.83)

.213 (5.41)

.128 (3.25)

.151 (3.83)

.128 (3.25)

.151 (3.83)

.255 (6.48)

.178 (4.52)

.128 (3.25)

.151 (3.83)

258

Cinch Connectivity Solutions Waseca

299 Johnson Avenue SW, Suite 100

Waseca, MN 56093 USA

+1 507.833.8822

inquiry@cinch.com

cinch.com

ccsjai 02.17
