131-8303-406 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 131-8303-406

131-8303-406: DescriptionCONN MINI SMB JACK STR 75 OHM; CategoryThe connector; File Size219KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric View All

131-8303-406 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	131-8303-406	-	-	View	Buy Now

131-8303-406 Overview

CONN MINI SMB JACK STR 75 OHM

131-8303-406 Parametric

Parameter Name	Attribute value
Connector style	SMB, mini
Connector type	Jack, male pin
Contact termination	Crimp or solder
Protective termination	crimp
impedance	75 ohms
Installation type	Panel mounting
Installation features	Bulkhead type - front side nut
cable set	RG-179，187
Fastening type	snap-in
Frequency - maximum	2GHz
Number of ports	1
characteristic	-
Shell color	silver
Intrusion protection	-
include	4 pieces - 1 connector, 1 nut, 1 sleeve, 1 washer
Matrix material	brass
substrate surface	nickel
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C
center contact material	copper beryllium
Rated voltage	335V
Number of patches	500
Insertion loss	0.3dB

Preview

Download Datasheet

View All

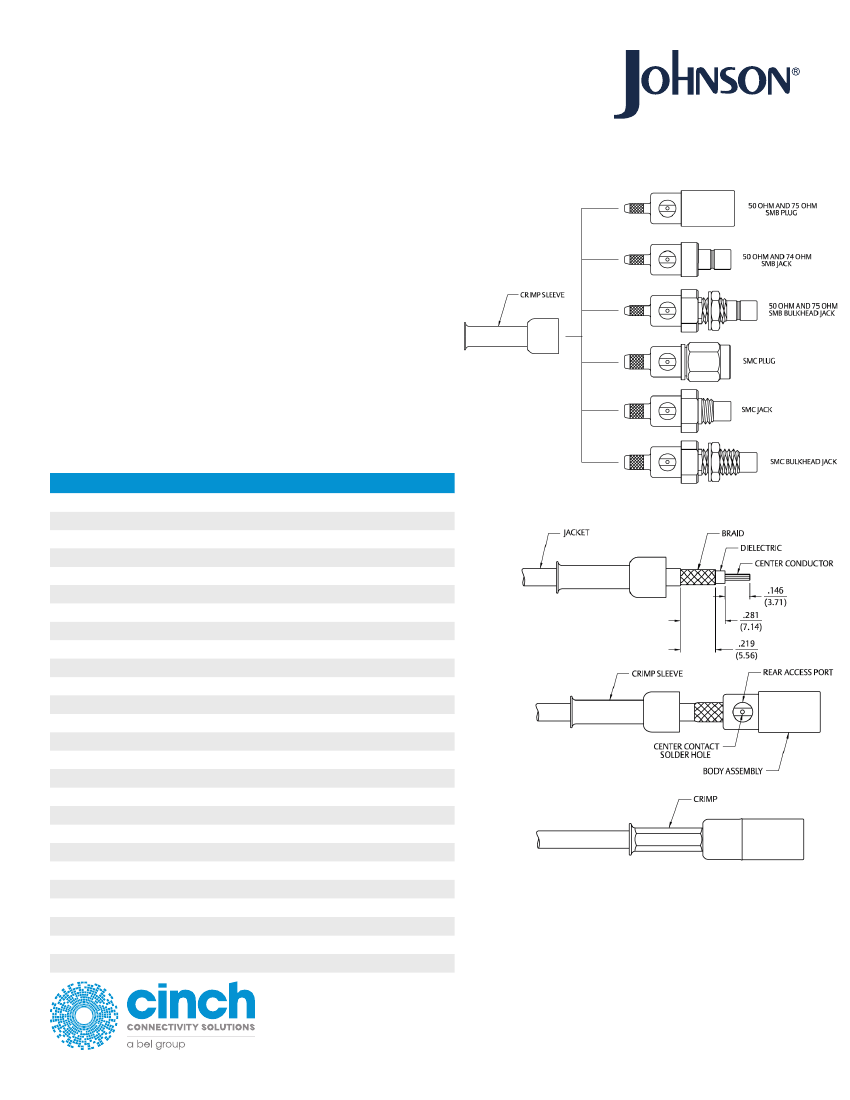

SMB/SMC/Mini-75Ohm SMB (2-Piece) Crimp Type Straight

Plugs, Jacks and Bulkhead Jacks for Flexible Cable

1. Identify connector parts. (2 piece parts – except bulkhead)

2. Strip cable to dimensions shown. Do not nick braid or center

conductor. A wire stripper of correct size is recommended for

this step. Twist stranded center conductor into tight bundle

and tin. Slide crimp sleeve onto cable as shown.

3. Flare braid and slide cable into body making certain that the

cable dielectric bottoms against center contact.

Solder Attachment:

Solder center conductor to contact

through the side access ports and hole in center contact. Use

a minimum amount of solder for a full fillet joint. .020 (0.51)

diameter solder is recommended.

Crimp Attachment:

Crimp applicable 50 Ohm connector

contacts with 141-0000-911 dieset in 144-0000-900 tool

frame. Crimp 75 Ohm connector contacts with 141-0000-924

dieset in 144-0000-900 tool frame. Crimp attachment to solid

center conductor cables is not recommended.

Cable Group

RG-316/U, 161, 174, 179, 187, 188

RG-316 DS, 188 DS, 179 DS

RG-178/U, 196

RG-316/U, 161,

174, 179, 187, 188

RG-179 DS, 187 DS,188 DS, 316 DS

RG-178/U, 196

RG-316/U, 161,

174, 179, 187, 188

RG-179 DS, 187 DS,

188 DS, 316 DS

RG-58/U, 141, 303

RG-316/U, 161, 174, 188

RG-316 DS, 188 DS

RG-179/U, 187

RG-316/U, 161, 174, 188

RG-316 DS, 188 DS

RG-179/U, 187

RG-179/U, 187, 316, 161, 174, 188

RG-179 DS, 187 DS, 188DS, 316DS

RG-179/U, 187, 316,

161, 174, 188

RG-179 DS, 187 DS,

188 DS, 316 DS

RG-59

BELDEN 735A

Part No.

131-1403-001/016

131-1404-001/016

131-3302-001/006

131-3303-001/006

131-3303-401/406

131-3304-401/406

131-3402-001/016

131-3403-001/016

131-3403-401/406

131-3404-401/406

131-3404-001/016

131-3407-001/006

131-6303-401/406

131-6304-401/406

131-6333-401/406

131-6403-001/006

131-6404-001/006

131-6433-001/006

131-8303-401/406

131-8304-401/406

131-8403-001/006

131-8403-011/016

131-8404-001/006

131-8404-011/016

131-8409-001/006

131-8445-001/006

Crimp Hex

.128 (3.25)

.151 (3.83)

.105 (2.67)

.128 (3.25)

.151 (3.83)

.105 (2.67)

.128 (3.25)

.151 (3.83)

.213 (5.41)

.128 (3.25)

.151 (3.83)

.128 (3.25)

.151 (3.83)

.128 (3.25)

.151 (3.83)

.128 (3.25)

.151 (3.83)

.255 (6.48)

.178 (4.52)

257

Cinch Connectivity Solutions Waseca

299 Johnson Avenue SW, Suite 100

Waseca, MN 56093 USA

+1 507.833.8822

inquiry@cinch.com

cinch.com

ccsjai 02.17
