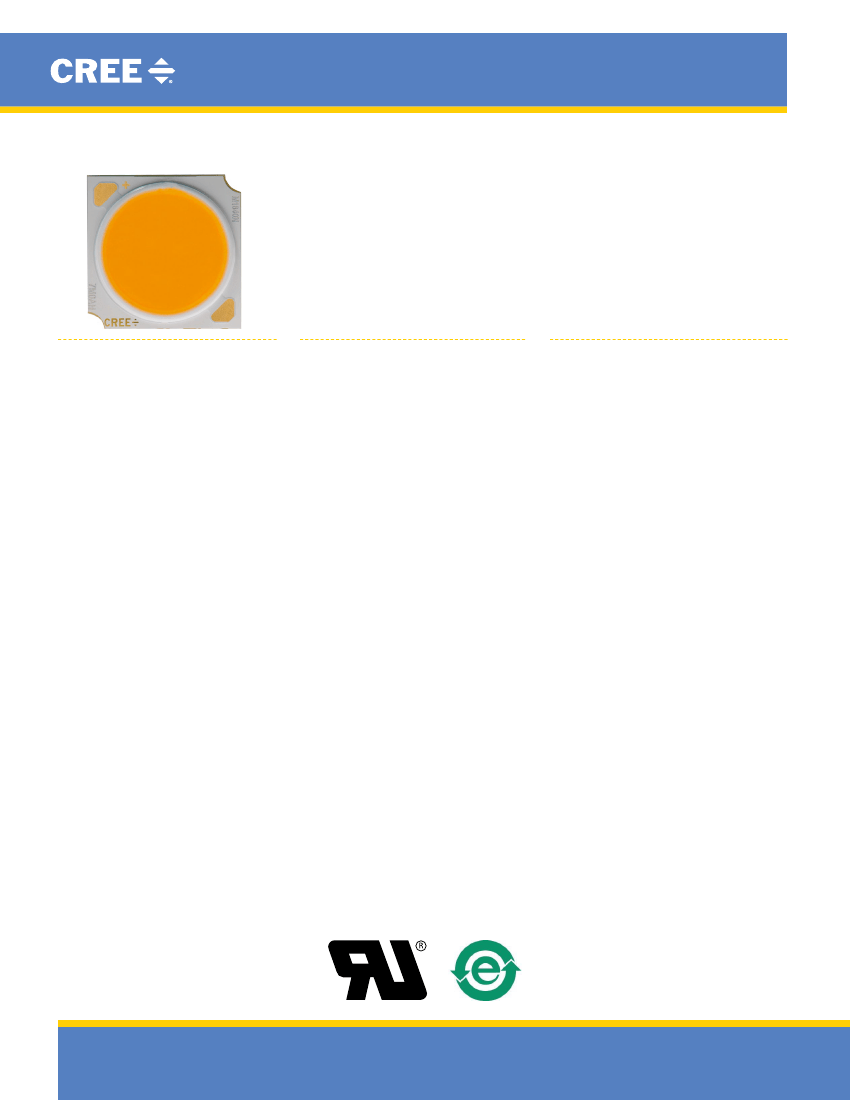

CLD-DS161 Rev 3B
Product family data sheet
Cree
®
XLamp
®
CMA1840 LED
ProDuCt DEsCriPtion
Cree’s XLamp
®
High-Current LeD Array
family is optimized for best-in-class
lumen output, efficacy and reliability at
high drive currents. XLamp CMA LeDs
share the same package design and
LeS sizes as Cree’s industry-leading
CXA2 Standard Density LeDs, enabling
lighting manufacturers to address a
range of performance requirements for
applications such as track, downlight
and outdoor lighting using a single
easy-to-use platform.
High-Current LeD
Arrays
are
now
fEAturEs
•
•
•
•
•
14-mm optical source
Optical design consistent with
CXA1830 and CXB1830 LeDs
Cree easyWhite
®
2-, 3- and 5-step
binning
Premium Color 2- and 3-step binning
Standard & Premium Color LeDs
available in 70, 80, 90 and 95 CRI
minimum options
•
•
•
•
•
•
eTone™ LeDs available in 90 CRI
minimum option
Forward voltage option: 36-v class
85 °C binning and characterization
Maximum drive current: 2300 mA
115° viewing angle, uniform
chromaticity profile
Top-side solder connections
RoHS and ReACh compliant
UL
®
recognized component
(e349212)
•
•
tAbLE of ContEnts
Characteristics ............................................2
Operating Limits ..........................................3
Flux Characteristics, Order Codes & Bins -
Standard LeDs .............................................4
Flux Characteristics, Order Codes & Bins -
Standard LeDs, Premium Color ..................5
Flux Characteristics, Order Codes and
Bins - eTone™ LeDs .....................................6
Relative Spectral Power Distribution -
Standard LeDs .............................................7
Relative Spectral Power Distribution -
Standard LeDs, Premium Color ..................8
Relative Spectral Power Distribution -
eTone™ LeDs ............................................ 10
electrical Characteristics ......................... 10
Relative Luminous Flux ............................ 11
Typical Spatial Distribution...................... 11
Performance Groups - Chromaticity ....... 12
Premium Color Performance Groups -
Chromaticity ............................................. 13
Cree easyWhite
®
Bins Plotted on the
1931 CIe Color Space .............................. 14
Cree Premium Color Bins Plotted on the
1931 CIe Color Space .............................. 15
Bin and Order Code Formats ................... 17
Mechanical Dimensions .......................... 18
Thermal Design ........................................ 19
Notes ........................................................ 20
Packaging ................................................. 21
available in two different versions:
Standard and eTone LeDs.
The eTone version delivers beautiful 90
CRI light quality at the same efficacy
as today’s standard 80 CRI LeDs.
Featuring the same mechanical and
optical characteristics as the Standard
version, the eTone LeDs allow easy
upgrades from 80 CRI to 90 CRI without
sacrificing performance.
WWW.CREE.Com/XLAmp
Copyright © 2017-2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, the Cree logo,
XLamp
®
and EasyWhite
®
are registered trademarks and eTone™ is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
Cma1840 LED
oPErAting LiMits
The maximum current rating of the CMA1840 depends on the case temperature (Tc) when the LeD has reached thermal equilibrium
under steady-state operation. The graph shown below assumes that the system design employs good thermal management (thermal
interface material and heat sink) and may vary when poor thermal management is employed. either solder pad shown in the Mechanical
Dimensions section on page 3 can be used as the Tc measurement point.
Another important factor in good thermal management is the temperature of the Light emitting Surface (LeS). Cree recommends a
maximum LES temperature of 140 °C to ensure optimal LED lifetime. Please refer to the Thermal Design section on page 3 for more
information on LeS temperature measurement.
CMA1840
2400
2200
2000
1800
1600
85 °C, 2300 mA
Standard LEDs
If (mA)
1400
1200
1000
800
600
400
200
0
0
25
50
75
100
125
150
125 °C, 885 mA
CMA1840 - eTone
1300
1200
1100
Case Temperature (°C)
85 °C, 1260 mA
eTone LEDs
1000
900
800
If (mA)
700
600
500
400
300
200
100
0
0
25
50
75
100
125
150
Case Temperature (°C)
Copyright © 2017-2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, the Cree logo, XLamp
®
and EasyWhite
®
are registered trademarks and
eTone™ is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
Cma1840 LED
fLuX ChArACtEristiCs, orDEr CoDEs & bins - stAnDArD LEDs (i
f
= 1100 mA,
t
J
= 85 °C)
The following table provides order codes for XLamp CMA1840 LeDs. For a complete description of the order code nomenclature, please
see the Bin and Order Code Formats section (page 17).
nominal
CCt
Cri
Min.
70
6500 K
80
70
5700 K
80
90
70
5000 K
80
90
70
4000 K
80
90
80
3500 K
90
70
3000 K
80
90
80
2700 K
90
2200 K
80
92
82
3979
4167
4278
4481
27H
92
73
82
92
82
4357
5203
4929
4167
4730
4685
5595
5300
4481
5086
30H
30H
27H
CMA1840-0000-
000N0H0A30H
CMA1840-0000-
000N0U0A30H
CMA1840-0000-
000N0H0A27H
CMA1840-0000-
000N0U0A27H
30G
30G
27G
27G
22G
CMA1840-0000-
000N0H0A30G
CMA1840-0000-
000N0U0A30G
CMA1840-0000-
000N0H0A27G
CMA1840-0000-
000N0U0A27G
CMA1840-0000-
000N0H0A22G
35H
82
73
82
92
73
82
92
73
82
92
82
5312
5802
5420
4610
5634
5263
4610
5591
5203
4480
5076
5712
6238
5828
4957
6058
5659
4957
6012
5595
4817
5458
40H
40H
35H
CMA1840-0000-
000N0H0A40H
CMA1840-0000-
000N0U0A40H
CMA1840-0000-
000N0H0A35H
CMA1840-0000-
000N0U0A35H
40G
40G
35G
35G
CMA1840-0000-
000N0H0A40G
CMA1840-0000-
000N0U0A40G
CMA1840-0000-
000N0H0A35G
CMA1840-0000-
000N0U0A35G
30e
CMA1840-0000-
000N0B0A30e
50G
50G
CMA1840-0000-
000N0H0A50G
CMA1840-0000-
000N0U0A50G
40e
CMA1840-0000-
000N0B0A40e
57G
CMA1840-0000-
000N0U0A57G
50e
CMA1840-0000-
000N0B0A50e
65e
57e
57e
typ
73
Minimum
Luminous
Flux (lm)
5686
typical
Luminous
Flux (lm)
6114
2-step
group
order Code
group
3-step
order Code
group
65e
5-Step
order Code
CMA1840-0000-
000N0B0A65e
CMA1840-0000-
000N0H0A65e
CMA1840-0000-
000N0B0A57e
CMA1840-0000-
000N0H0A57e
Notes
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a tolerance of ±2 on CRI
measurements. See the Measurements section (page 20).
•
For 80 CRI minimum LeDs, CRI R9 minimum is 0 with a ±2 tolerance. For 90 CRI minimum LeDs, CRI R9 typical is 60.
Copyright © 2017-2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, the Cree logo, XLamp
®
and EasyWhite
®
are registered trademarks and
eTone™ is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
Cma1840 LED
fLuX ChArACtEristiCs, orDEr CoDEs & bins - stAnDArD LEDs, PrEMiuM CoLor (i
f
= 1100 mA,
t
J
= 85 °C)
fidelity
nominal
CCt
4000 K
3500 K
3000 K
2700 K
Cri
Min.
95
95
95
95
typ
98
98
98
98
Minimum
Luminous
Flux (lm)
4013
3905
3652
3457
typical
Luminous
Flux (lm)
4315
4199
3926
3717
2-step
group
L5A
35H
30H
27H
order Code
CMA1840-0000-000N0Z0AL5A
CMA1840-0000-000N0Z0A35H
CMA1840-0000-000N0Z0A30H
CMA1840-0000-000N0Z0A27H
specialty
nominal
CCt
3100 K
Cri
Min.
90
80
3000 K
90
95
typ
92
82
92
98
Minimum
Luminous
Flux (lm)
4167
4929
4167
3652
typical
Luminous
Flux (lm)
4481
5300
4481
3926
L7C
CMA1840-0000-
000N0Z0AL7C
L7B
CMA1840-0000-
000N0H0AL7B
30Q
CMA1840-0000-
000N0U0A30Q
30U
CMA1840-0000-
000N0U0A30U
2-step
group
order Code
group
31Q
order Code
CMA1840-0000-
000N0U0A31Q
3-step
group
order Code
Notes
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a tolerance of ±2 on CRI
measurements. See the Measurements section (page 20).
•
For 80 CRI minimum LeDs, CRI R9 minimum is 0 with a ±2 tolerance. For 90 CRI minimum LeDs, CRI R9 typical is 60.
Copyright © 2017-2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, the Cree logo, XLamp
®
and EasyWhite
®
are registered trademarks and
eTone™ is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
