PM5-PPGDW12.0: DescriptionPNL MNT W/ WIRE 555NM 10MCD GRN; CategoryLED optoelectronic/LED; File Size111KB，2 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

PM5-PPGDW12.0 Overview

PNL MNT W/ WIRE 555NM 10MCD GRN

PM5-PPGDW12.0 Parametric

Parameter Name	Attribute value
type	LED
lamp color	green
Lens color	white
Lens transparency	scattering
grade	AC/DC
Voltage	8 V ~ 48 V
current	20mA
Panel opening shape	round
Panel opening size	0.39"（9.91mm）
Lens style/size	Round, with flat top, 9.70mm
millicandela level	10mcd
Wavelength - Peak	555nm
perspective	120°
Terminal type	Lead - 12" (304.80mm)
Intrusion protection	IP67
characteristic	-

Preview

Download Datasheet

View All

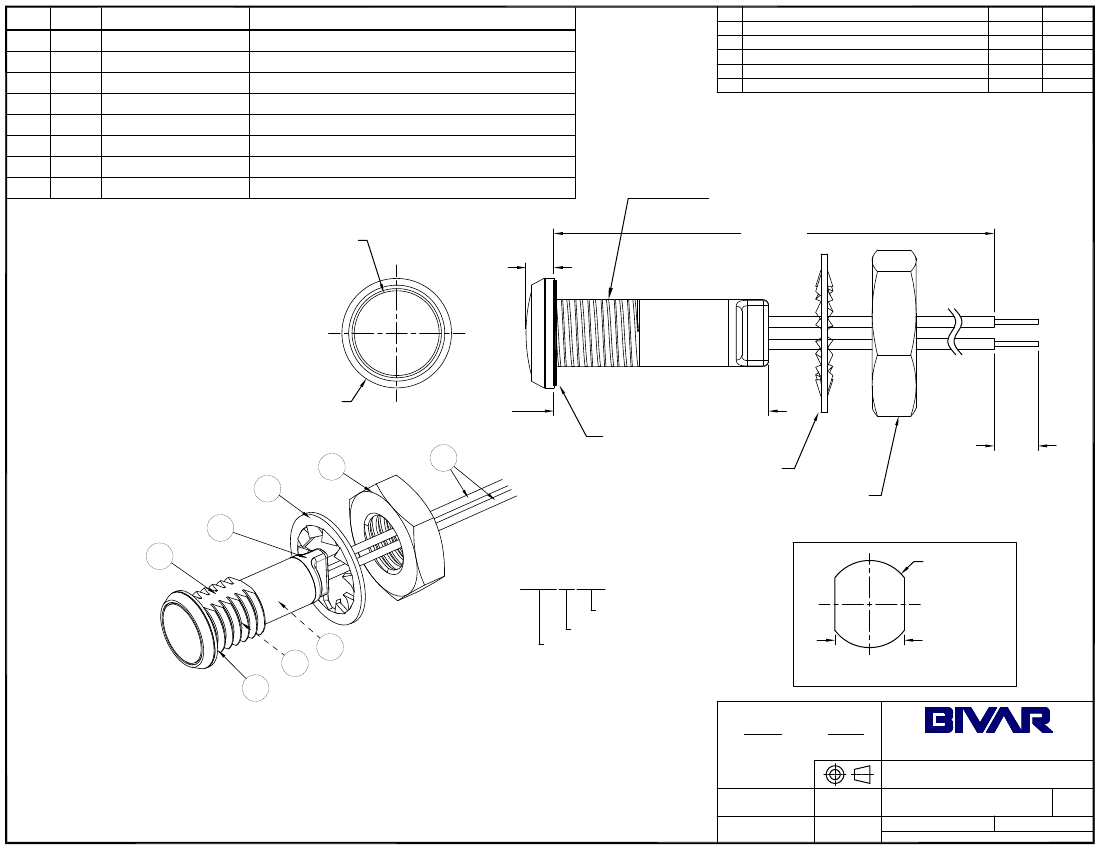

ITEM

1

2

3

4

5

6

7

8

Q'TY

1

2

PART NUMBER

PM5-PE

PM5-HP

PM5-VS

WASH-1008

NUT-1003

5XX

PCBA-1081

BWS24-1061-BK

PART DESCRIPTION

5mm Polycarbonate Panel Mount Extended Housing

5mm Panel Mount Wide Range Plug

5mm Sealing Ring

10mm Internal Tooth Lock Washer

10mm Thin Nut

5mm LED, SEE SHEET #2

8~48V Universal Power Board

24AWG Wire, UL Style 1061, Black

REV.

DESCRIPTION

DATE

APPROVED

A

B

C

Engineering Release

Updated Descriptions

Updated LED Optical Characteristics

04/12/12

03/21/13

09/15/15

T. Y.

J. C.

M10x1.5 Thread

XX.X +0.20

-0.05

Ø0.380 [Ø9.7mm]

0.124 [3.2mm]

Ø0.490 [Ø12.4mm]

0.96 [24.4mm]

SEALING RING

0.20 [5.0mm]

Stripped &

Tinned

5

4

2

1

8

LOCK WASHER

M10 NUT

MOUNTING TORQUE 0.35 Nm

EXAMPLE:

PM5-PRDW6.5

Wire Length in 0.5" Increments

Ø.390+.003

-.002

7

6

3

LED Color & Lens Appearance.

Series

0.310 [7.9mm]

Recommended Mounting Hole

1.5mm-6mm Panel Thickness

NOTES:

1. SEALED TO IP67 RATING

2. WIDE RANGE VOLTAGE INPUT, 8-48 VAC/VDC

3. BI-POLAR OPERATION

4. ROHS COMPLIANT

5. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

6. INSERT SEALING RING ON PANEL MOUNT PRIOR TO PANEL INSERTION

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

IP67 Rated Panel Mount

Indicator w/ Wire

REVISION:

PART NO:

T. Yin

CHECKED:

04/12/12

DATE:

PM5-PXXXWXX.X

C

B. Oliver

04/12/12

CAGE CODE : 32559

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
