FTE-132-02-G-DV-A-P datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTE-132-02-G-DV-A-P

FTE-132-02-G-DV-A-P: Description.8MM MICRO TERMINAL STRIP; CategoryThe connector The connector; File Size799KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTE-132-02-G-DV-A-P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FTE-132-02-G-DV-A-P	-	-	View	Buy Now

FTE-132-02-G-DV-A-P Overview

.8MM MICRO TERMINAL STRIP

FTE-132-02-G-DV-A-P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW PROFILE, SHROUDED
Board mount options	POSITIONING PIN
body width	0.164 inch
subject depth	0.055 inch
body length	1.008 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	10u inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Evacuation force-minimum value	4.448 N
Base Number Matches	1

Preview

Download Datasheet

View All

F-219

FTE–155–01–G–DV

FTE–120–01–G–DV–A

FTE–130–01–G–DV–ES

(0.80 mm) .0315"

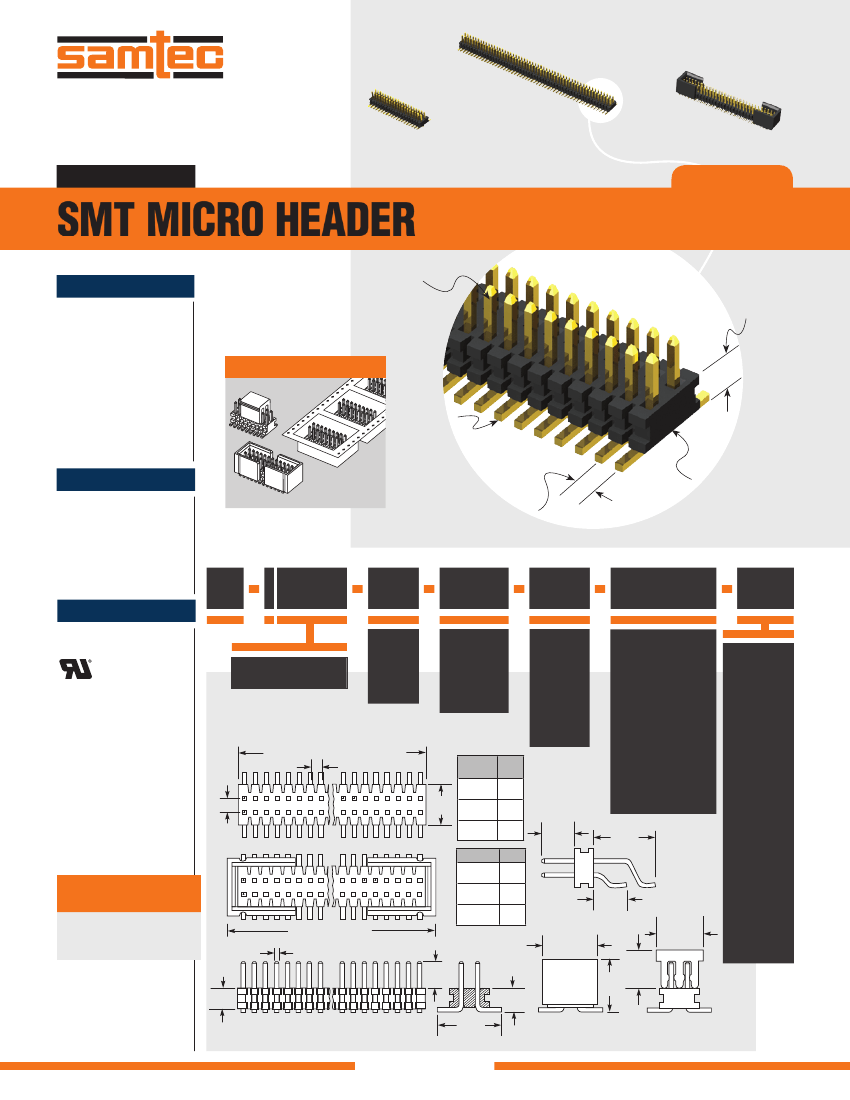

FTE SERIES

SMT MICRO HEADER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?FTE

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating (FTE/CLE):

2.7 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

CLE

Choice of

post heights

Low profile

(1.70 mm)

.067"

OPTIONS

–P OPTION

Surface

Mount

PROCESSING

Lead-Free Solderable:

Yes

-DV Lead Coplanarity:

(0.10 mm) .004" max

-DH Lead Coplanarity:

(0.10 mm) .004" max (05-25)

(0.15 mm) .006" max (26-50)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

–ES OPTION

–TR OPTION

Optional

End Shrouds

for blind mating

(0.80 mm) .0315"

micro pitch

FTE

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

NO.

PER PINS

ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

TAIL

OPTION

FLEX SHROUD

OPTIONS

Style –01 –DV only

(11 pins/row min.)

OTHER

OPTION

05 thru 90

= 10 µ"

(0.25 µm)

Gold on post,

Gold flash on

balance

–G

= Dual

Vertical

–DV

= Dual

Horizontal

(50 pos.

max.)

–DH

= End Shroud

–ES

No. of positions x (0.80) .0315

(0.80) .0315

180

LEAD

STYLE

(1.90)

.075

(4.45)

.175

(3.05)

.120

= End Shroud with

Locking Clips

(Manual placement

required)

–EC

= Alignment

(5 pos. min.)

Metal or

plastic at

Samtec

discretion

(–DV only)

–A

(3.05)

.120

(1.20)

.047

179

–01

–02

–03

OPTION

= End Shroud with

Guide Posts

–EP

(1.57)

.062

(4.11)

.162

(5.51)

.217

(5.08)

.200

= (2.50 mm)

.098" DIA

Polyimide

Film Pick &

Place Pad

(–DH only)

= Plastic Pick

& Place Pad

(8 pos. min.)

–DV only

–K

ALSO AVAILABLE

(MOQ Required)

• End shrouds with

board locks

• Gold flash plating

–ES

–EC

No. of positions x

(0.80) .0315 +

(0.30) .012 SQ

–P

–EP

(2.29)

.090

–DH OPTION

(4.17)

.164

(5.08) .200

(3.18) .125

= Tape & Reel

Packaging

–TR

(1.38)

.055

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(Shrouded options removed for clarity)

(1.70)

.067

(4.57)

.180

(3.18)

(4.09) .125

.161

–ES OPTION

–P OPTION
