1189: DescriptionSWITCH PUSHBUTTON SPST-NO BLUE; Categoryaccessories; File Size403KB，2 Pages; ManufacturerAdafruit; Environmental Compliance

Download Datasheet Parametric View All

1189 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1189	-	-	View	Buy Now

SWITCH PUSHBUTTON SPST-NO BLUE

Parameter Name	Attribute value
type	Standard, illuminated
circuit	SPST-NO
switch function	Off - instantaneous
Rated current	-
Actuator type	round, button, round head
Color - Actuator/Cap	Transparent (blue filter ytterbium/diffuser)
lighting type, color	LED, blue
Lighting voltage (nominal)	5 ~ 12 VDC
Installation type	Front panel installation
Terminal type	Quick Connect - 0.187" (4.7mm)
Intrusion protection	-
characteristic	arcade style
Panel opening size	Round - 24.00mm diameter
Operating temperature	-
Mechanical life	-
Electrical life	-

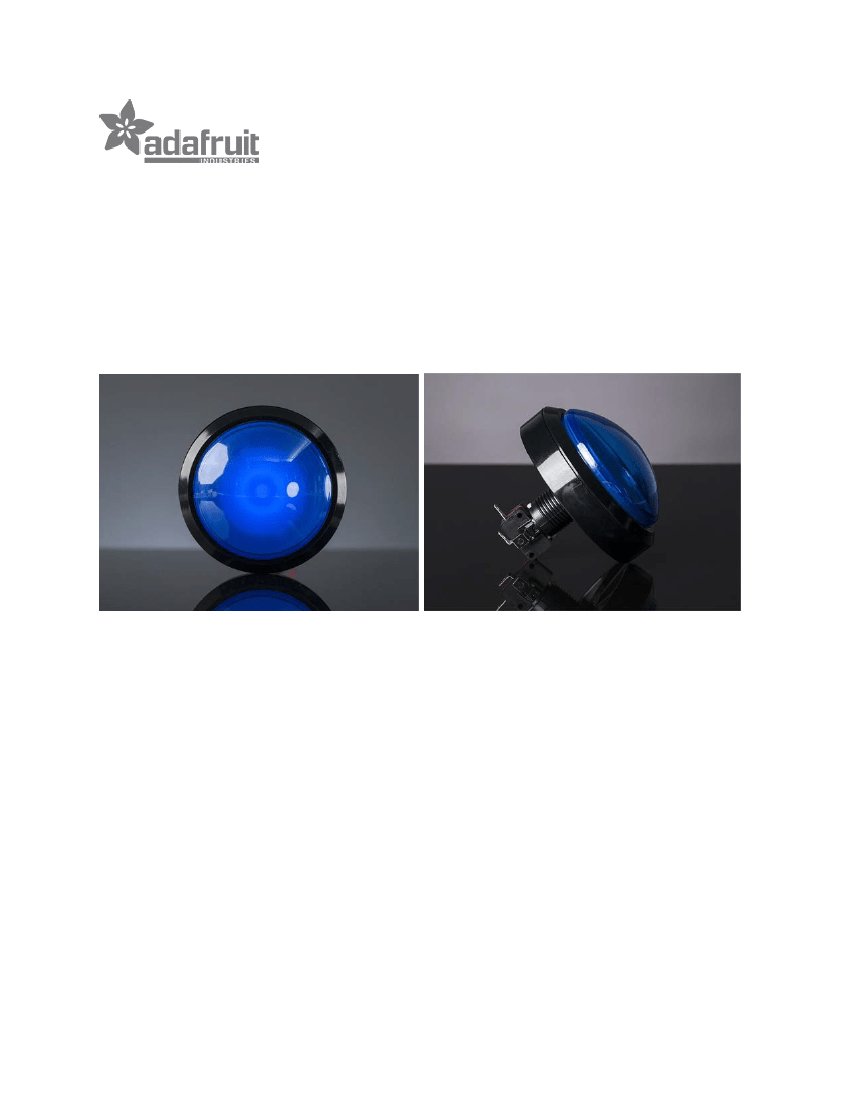

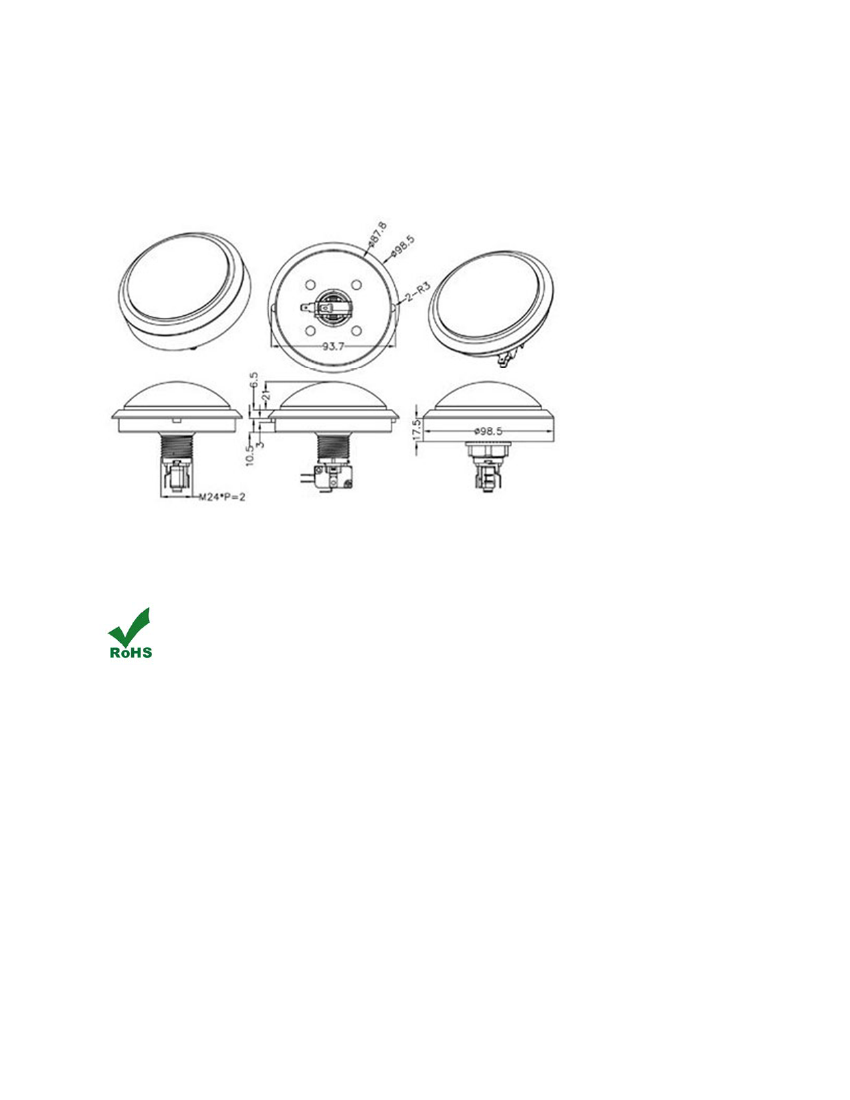

Massive Arcade Button with LED - 100mm

Blue

PRODUCT ID: 1189



Description

OMG WATCH OUT! This 100mm diameter arcade button with a

16mm deep plastic

base

is so massive and inviting it may collapse upon itself and form a black hole from

which not even light can escape! Until it does, however, it ready for all sorts of pressing

and pushing. Science has shown no one can resist pressing its shiny surface and saying

"beep!". We've seen these on some games of skill in arcades, they're easy to mount on

nearly any kind of enclosure. They're not waterproof or weatherproof, so best used

indoors.

This button has a domed blue plastic cover with a black retaining ring around it. There's

an optional LED included that will light up the button. The LED has a built in resistor so

you can run it up to 12V but given the massive size and shallow depth of the button, it

doesn't illuminate the entire button face evenly. The button activates a common arcade

microswitch (included), the switch contacts are normally open. When the button is

pressed, the contacts close.
