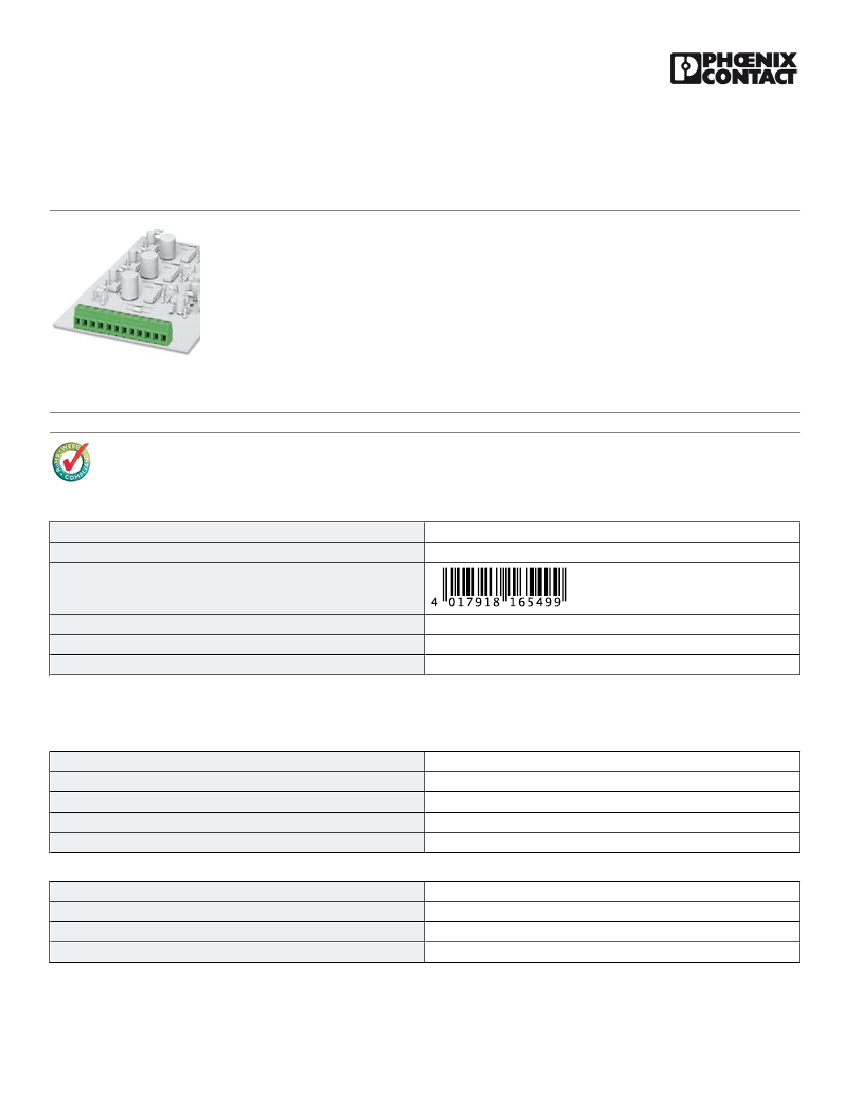

PCB terminal block - EMKDS 1,5/11-5,08 - 1897788
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 8 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 11,
Connection method: Screw connection, Mounting: Press-in, Conductor/PCB connection direction: 0 °, Color:
green
The illustration shows a 12-position
version
Key commercial data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
9.43 GRM
85369010
Poland
1 pc
50 pc
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
9.3 mm
5.08 mm
50.8 mm
1,4 mm
1.15 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
EMKDS 1,5
I
4 kV
4 kV
10/28/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1897788
PCB terminal block - EMKDS 1,5/11-5,08 - 1897788
Technical data
General
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
4 kV
250 V
400 V
630 V
EN-VDE
8A
1.5 mm²
8 A (with 1.5 mm² conductor cross section)
PA
Sn
V0
A1
7 mm
11
M2
0.22 Nm
0.25 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
0.5 mm²
26
16
0.14 mm²
0.5 mm²
0.14 mm²
0.5 mm²
0.25 mm²
0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
10/28/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1897788
PCB terminal block - EMKDS 1,5/11-5,08 - 1897788
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
30
14
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141109
27141109
27141190
27141190
27261101
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Drawings
10/28/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1897788
PCB terminal block - EMKDS 1,5/11-5,08 - 1897788

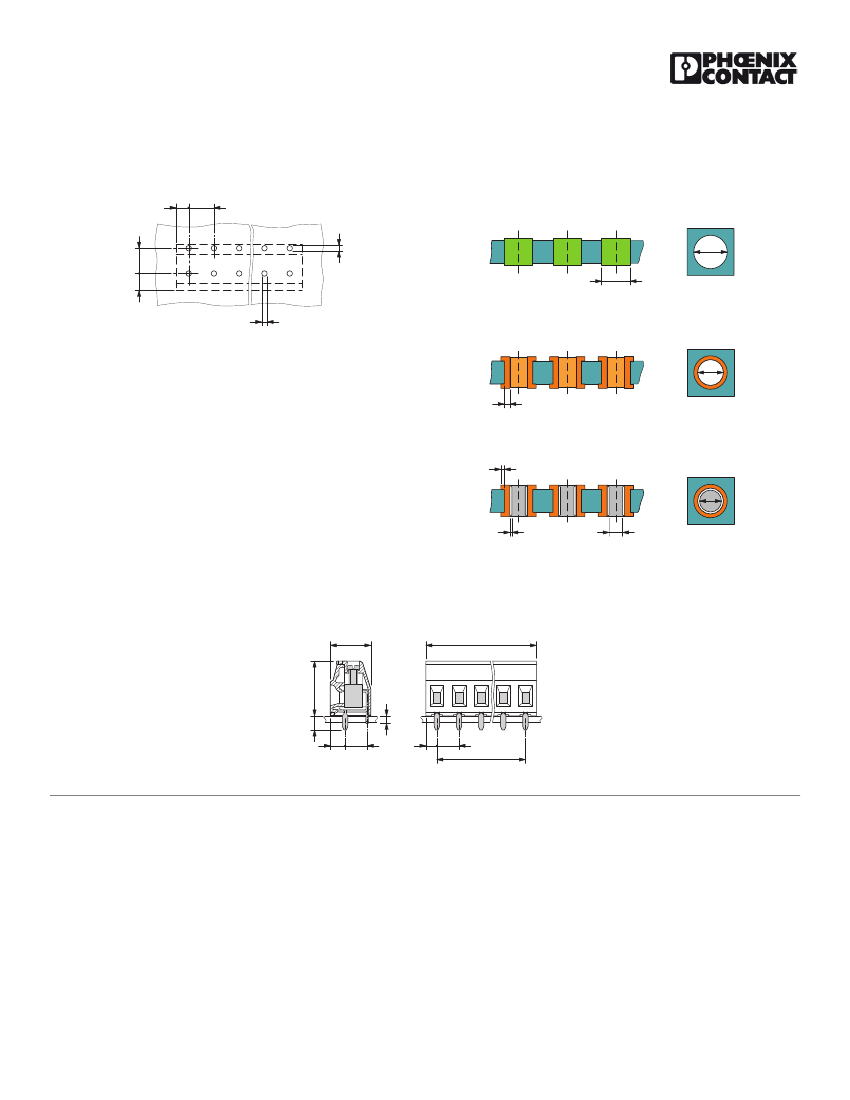

Drilling diagram
2,54
5,08
Drilling diagram
1)
1,1
5,08
Ø1,15
3,4
–0,03
Ø1,15
1,15
-0,03
–0,03
2)
min. 25 µm Cu
max. 50 µm Cu
3)
min.0,1
max. 10 µm Sn
Ø1,0
+0,09
–0,06
Ø1,0
+0,09
–0,06
Drill hole layout in FR4 or EP-GC basic material
Dimensioned drawing
9,3
a+5,08
12,6
3,5
3,4 5,08
1,7
2,54
5,08
a
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/28/2014 Page 4 / 4
