SMA 50 Ohm - Reverse Thread
Right Angle Crimp Type Plug -
Captivated Contact
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
CABLE TYPE
RG-316/U, 188, 174, 161
LMR-100, HPF-100,
RF-100
GOLD PLATED
142-5403-101
NICKEL PLATED
142-5403-106
CABLE GROUP
RG-316/u, 161,
174, 188; LMR-100
PART NUMBER
142-5403-101
142-5403-106
CRIMP HEX
.128 (3.25)
.128 (3.25)

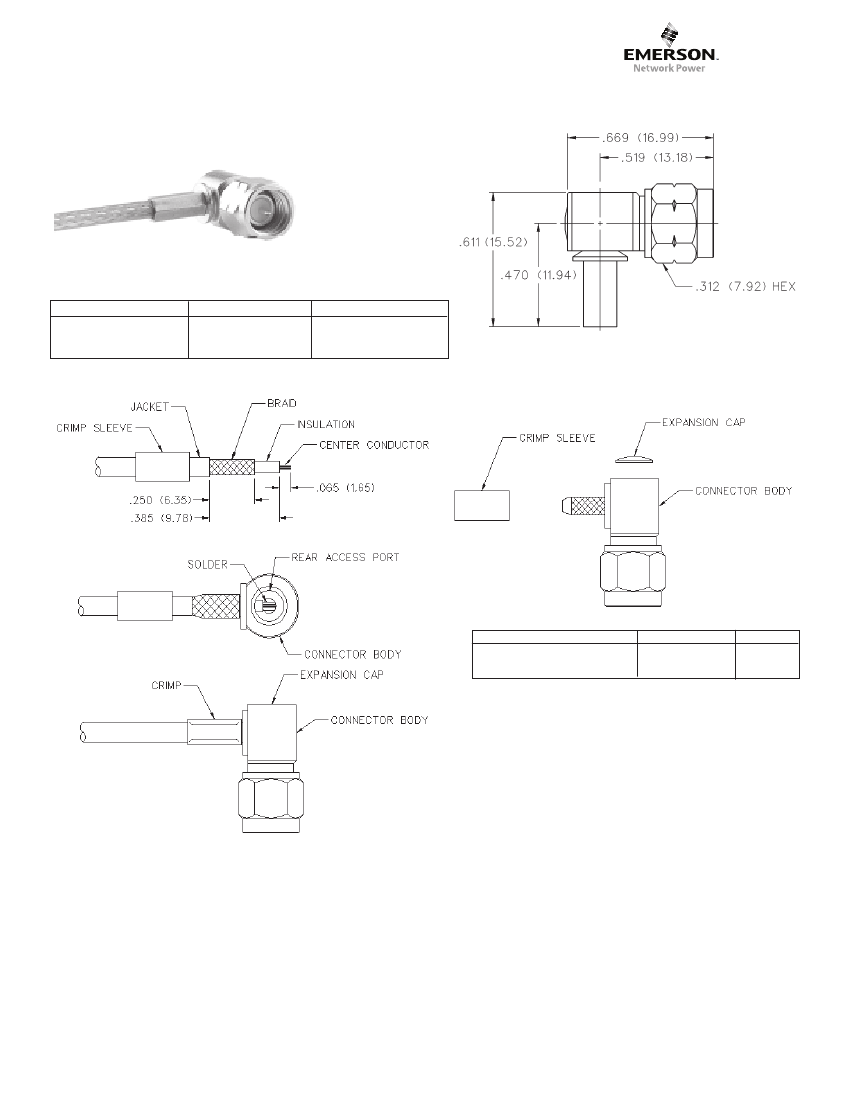

1. Identify connector parts. (3 piece parts)
2. Strip cable to dimensions shown. Do not nick braid or cen-
ter conductor. When stripping LMR-100 low loss cable,
remove foil back to where cable jacket is stripped. A wire
stripper of correct size is recommended for this step. Twist
stranded center conductor into tight bundle and tin (op-
tional). Slide crimp sleeve onto cable as shown.
3. Flare braid and slide cable into body making certain that
the cable insulation bottoms on center contact. Solder
center conductor to contact through the rear access port.
Use a minimum amount of solder for a full fillet joint.
.020
(0.51) diameter solder is recommended.
4. Arrange braid uniformly around crimp stem. Slide crimp
sleeve over braid and crimp securely using recommended
crimp tool. Place expansion cap in access port and seat
with .187 (4.75) diameter flat punch. Shrink heat shrink
tubing over crimp sleeve if applicable.
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
SMA Reverse Thread - 50 Ohm
Specifications
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
ELECTRICAL RATINGS
Impedance:
50 ohms
Frequency Range:
Flexible cable connectors ..................................................... 0-12.4 GHz
Uncabled receptacles ........................................................... 0-18.0 GHz
VSWR:
(f = GHz)
Straight
Right Angle
Cabled Connectors
Cabled Connectors
RG-316, LMR-100 cable ........... 1.15 + .02f
1.15 + .03f
RG-58, LMR-195 cable ............. 1.15 + .01f
1.15 + .02f
RG-142 cable ............................ 1.15 + .01f
1.15 + .02f
LMR-200, LMR-240 cable ............. 1.10 + .03f
1.10 + .06f
Uncabled receptacles .......................................................................... N/A
Working Voltage:
(Vrms maximum)
†
Connectors for Cable Type
Sea Level 70K Feet
RG-316; LMR-100, 195, 200 ........................................... 250
65
RG-58, RG-142, LMR-240, uncabled receptacles .... 335
8
Dielectric Withstanding Voltage:
(VRMS minimum at sea level)†
Connectors for RG-316; LMR-100, 195, 200 ...................................... 750
Connectors for RG-58, RG-142, LMR-240, uncabled receptacles .. 1000
Corona Level:
(Volts minimum at 70,000 feet)†
Connectors for RG-316, LMR-100, 195, 200 ................................... 190
Connectors for RG-58, RG-142, LMR-240, uncabled receptacles ... 250
Insertion Loss:
(dB maximum)
Straight flexible cable
connectors ................................ .06
f (GHz), tested at 6 GHz
Right angle flexible cable
connectors ................................ 0.15 f (GHz), tested at 6 GHz
Low loss flexible straight
cable connectors ............................. 0.06
f (GHz), tested at 1 GHz
Low loss flexible right angle
cable connectors ............................. 0.15
f (GHz), tested at 1 GHz
Uncabled receptacles, field replaceable ...................................... N/A
Insulation Resistance:
5000 megohms minimum
Contact Resistance:
(milliohms maximum)
After
Initial
Environmental
Center contact (straight cabled connectors
and uncabled receptacles) ............................ 3.0*
4.0*
Center contact (right angle cabled
connectors ...................................................... 4.0
6.0
Outer contact (all connectors) ............................ 2.0
N/A
Braid to body (gold plated connectors) .............. 0.5
N/A
Braid to body (nickel plated connectors) ............ 5.0
N/A
RF Leakage:
(dB minimum, tested at 2.5 GHz)
Flexible cable connectors ............................................................. -60 dB
Uncabled receptacles and adapters ................................................. N/A
RF High Potential Withstanding Voltage:
(Vrms minimum, tested at 4
and 7 MHz)
†
Connectors for RG-316; LMR-100, 195, 200 ................................... 500
Connectors for RG-58, RG-142, LMR-240, uncabled receptacles ... 670
MECHANICAL RATINGS
Engagement Design:
MIL-C-39012, Series SMA
Engagement/Disengagement Force:
2 inch-pounds maximum
Mating Torque:
7 to 10 inch-pounds
Bulkhead Mounting Nut Torque:
15 inch-pounds
Coupling Proof Torque:
15 inch-pounds minimum
Coupling Nut Retention:
60 pounds minimum
Contact Retention:
6 lbs. minimum axial force (captivated contacts)
4 inch-ounce minimum torque (uncabled receptacles)
Cable Retention:
Axial Force*
Torque
(pounds)
(in-oz)
Connectors for RG-316, LMR-100 ............ 20
N/A
Connectors for LMR-195, 200 ................... 30
N/A
Connectors for RG-58; LMR-240 .............. 40
N/A
Connectors for RG-142 ............................. 45
N/A
*Or cable breaking strength whichever is less.
Durability:
500 cycles minimum
ENVIRONMENTAL RATINGS
(Meets or exceed the applicable paragraph
of MIL-C-39012)
Temperature Range:
- 65
°
C to + 165
°
C
Thermal Shock:
MIL-STD-202, Method 107, Condition B
Corrosion:
MIL-STD-202, Method 101, Condition B
Shock:
MIL-STD-202, Method 213, Condition I
Vibration:
MIL-STD-202, Method 204, Condition D
Moisture Resistance:
MIL-STD-202, Method 106
MATERIAL SPECIFICATIONS
Bodies:
Brass per QQ-B-626, gold plated* per MIL-G-45204 .00001" min.
or nickel plated per QQ-N-290
Contacts:
Male - brass per QQ-B-626, gold plated per MIL-G-45204
.00003" min.
Female - beryllium copper per QQ-C-530, gold plated per MIL-
G-45204 .00003" min.
Nut Retention Spring:
Beryllium copper per QQ-C-533. Unplated
Insulators:
PTFE fluorocarbon per ASTM D 1710 and ASTM D 1457 or
Tefzel per ASTM D 3159
Expansion Caps:
Brass per QQ-B-613, gold plated per MIL-G-45204
.00001" min. or nickel plated per QQ-N-290
Crimp Sleeves:
Copper per WW-T-799 or brass per QQ-B-613, gold
plated per MIL-G-45204 .00001" min. or nickel plated per QQ-N-290
Mounting Hardware:
Brass per QQ-B-626 or QQ-B-613, gold plated per
MIL-G-45204 .00001" min. or nickel plated per QQ-N-290

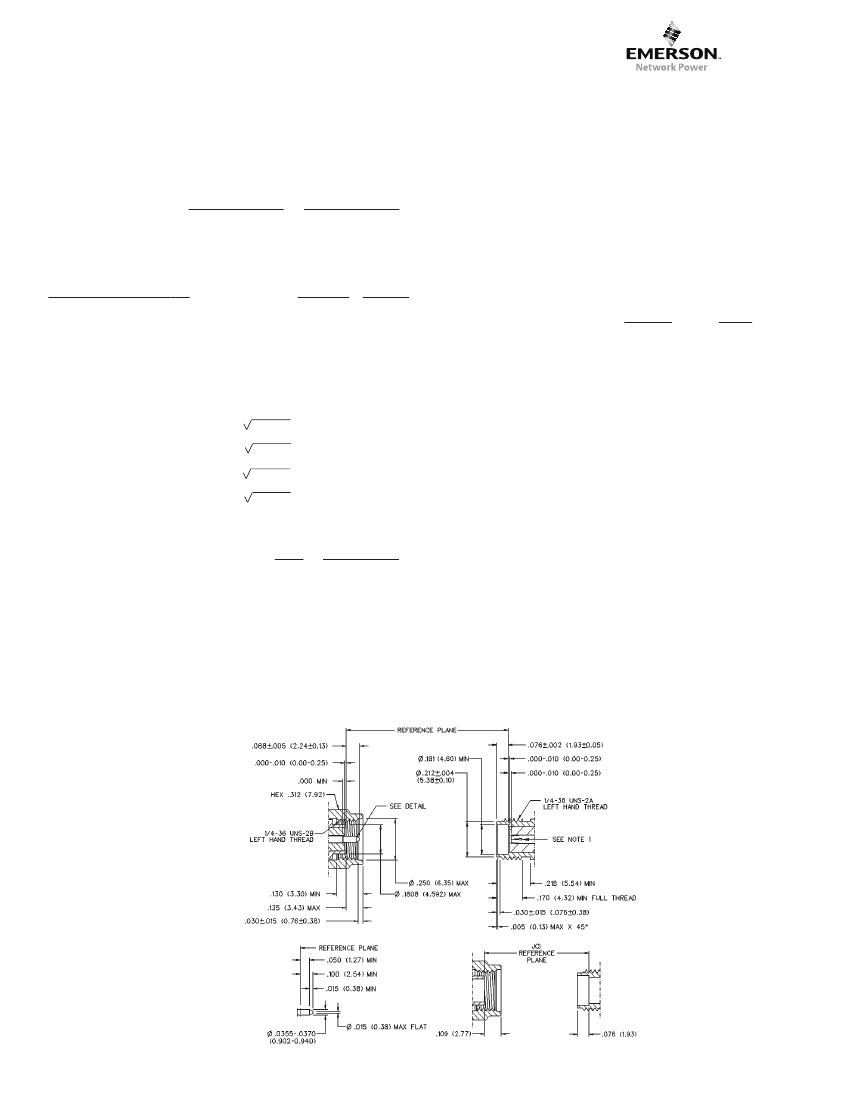

Mating Engagement for SMA Reverse Thread Series per FCC Rule 15 Non-Standard Interface
JACK
PLUG
NOTES
1. ID OF CONTACT TO
MEET VSWR, CONTACT
RESISTANCE AND
INSERTION
WITHDRAWAL FORCES
WHEN MATED WITH DIA
.0355-.0370 MALE PIN.
†Avoid user injury due to misapplication.
See safety advisory definitions
inside front cover.
JACK
PLUG
