Datasheet> All Categories > The connector> ED790/12

Preview

ED790/12: DescriptionTERM BLOCK 5MM 2ROW 12POS PCB; CategoryThe connector; File Size658KB，1 Pages; ManufacturerOn Shore Technology Inc.; Environmental Compliance

Download Datasheet Parametric View All

ED790/12 Overview

TERM BLOCK 5MM 2ROW 12POS PCB

ED790/12 Parametric

Parameter Name	Attribute value
Number of levels	2
Number of pins per level	12
spacing	0.197"（5.00mm）
Mating direction	Horizontal, with board
current	20A
Voltage	300V
Wire gauge	12-30 AWG
Installation type	Through hole
wire termination	Screws - Lift Cage Clamp
characteristic	-
color	green
Operating temperature	-30°C ~ 105°C
Shell material	Polyamide (PA), nylon
Contact material - plating	brass
Fixture Material - Plating	copper
Screw material - coating	-
Torque - Screws	0.5 Nm（4.4 Lb-In）
Thread	M3

Preview

Download Datasheet

View All

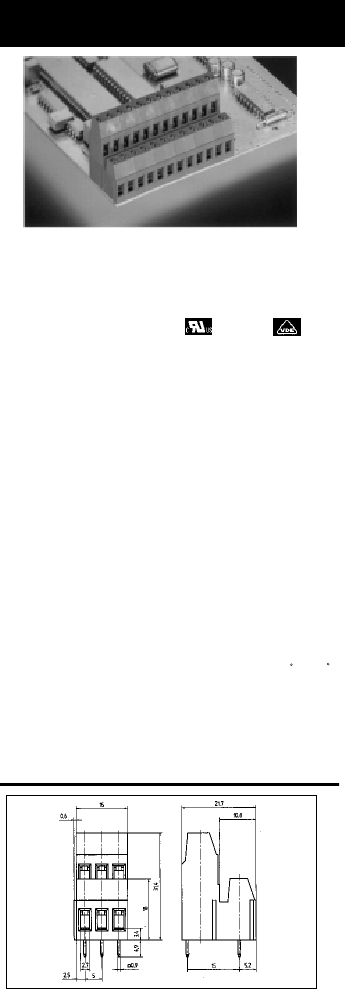

ED790/X

2-12 poles, Spacing 5.0 mm

insert required no. of poles

x

How to order see page 5

Ratings:

Rated Voltage

Rated Current

Wire Size

Test Voltage

Rated Torque/ScrewSize

Max. Rated Cross Section

Single Wire (solid)

Stranded Wire (flexible)

Stranded wire with Ferrules

Dimensions

Spacing

PCB Hole Diameter

Stripped Length

Materials

Insulating Material

Flammability Class

Temperature Range

Terminal Block

Wire Guard

Color

Green

300 V

20 A

AWG 30-12

250 V

24 A (T60)

2.5 mm

2

2.0 kV

0.5 Nm/M3

4.0 mm

2

2.5 mm

2

2.5 mm

2

5.0 mm

1.3 mm

8.0 mm

PA

UL94 V-0

-30 C/+105 C

CuZn

Cu
