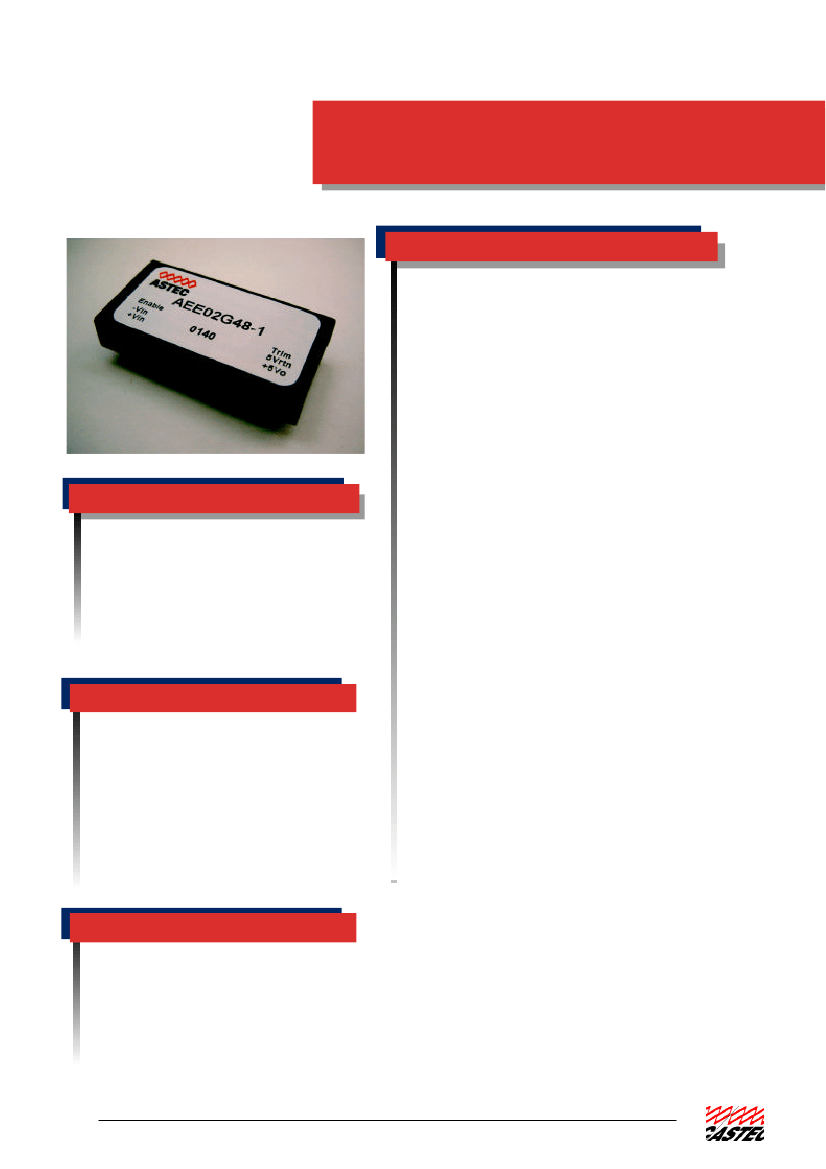

10 Watts
AEE01,02
Total Power:
Input Voltages:
No. of Outputs:
10 Watts
48V, 24V
Single
Electrical Specs
Input
Input range
18 to 36 VDC
36 to 72 VDC
79% typical (5V)
Efficiency
Output
Voltage tolerance
Overall regulation
Noise/ripple
Transient response
±1.0% (±2.0% for 3.3V)
±1% max
1% (mV P-P)
200 usec typical (50% step load
change to within 5%Vo)
±0.02 %Vo/°C
330kHz
Special Features
•
•
•
•
•
•
•
10 W, Single output
2:1 Input range
1.0" x 2.0" x 0.33 case
Replaces AA10B
Industry standard package
Low Profile
Low Cost
Temperature Regulation
Switching frequency
Isolation
I/O isolation
Isolation Resistance
500 VDC
300 Mohms
Environmental
Operating base temperature range:
-25°C to +95°C
Storage temperature: -40°C to +105°C
MTBF: 3 Million Hours (Belcore TR332)
Safety
UL
CSA
TUV
UL1950 Recognition
CSA22.2-950 Recognition
EN60950 Recognition
2
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
Ordering Information
Input
Voltage
18-36 V
18-36 V
18-36 V
18-36 V
18-36 V
36-72 V
36-72 V
36-72 V
36-72 V
36-72 V
Output
Voltage
3.3 @ 2.5 A
5.0 @ 2.0 A
8.0 @ 1.25A
12.0 @ 0.84 A
15.0 @ 0.67 A
3.3 @ 2.5 A
5.0 @ 2.0 A
8.0 @ 1.25 A
12.0 @ 0.84 A
15.0 @ 0.67 A
Efficiency
76%
78%
78%
82%
82%
77%
79%
77%
84%
86%
Model Number
AEE02F24
AEE02A24
AEE01L24
AEE00B24
AEE00C24
AEE02F48
AEE02A48
AEE01L48
AEE00B48
AEE00C48

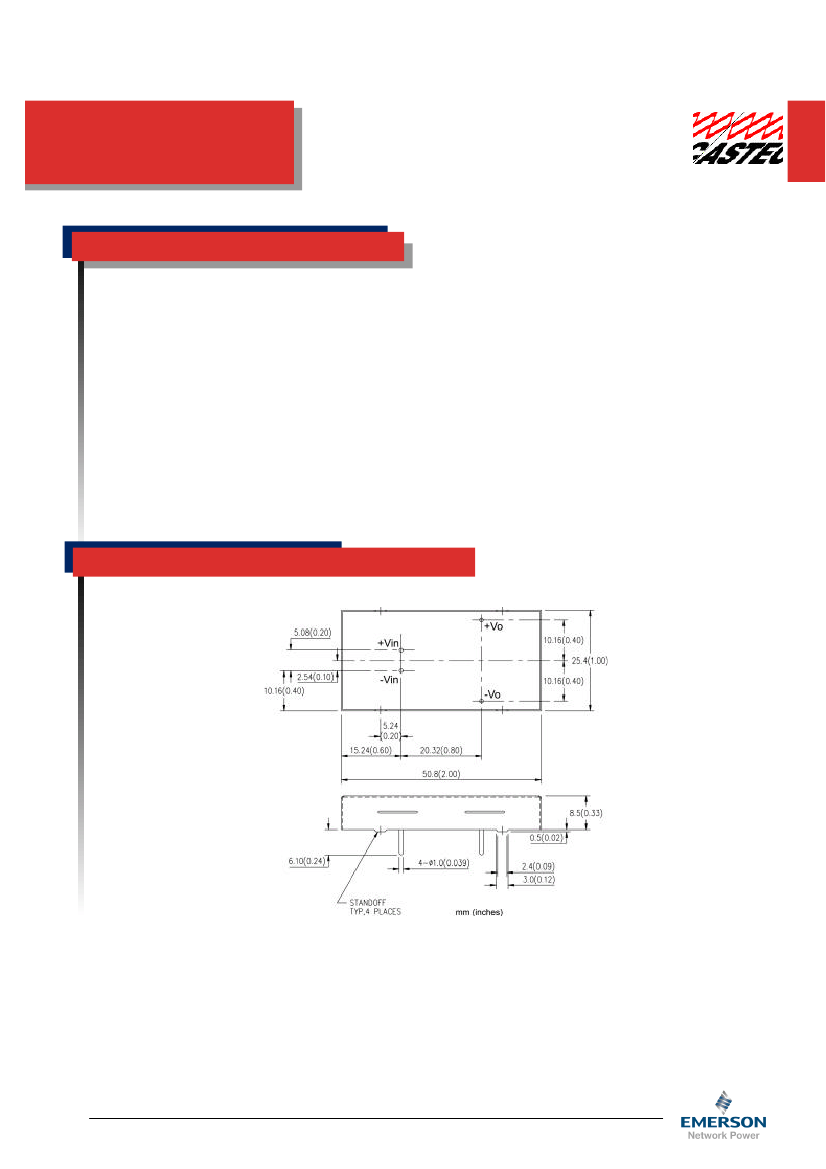

Mechanical Dimensions and Pin Assignments
Notes:
1. 20 MHz bandwidth. An external 0.1 uf ceramic capacitor
is recommended to be placed from +V out to comm.
2. All specifications are typical at nominal line, full load,
and 25°C unless otherwise noted.
3. All specifications subject to change without notice.
4. Mechanical drawings are for reference only.
www.astec.com
Rev:July 03
3
