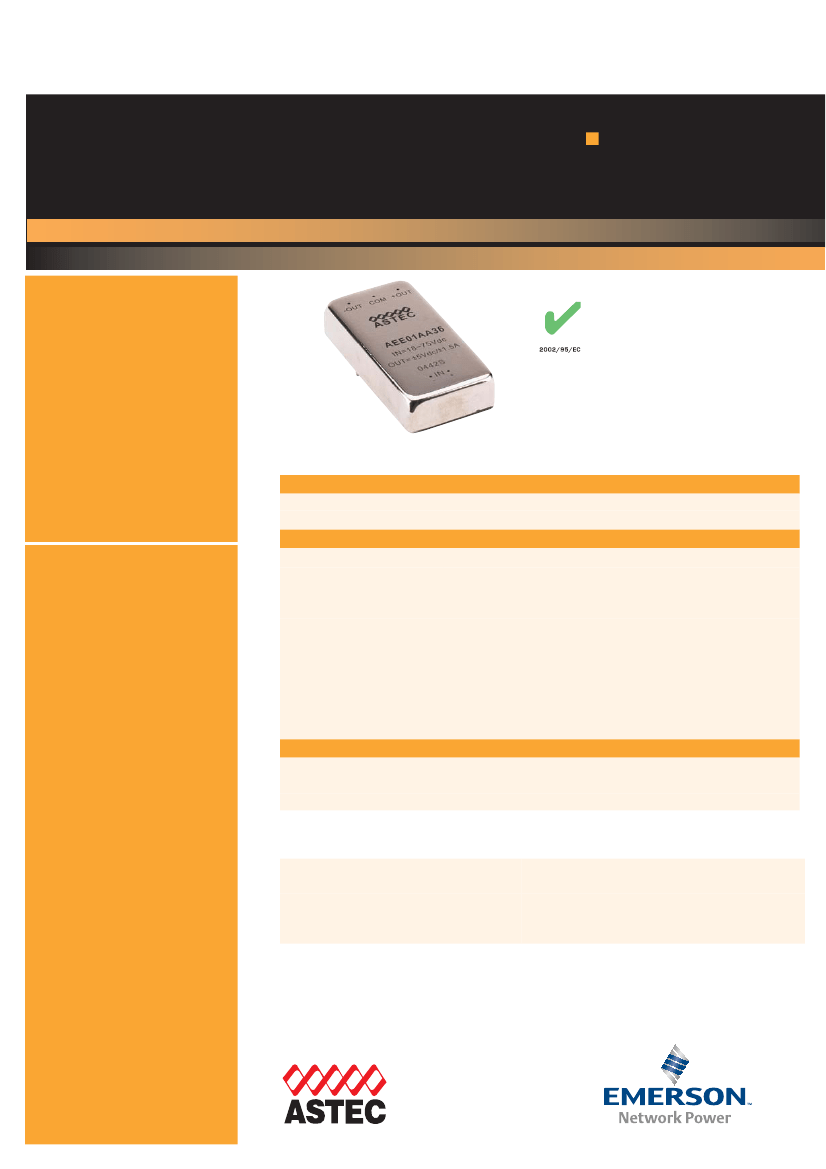

AEE Series
15 Watts
Total Power:
15 Watts
Input Voltage: 12V, 24V or 48V
# of Outputs: Single, Dual
Rev. 03.03.06
AEE 15W Series
1 of 2
RoHS
Electrical Specifications
Input
Input range
Efficiency
2
9 to 36 VDC; 18 to 75 VDC
84%@12Vo
±2.0%
±0.5%
Single output: ±1.0%
Dual output: ±TBD%
3.3Vo: 100mV
5.0Vo: 100mV
12Vo: 120mV
15Vo: 120mV
Auto-restart
300KHz
±0.02 /°C
1500 VDC min.
10Mohm
1000pF
Output
Special Features
•
•
•
•
•
Encapsulated
4:1 input range
1" X 2” package
1500Vdc I/O isolation
Single and Dual output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
Short circuit protection
Switching frequency
Temperature coefficient
Isolation
I/O isolation
Insulation resistance
Insulation capacitance
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
MTBF
RoHS Compliant
-40°C to +71°C (no derating)
-55°C to +105°C
5% to 95% (non-condensing)
>1 Million hours
Safety
CE Mark
Embedded Power for
Business-Critical Continuity
Ordering Information
Input
Output 1
Maximum
Output 2 Voltage
Model Number
Voltage
Voltage
Power
13.2W
AEE04F18-L
9 -3 6V
3.3V @ 4A
15W
AEE03A18-L
9 -3 6V
5V @ 3A
15W
AEE01B18-L
9 -3 6V
12V @ 1.25A
15W
AEE01C18-L
9 -3 6V
15V @ 1A
-5V @ 1.5A
15W
AEE01AA18-L
9 -3 6V
5V @ 1.5A
-12V @ 0.625A
15W
AEE00BB18-L
9 -3 6V
12V@ 0.625 A
-15V @ 0.5A
15W
AEE00CC18-L
9 -3 6V
15V @ 0.5A
13.2W
AEE04F36-L
18 - 75V
3.3V @ 4A
15W
AEE03A36-L
18 - 75V
5V @ 3A
15W
AEE01B36-L
18 - 75V
12V @ 1.25A
15W
AEE01C36-L
18 - 75V
15V @ 1A
-5V @ 1.5A
15W
AEE01AA36-L
18 - 75V
5V @ 1.5A
-12V @ 0.625A
15W
AEE00BB36-L
18 - 75V
12V@ 0.625 A
-15V @ 0.5A
15W
AEE00CC36-L
18 - 75V
15V @ 0.5A
Please contact Astec for information on other output voltages, power ranges and configurations.
Available in RoHS 6 version only.
Astec Power
Rev. 03.03.06
AEE 15W Series
2 of 2
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Technical Support: +1 888 41 ASTEC
or +1 407 241 2752
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Units 2111-2116, Level 21
Tower 1, Metroplaza
223, Hing Fong Road
Kwai Fong, New Territories
Hong Kong
Telephone: +852 2437 9662
Facsimile: +852 2402 4426

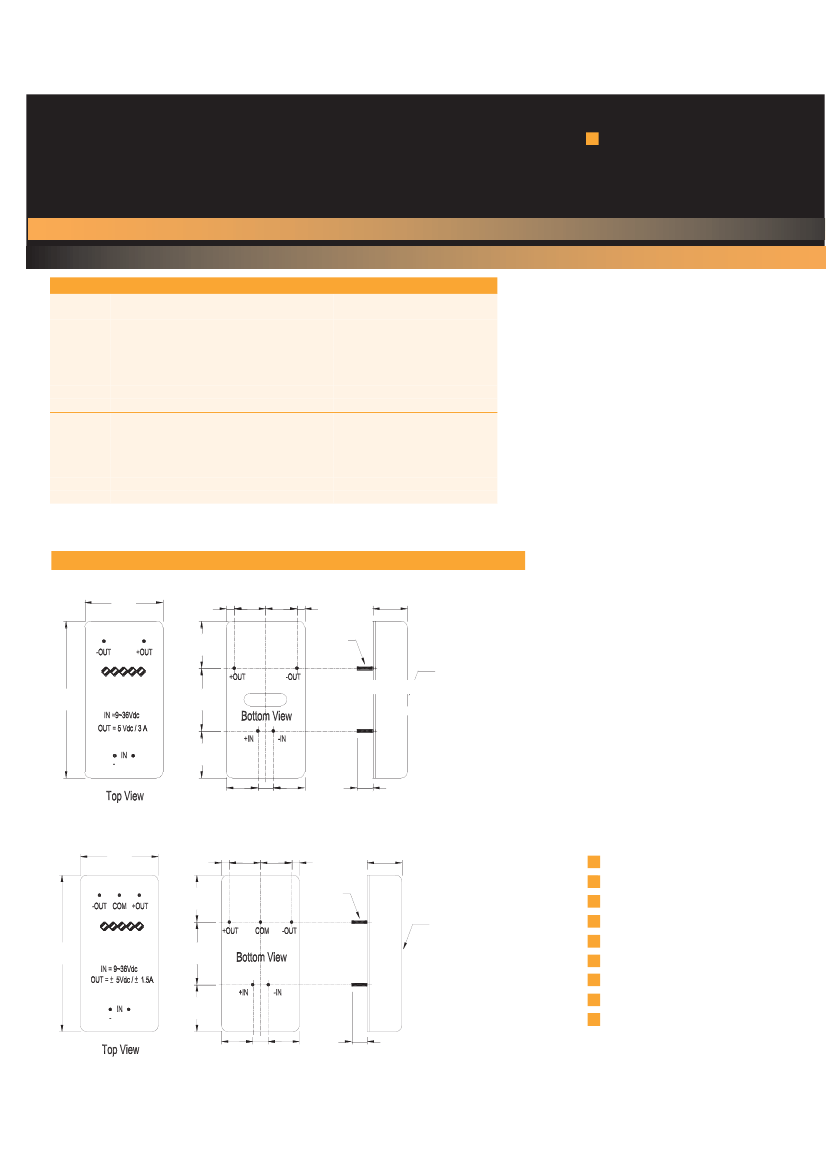

Mechanical Drawing
25.40
(1.00)
2.54
(0.10)
10.16
(0.40)
10.16
(0.40)
2.54
(0.10)
11.30
(0.44)
15.24
(0.60)
£p
1.00
(0.04)
Printed Fa
