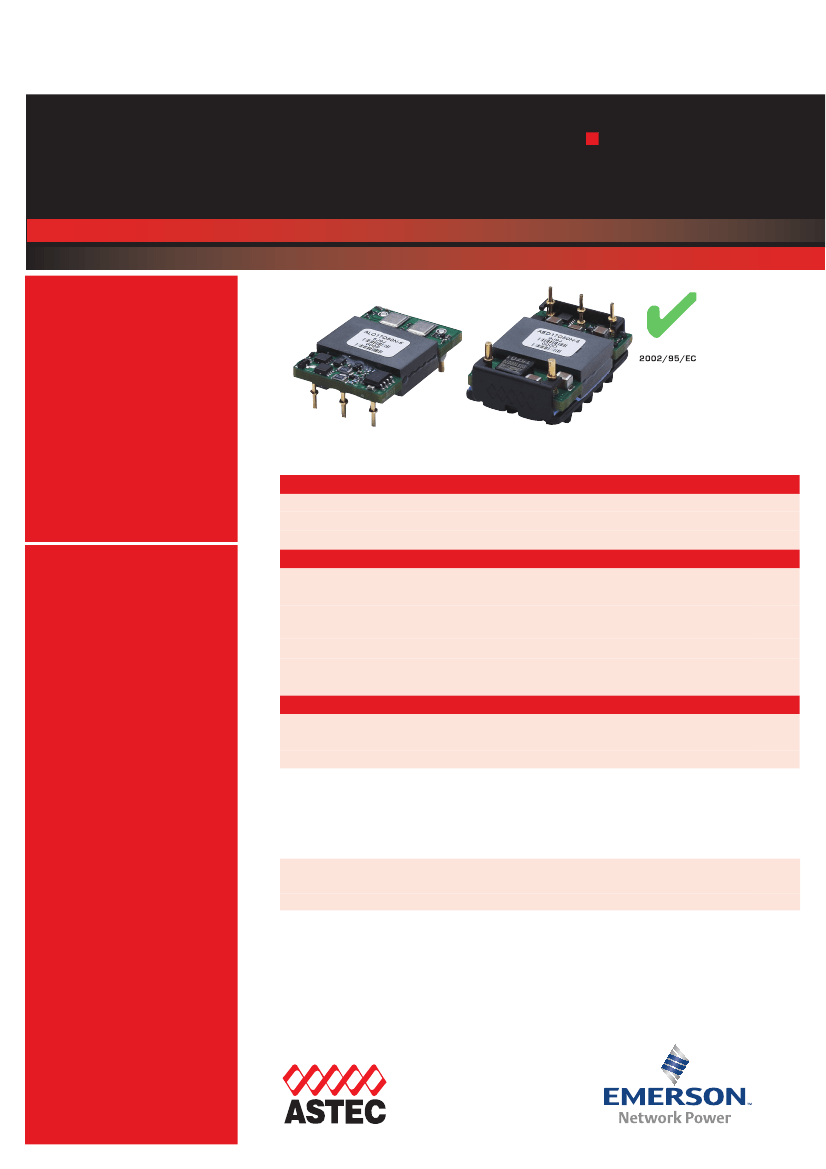

AED/ALD17
150 Watts
Total Power:
150 Watts
Input Voltage: 48V
# of Outputs: Single
Rev. 04.20.06
AED/ALD17
1 of 2
RoHS
Electrical Specifications
Input
Input range
Efficiency
Over Voltage Protection
36V to 55V
96%@ 9.6V (typical)
60V typical
17A max
-25% / +15% Vo, nom
5% Vo (typical)
90mV (typical)
Auto-restart
165kHz
TTL compatible (positive or negative enable logic)
2000Vdc max
Output
Special Features
• Intermediate Bus Converter
for Front End
(DPA) Distributed Power
Architecture application
• High efficiency (96% Typical)
• Industry standard package
16th Brick 0.90” x 1.30"
• High capacitive load limit on
start-up
• Output Enable Pin
• Undervoltage lockout
• Over Temperature Protection
• Meets Basic Insulation
• EU directive 2002/95/EC
compliant for RoHS
Output current
Line regulation
Load regulation
Noise/ripple
1
Over current limit
Switching frequency
Over temperature protection 115°C average PCB temperature (autorecovery)
Control
Enable
Isolation Voltage
Input to Output
Environmental Specifications
Operating ambient temperature range
Storage temperature
MTBF
-40°C to +85°C ambient
-55°C to +125°C
>1 million hours
Safety
UL, cUL 60950-1
TUV
EN60950-1
Embedded Power for
Business-Critical Continuity
Ordering Information
Input
Voltage
36 - 55V
Options:
(X) :
Output Voltage
9.6V
=
=
=
=
=
=
Output Current
17A
Efficiency
2
96% Typ
Model Number
A(X)D17Q50(N)-(6)(L)
Astec Power
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Technical Support: +1 888 41 ASTEC
or +1 407 241 2752
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Rev. 04.20.06
AED/ALD17
2 of 2
“L”
“E”
(N) : "N"
(6) : “-6”
(L) : “L”
without “L”
Open Frame / Low Profile
Heatplate Construction
designates Negative Logic Enable (default is Positive Enable with no suffix “N” required)
3.7mm nominal pin length (default is 5mm nominal pin length with no suffix “-6” required)
RoHS Compliant (RoHS 6)
RoHS Compliant with Lead (Pb) in solder exemption (RoHS 5)
Pin Assignments
Single Output
1. +Vin
2. Enable
3. -Vin
4. -Vout
5. Blank
6. Blank
7. Blank
8. +Vout
Notes:
1. Measured at 20 MHz bandwidth with external
10
µF
tant. capacitor in parallel with 1
µF
ceramic capacitor placed across +Vout and -
Vout; 33
µF
e-cap or equivalent placed across
+Vin and -Vin.
2. Efficiency measurements are typical values
taken at 48V input, nominal output, full load
and T
A
= 25°C.
3. All specifications are typical at nominal line, full
load and T
A
= 25°C unless otherwise noted.
4. All specifications subject to change without
notice.
5. Mechanical drawings are for reference only.
Dimensions are in inches [millimeters]. Pin
placement tolerance ± 0.005 [0.127].
Mechanical Tolerance ± 0.02 [0.5]. Pin diame-
ter,
∅
= 0.06” for Pin 4 (-Vout) and Pin 8
(+Vout), the rest of the pins are
∅
= 0.04”.
6. Technical Reference Notes should be consulted
for detailed information when available.
7. Warranty 1yr.

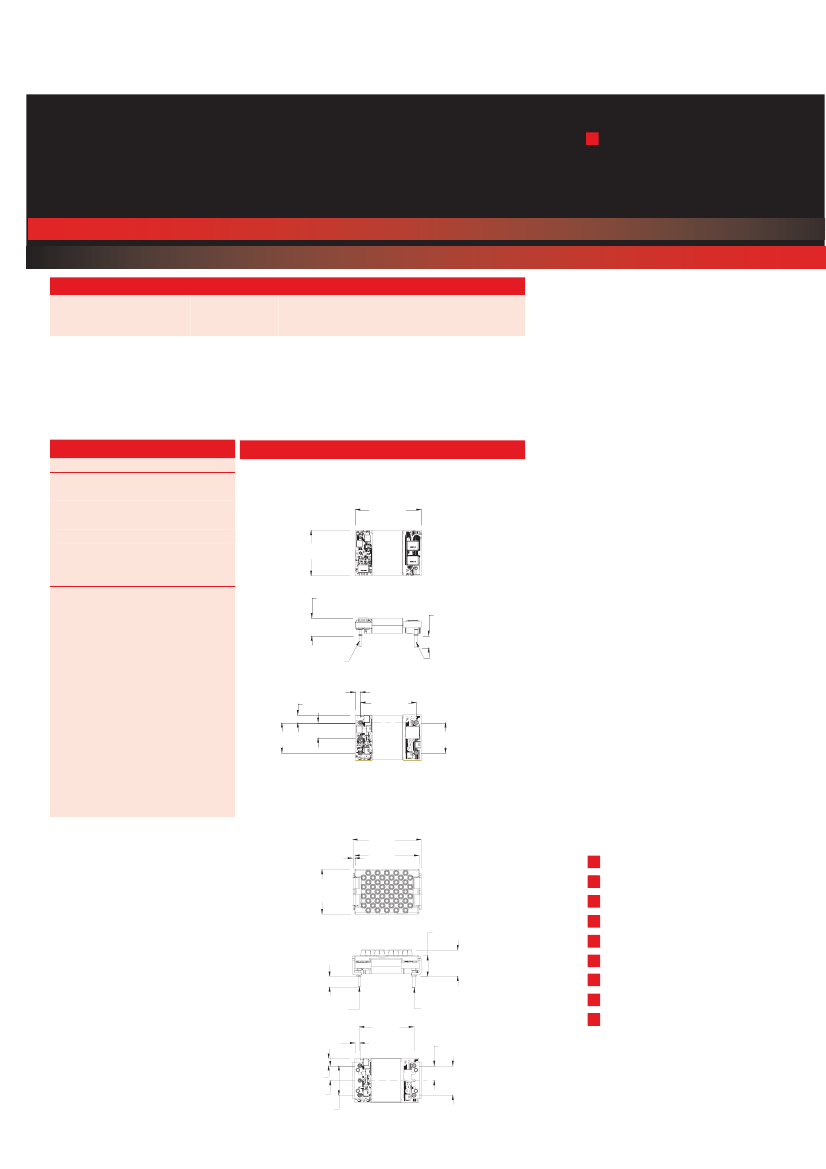

Mechanical Drawing
ALD Series
1.30 [33.0]
PIN 1
0.90 [22.9]
PIN 1 PIN 8
PIN SIDE DOWN
0.35 [8.9]
0.189[4.8] min
0.204[5.2] max
