YMC07SAAN: DescriptionHI-TEMP CONN HDR .100 SNGL 7POS; CategoryThe connector; File Size347KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

YMC07SAAN Overview

HI-TEMP CONN HDR .100 SNGL 7POS

YMC07SAAN Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	7
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.230"（5.84mm）
Contact length - terminal	0.120"（3.05mm）
Overall contact length	0.450"（11.43mm）
Insulation height	0.100"（2.54mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	30.0µin（0.76µm）
Contact Surface Preparation - Column	gold
Contact material	copper beryllium
Insulation Materials	Polyetheretherketone (PEEK)
characteristic	-
Operating temperature	-65°C ~ 250°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	brown
Rated current	3A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	10.0µin（0.25µm）
application	-

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

REVISIONS

REV.

E

F

ECO. NO

2763

DESCRIPTION

ADDED 'G' PLATING & UPDATED OPERATING

TEMPERATURE FOR 'R' MATERIAL

CHANGED DEFAULT PPS FROM BLACK COLOR

TO GREEN COLOR, REMOVED 'R' MATERIAL

OPTION (OFFERED 'A' ONLY FOR 200C

APPLICATION), ADD "Y" & "L" MATERIAL /

COLOR OPTION

ADD 'R' MATERIAL OPTION FOR 175 C

APPLICATION

UPDATE BOM FOR P MATERIAL CODE

DATE

4/17/2013

BY

KV

F

G

H

2855

2995

3134

2/25/2014

6/11/2014

1/14/2015

JH

JHSU

E

D

.100 2.54

B

A

C

A

.050 1.27

C

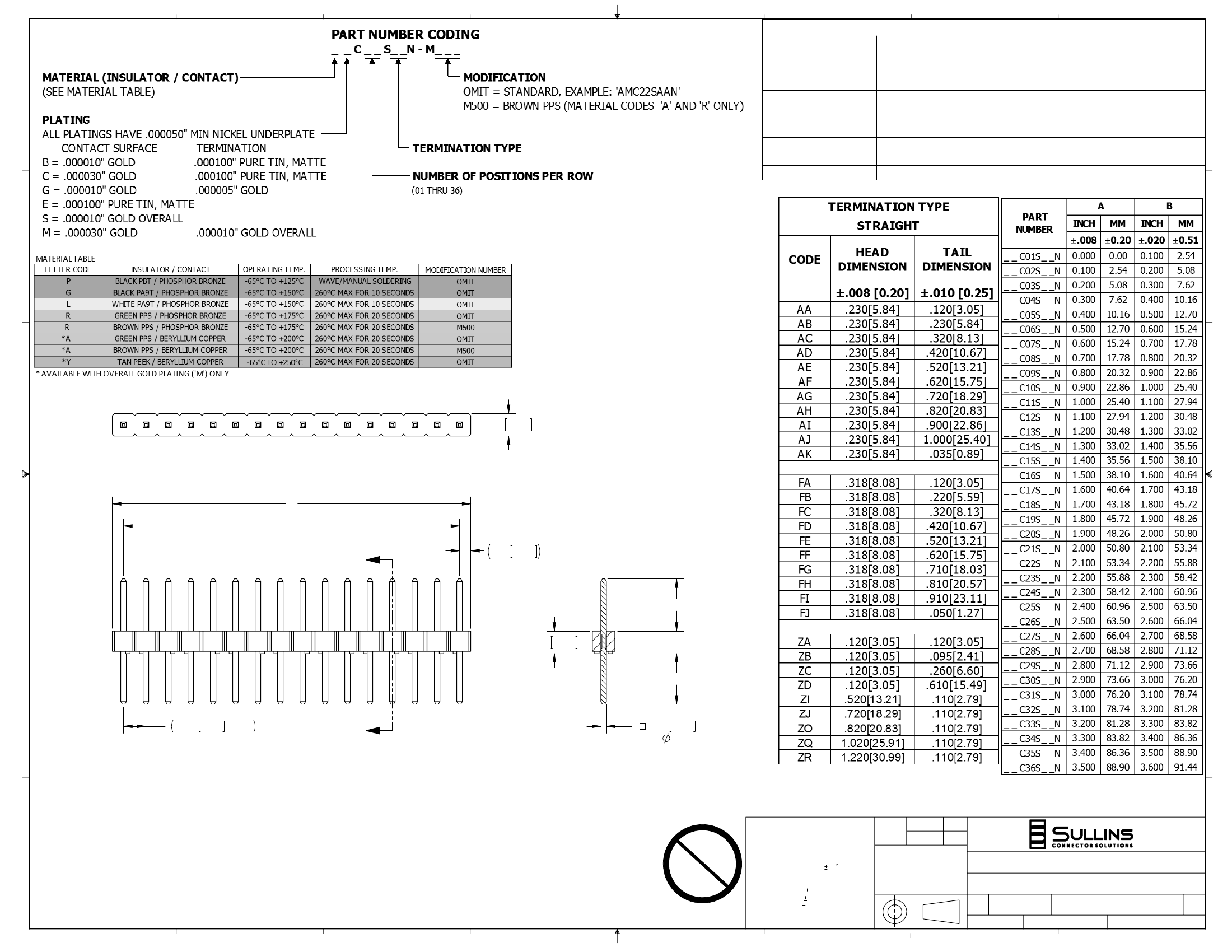

HEAD DIMENSION

.100 2.54

TAIL DIMENSION

B

.100 2.54 TYP.

A

.025 0.64

FITS

.040 MIN. HOLE

SECTION A-A

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING

2. CONTACT MATERIAL: SEE PART NUMBER CODING

3. PLATING: SEE PART NUMBER CODING

4. UL FLAMMABILITY RATING: 94V-0

5. DIELECTRIC WITHSTANDING VOLTAGE: 1800 VAC

6. CURRENT RATING: 3 AMPS

7. CONTACT RESISTANCE: 30 MILLIOHMS MAX.

8. INSULATION RESISTANCE: 5000 MEGOHMS MIN.

8

7

6

5

CUSTOMER COPY

A

Pb

RoHS

COMPLIANT

4

UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME

DIMENSIONS ARE IN INCHES [MM]

9/9/2011 JH

TOLERANCES:

ANGULAR:

1

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

TITLE

.100" CC, HEADER, STRAIGHT

_ _C_ _S_ _N - (M500)

DWG. NO.

CAGE CODE

A

DECIMALS

.XX= .02 [.5]

.XXX= .005 [.13]

.XXXX= .0005 [.013]

PART NUMBER

SIZE

SCALE: 4:1

3

2

C

54453

C10436

1

REV

SHEET 1 OF 1

H

FILE NAME: C10436, _ _C_ _S_ _N-OMIT, M500, STRAIGHT
