MTAN2111-21C: DescriptionMarktech 1.20 5x7 Dot Matrix; CategoryLED optoelectronic/LED photoelectric; File Size35KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric Compare View All

MTAN2111-21C Overview

Marktech 1.20 5x7 Dot Matrix

MTAN2111-21C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Marktech
Reach Compliance Code	unknow
color@wavelength	Gree
Display height	27.4 mm
Maximum forward voltage	3 V
JESD-609 code	e0
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
peak wavelength	567 nm
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

Marktech 1.20" 5x7 Dot Matrix

Features

Additional Colors/Materials Available

Exellent Character Apperance

High Light Output

IC Compatible

Low Current Requirements

Other face/epoxy colors are available

Applications

Message Signs

VMS

Notes

All Dimensions are in millimeters.

Tolerance is ±0.25mm unless otherwise stated.

The slope angle of any pin may be ±5.0° MAX.

Operating Temperature: −25 ~ +85

Storage Temperature: −25 ~ +100

Specifications subject to change without notice.

Part Number

PWL Material Emitted

λp

Color

Face Colors

Epoxy Surface

Color

Maximum Ratings

IF

VR

PD

Optical and Electrical Characteristics

Forward Voltage

VF

typ.

max.

3.00

2.20

V

IF@

20mA

−

Reverse Current

IR

max.

100

µA

VR@

5V

4V

−

Luminous Intensity

IV

typ. dot

4.00

4.60

24.20

mcd

IF@

10mA

20mA

−

Out

MTAN2111−11A

MTAN2111−21C

MTAN4111−11A

MTAN4111−21C

MTAN4111R−11A

MTAN4111R−21C

MTAN7111M−11A

MTAN7111M−21C

Units

567

635

660

nm

GaP

GaAsP

GaAlAs

−

YG

HR

SBUR

−

White

Red

White

−

Black

Gray

Red

Gray

−

30

mA

5.00

4.00

V

85.00

70.00

mW

2.10

1.70

1

2

1

2

1

2

1

2

−

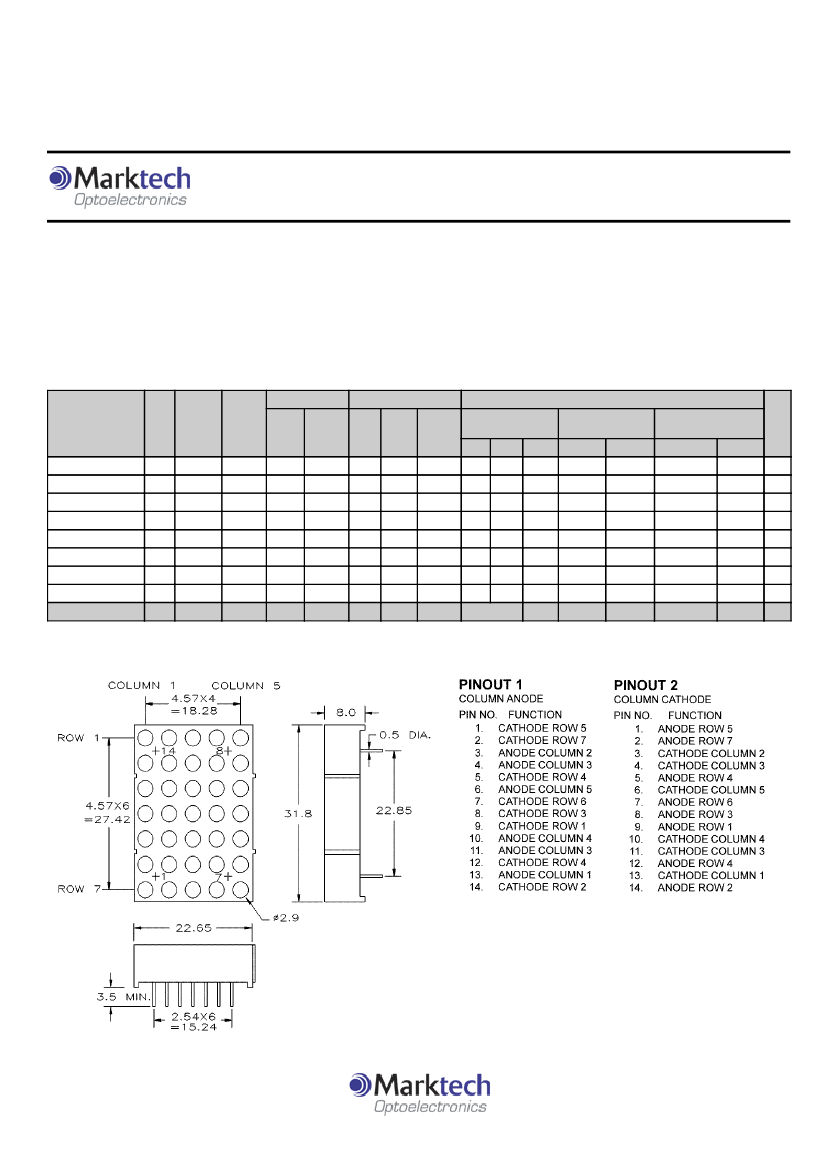

Package Dimensions and Pin Functions

Company Headquarters

3 Northway Lane North

Latham,

New York 12110

Toll Free: 800.984.5337

Fax: 518.785.4725

Web: www.marktechopto.com | Email: info@marktechopto.com

West Coast Sales Office

950 South Coast Drive, Suite 225

Costa Mesa, California 92626

Toll Free: 800.984.5337

Fax:

714.850.9314

MTAN2111-21C Related Products

	MTAN2111-21C	MTAN2111-11A	MTAN4111-11A	MTAN4111-21C	MTAN7111M-21C	MTAN7111M-11A	MTAN4111R-21C	MTAN4111R-11A
Description	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix	Marktech 1.20 5x7 Dot Matrix
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maker	Marktech	Marktech	Marktech	Marktech	Marktech	Marktech	Marktech	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknow	-
color@wavelength	Gree	Gree	Orange	Orange	Red	Red	Red	-
Display height	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm	-
Maximum forward voltage	3 V	3 V	3 V	3 V	2.2 V	2.2 V	3 V	-
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	-
peak wavelength	567 nm	567 nm	635 nm	635 nm	660 nm	660 nm	635 nm	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
