39DX828G025JT7

Description
CAP ALUM 8200UF 25V AXIAL
CategoryPassive components
File Size154KB,2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

39DX828G025JT7 Online Shopping

Suppliers Part Number Price MOQ In stock
39DX828G025JT7 - - View Buy Now

39DX828G025JT7 Overview

CAP ALUM 8200UF 25V AXIAL

39DX828G025JT7 Parametric

Parameter NameAttribute value
capacitance8200µF
Tolerance-10%,+75%
Voltage - Rated25V
ESR (equivalent series resistance)95 milliohms
Service life at different temperatures500 hours at 85°C
Operating temperature-20°C ~ 85°C
polarizationpolarization
grade-
applicationUniversal
Ripple current @ low frequency4.718A @ 120Hz
lead spacing-
size/dimensions1.012" diameter x 3.642" length (25.70mm x 92.50mm)
Height - Installation (maximum)-
Surface mount pad dimensions-
Installation typeThrough hole
Package/casingAxial, CAN
ALUMINUM CAPACITORS
Electrical and Mechanical Specifications
Product Type:
Large Axial (Unformed Leads)
P/N:
39DX828G025JT7
Capacitance:
Tolerance:
Voltage:
ESR:
DF:
DC Leakage:
8200
F
-10% / +75%
0-25 VDC
0.095
max.
58.74 % max.
2716.6

max. after 5 min.
charge at rated voltage
4.718 Amps @
Amps @
Blue PVC
Sprague
39D
8200UF 25VDC
DATE CODE
+85C
+
85°C
85°C
Ripple@120Hz:
20kHz
Sleeving:
Marking:
+
Comments:
Full Descriptor Part Number:
039D828G025JT7BXM800

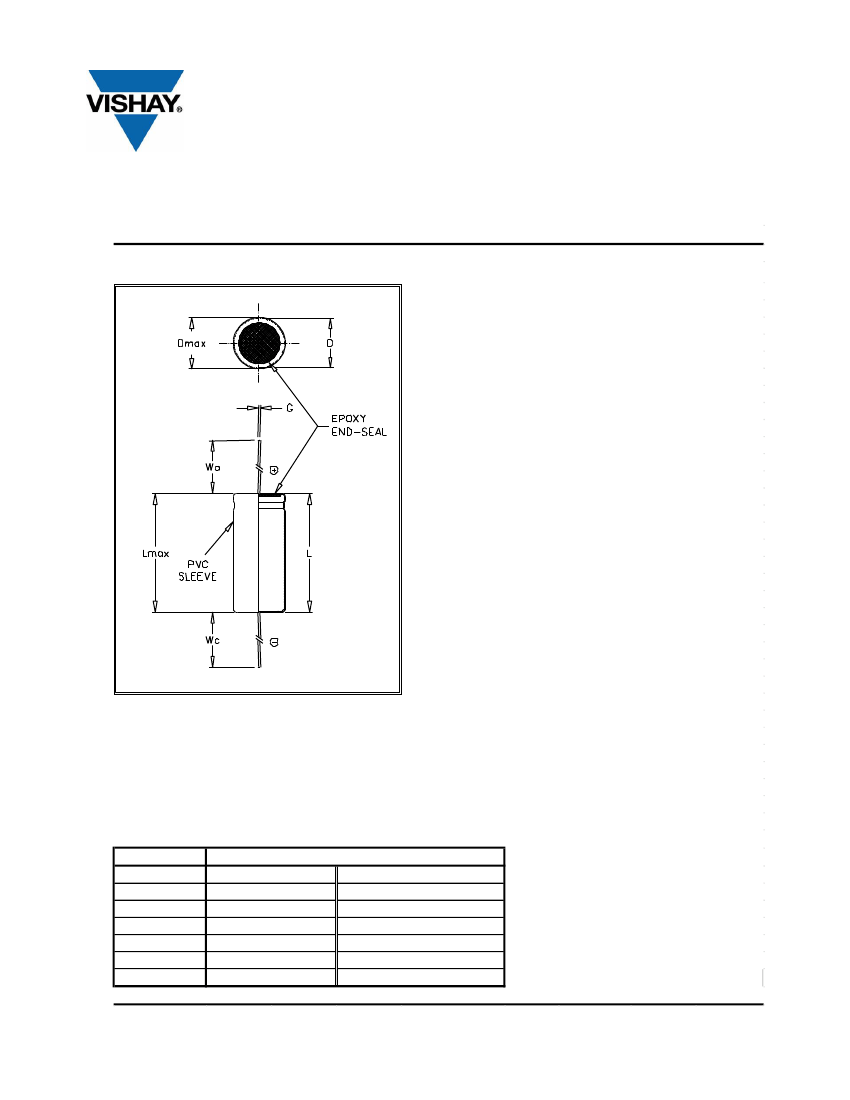

Figure
Dimensions
G
0.040 in.
1.02 mm
D
1.000 in. nom.
25.40 mm nom.
Dmax
1.030 in. max.
26.16 mm max.
L
3.625 in. nom.
92.08 mm nom.
Lmax
3.749 in. max.
95.23 mm max.
Wa
2.500 in. min.
63.50 mm min.
Wc
2.500 in. min.
63.50 mm min.
NOTE: max. dimensions include sleeving thickness
Drawn by:
B. Slaughter
Date:
November 12, 2015
TDS Rev:
0
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
