5055681571 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5055681571

5055681571: Description1.25WB SINGLE ST ASSY 15CKT EMBP; CategoryThe connector; File Size430KB，4 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5055681571 Overview

1.25WB SINGLE ST ASSY 15CKT EMBP

5055681571 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.049"（1.25mm）
Number of pins	15
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	push-pull
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.165"（4.20mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Fixed solder tail
Operating temperature	-40°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	Varies with wire gauge
Rated voltage	50VAC/DC
Joint stack height	7.4mm
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）
application	automotive, general, industrial

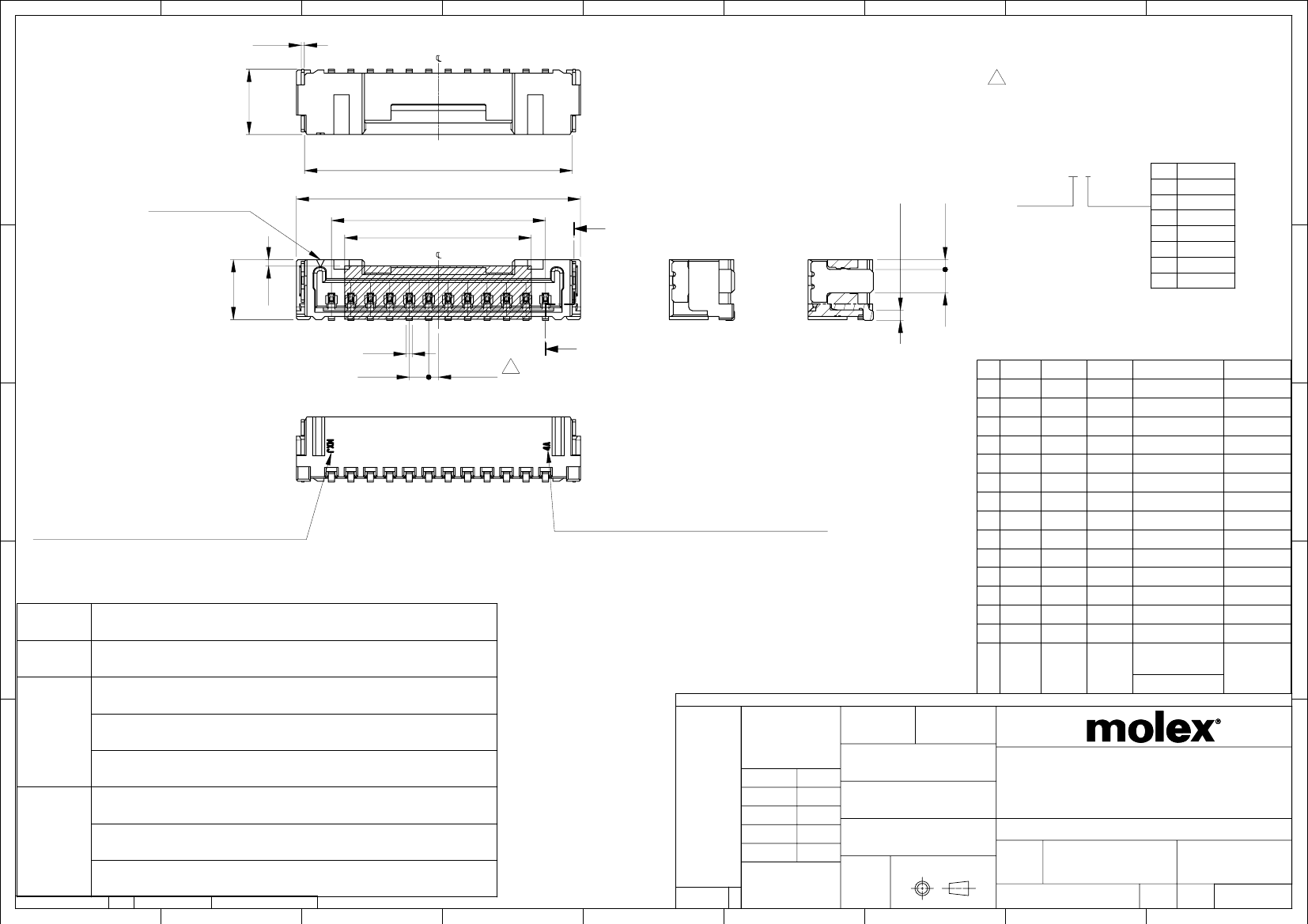

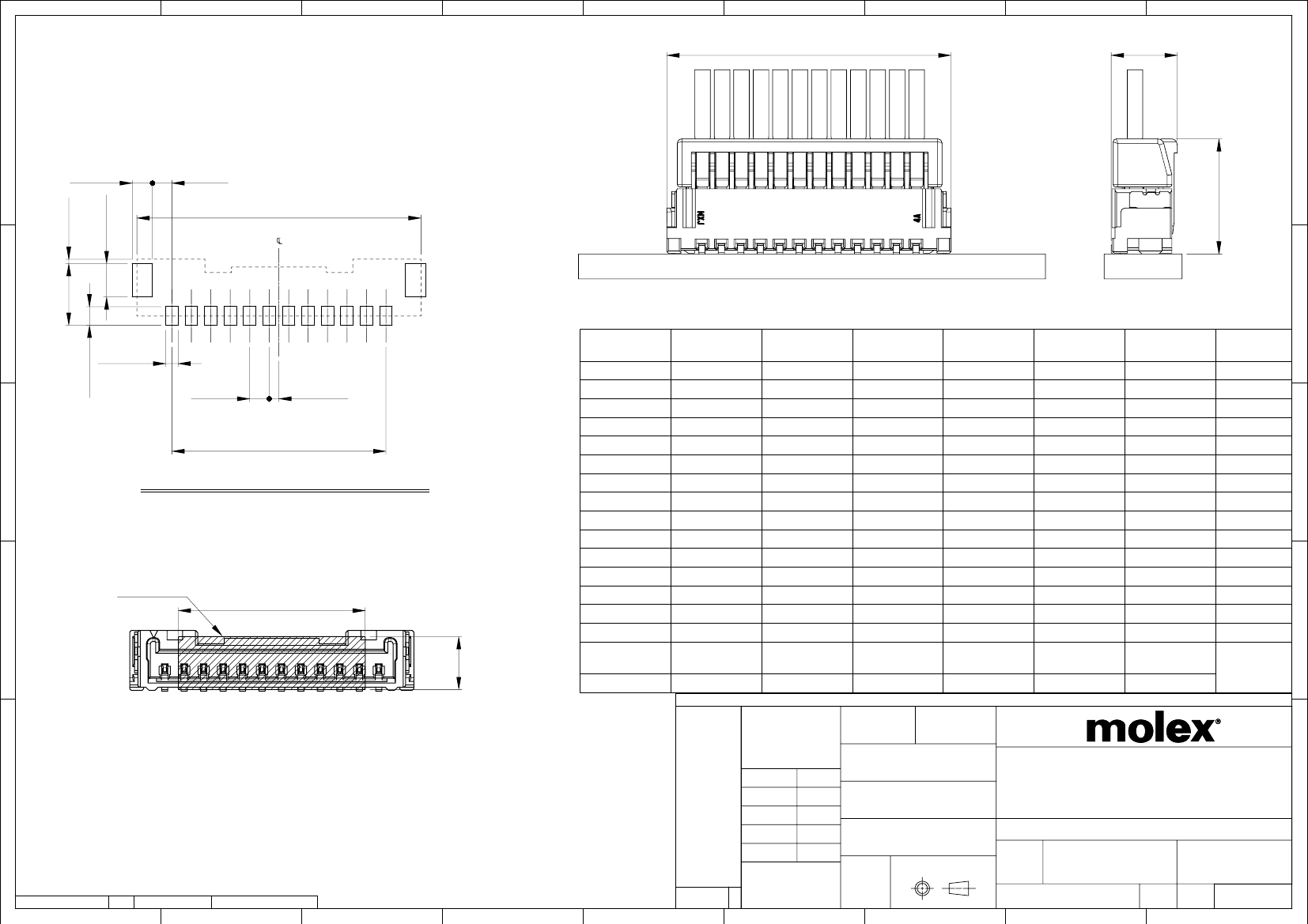

Preview

Download Datasheet

View All

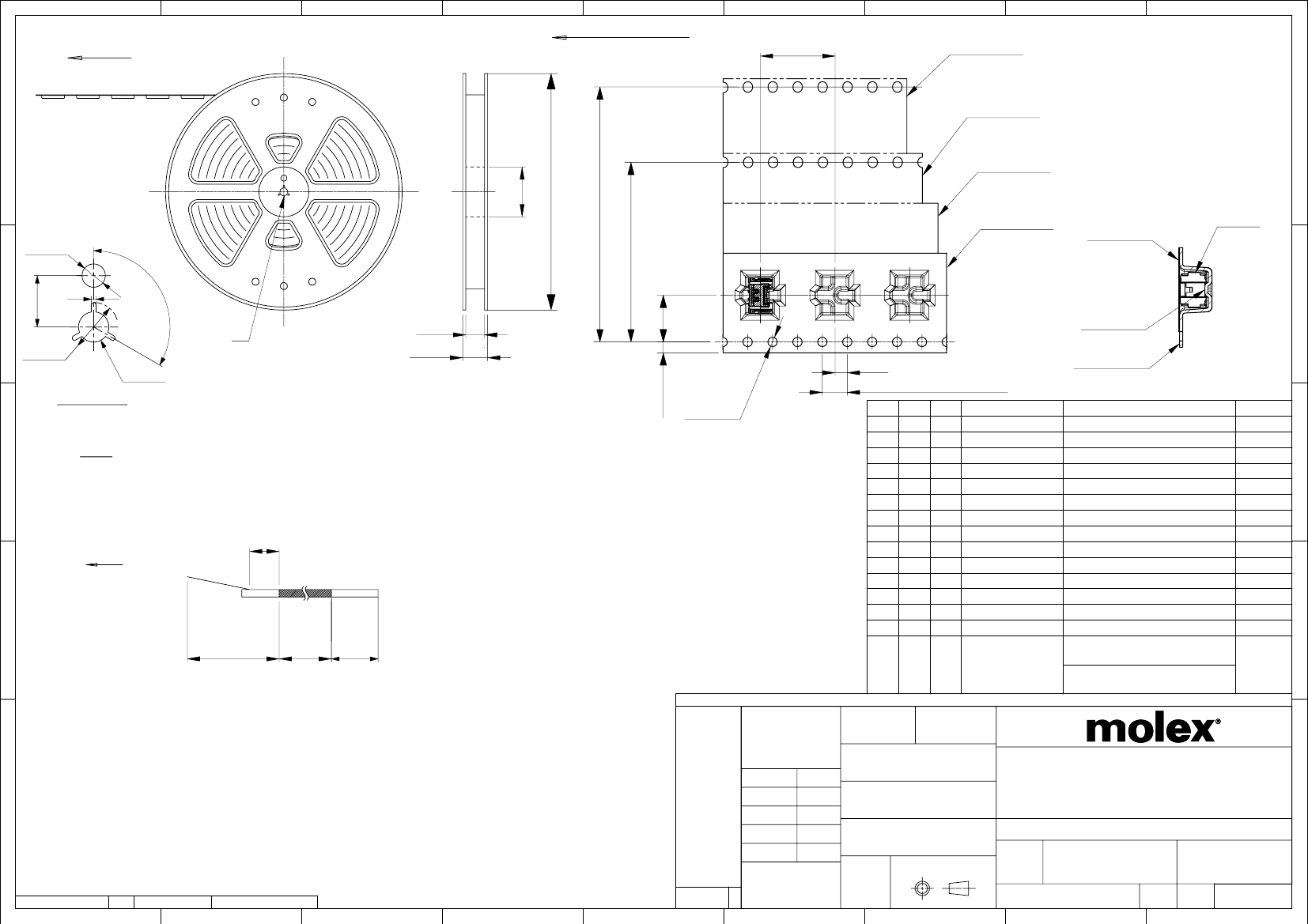

引き出し方向

44mm幅テープ

TAPE WIDTH : 44mm

PULL OUT DIRECTION

32mm幅テープ

TAPE WIDTH : 32mm

24mm幅テープ

TAPE WIDTH : 24mm

(

⌀

80)

⌀

380

40.5

0.1

28.5

0.1

16mm幅テープ

TAPE WIDTH : 16mm

(

⌀

)

(

)

(

)

(

120

)

トップテープ

TOP TAPE

コネクタ

CONNECTOR

"A"

(

⌀

)

(

⌀

)

1.0

カバーテープ

COVER TAPE

1.75

0.1

(2)

エンボステープ

EMBOSSED TAPE

DETAIL "A"

累積ピッチ:40±0.2

⌀

1.5

+0.1

NOTES

½品寸法については、½品単½図面を参照ください。

THE DETAIL DIMENSION REFER TO SALES DRAWING OG CONNECTOR ITSELF(NOT PACKAGED)

梱包数量： 1200個／リール

NUMBER OF CONNECTORS : 1200 PCS/REEL.

リードテープ長さ

LEAD TAPE LENGTH.

引き出し方向

100 MIN

トップテープ接着部(空エンボス)

TOP TAPE BONDED PART.(EMPTY)

PULL OUT DIRECTION

末端部

部品挿入部

(空部)

トップテープリーダー部

TOP TAPE LEADER PART

COMPONENT

TAIL PART

SUPPLIER

(EMPTY)

400 MIN

49.4

37.4

29.4

21.4

45.4

33.4

25.4

17.4

20.2

14.2

11.5

7.5

160 MIN

トップテープの剥離強度はIEC60286-3に準拠

TOP TAPE PEELING FORCE IS DEFINED BY IEC60286-3

材料MATERIAL

キャリアテープ(CARRIER TAPE):ポリスチレン(POLYSTYRENE)

トップテープ(TOP TAPE)

リール(REEL):ポリスチレン　〔リサイクル材を含む〕 (PS)

505568167*

505568157*

505568147*

505568137*

505568127*

505568117*

505568107*

505568097*

505568087*

505568077*

505568067*

505568057*

505568047*

505568037*

505568027*

エンボス梱包

エンボステープ幅

EMBOSSED TAPE PACKAGE

極数

WIDTH OF TAPE

CKT NO.

オーダー番号

ORDER NO.

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2017/08/28

2017/09/26

GENERAL

TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL ±

1.0

DIMENSION UNITS

SCALE

DRWN BY

DATE

NTS

REDRAWN

POLYSTYRENE (PS) 〔RECYCLE MATERIAL CONTAINED〕

4 PLACES

0.2

RWATANABE01

CHK'D BY

DATE

2017/08/28

2017/09/26

DATE

121145

RWATANABE01

KOMURAKAMI

TKANEKO

3 PLACES

2 PLACES

1 PLACE

0 PLACES

MICRO-LOCK PLUS 1.25 W/B

SINGLE ROW ST SMT EMBOSSED TAPE PKG

KOMURAKAMI

APPR BY

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

TKANEKO

DRAWING SIZE

2017/09/26

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

RELEASE STATUS

FORMAT: tb-prod-A3

REVISION: G

DATE: 2017/02/06

RELEASE DATE

26.09.2017

09:30:55

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

505568

DOCUMENT NUMBER

SEE SHEET2

GENERAL

DOC TYPE

DOC PART

SHEET NUMBER

5055680000-SD

PSD

000

1 OF 2

5055681571 Related Products

	5055681571	5055681271	5055680571	5055680671	5055681371	5055681671	5055681171	5055681471	5055680971
Description	1.25WB SINGLE ST ASSY 15CKT EMBP	1.25WB SINGLE ST ASSY 12CKT EMBP	MICRO-LOCK PLUS VERTICAL HEADER,	MICRO-LOCK PLUS VERTICAL HEADER,	1.25WB SINGLE ST ASSY 13CKT EMBP	1.25WB SINGLE ST ASSY 16CKT EMBP	1.25WB SINGLE ST ASSY 11CKT EMBP	1.25WB SINGLE ST ASSY 14CKT EMBP	1.25WB SINGLE ST ASSY 9CKT EMBPK
Connector type	Connector	Connector	Connector	Connector	Connector	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）	0.049"（1.25mm）
Number of pins	15	12	5	6	13	16	11	14	9
Number of rows	1	1	1	1	1	1	1	1	1
Number of pins loaded	all	all	all	all	all	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Termination	welding	welding	welding	welding	welding	welding	welding	welding	welding
Fastening type	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull	push-pull
Insulation height	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）
Contact shape	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact surface treatment - mating	tin	tin	tin	tin	tin	tin	tin	tin	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin	tin	tin	tin
Contact material	brass	brass	brass	brass	brass	brass	brass	brass	brass
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail	Fixed solder tail
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	black	black	black	black	black	black	black	black	black
Rated current	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge	Varies with wire gauge
Rated voltage	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC	50VAC/DC
Joint stack height	7.4mm	7.4mm	7.4mm	7.4mm	7.4mm	7.4mm	7.4mm	7.4mm	7.4mm
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
application	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial
