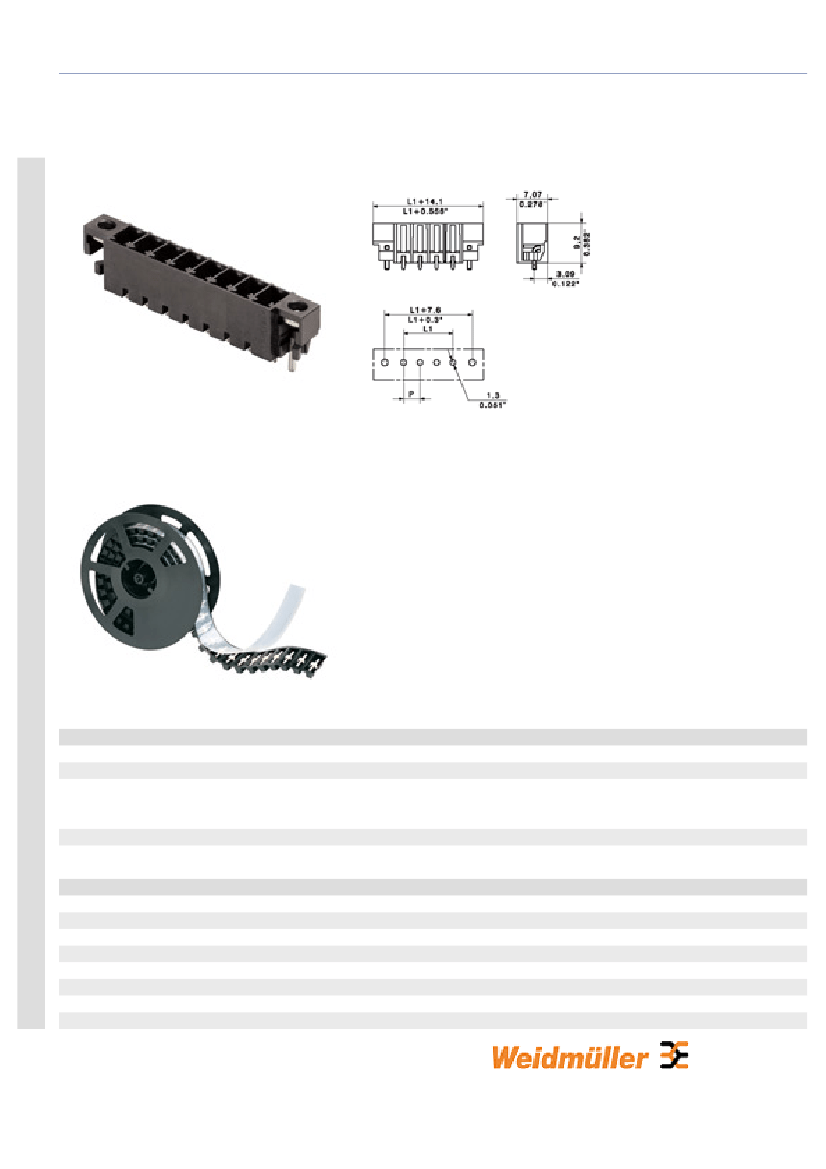

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180LF SN | SC-SMT 3.81/180LF SN Tape
System parameters
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
1
1.3 mm
+ 0.1 mm
19.05 mm
0.75 inch
1 MΩ
IP 20
Safe from finger touch
LCP GF
black
Similar to RAL 9011
IIIa
V-0
>= 175
Copper alloy
tinned
-25 °C
120 °C
-25 °C
55 °C
85 %
16 A
14 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 76 A
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180LF SN | SC-SMT 3.81/180LF SN Tape
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1864220000
1863500000
1864230000
1863510000
1864240000
1863530000
1864250000
1863580000
1864260000
1864270000
1863620000
1864280000
1863640000
Part designation
SL-SMT3.81/2/180LF1.5SR
SL-SMT3.81/2/180LF3.2SR
SL-SMT3.81/3/180LF1.5SR
SL-SMT3.81/3/180LF3.2SR
SL-SMT3.81/4/180LF1.5SR
SL-SMT3.81/4/180LF3.2SR
SL-SMT3.81/5/180LF1.5SR
SL-SMT3.81/5/180LF3.2SR
SL-SMT3.81/6/180LF1.5SR
SL-SMT3.81/7/180LF1.5SR
SL-SMT3.81/7/180LF3.2SR
SL-SMT3.81/8/180LF1.5SR
SL-SMT3.81/8/180LF3.2SR
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Tape
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Tape
-3-
