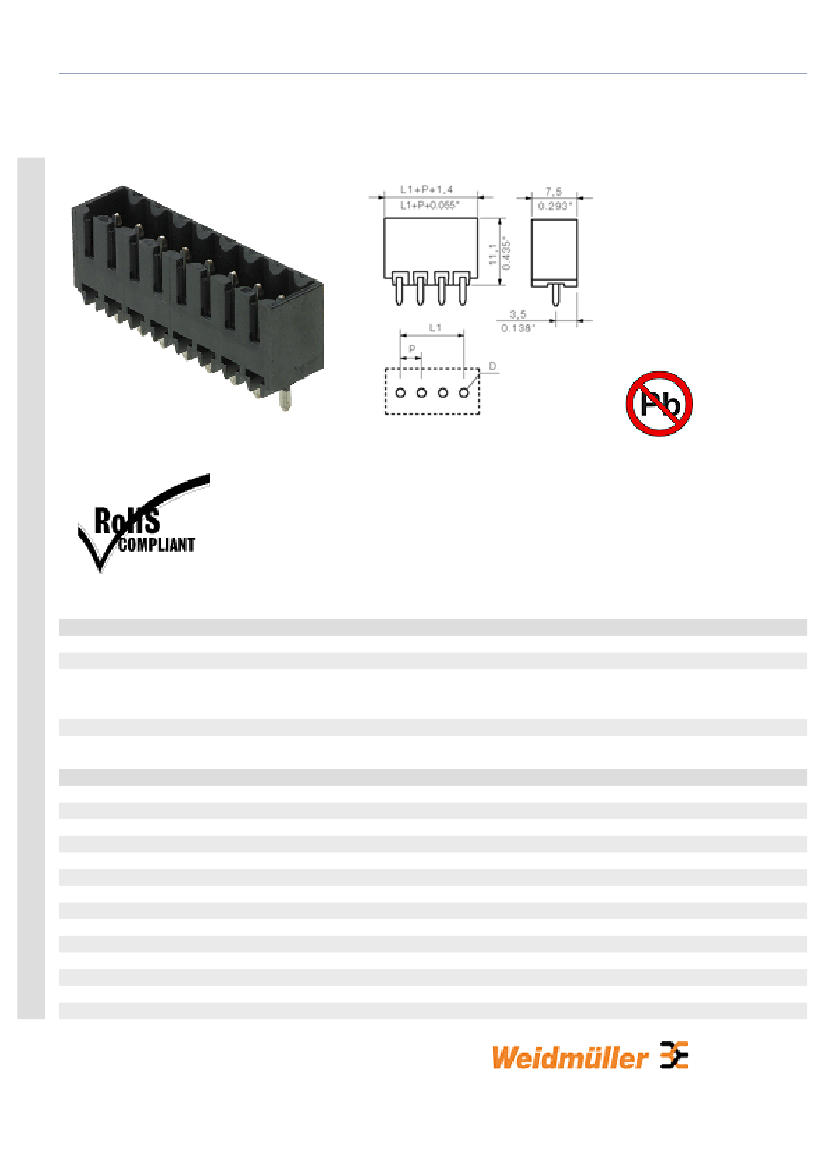

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180G | SL-SMT 3.5/180G Box
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
1842470000
SL-SMT3.5/18/180G 3.2SN SW BOX
PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 3.50 mm, No. of poles:
18, 180°, Box
4032248353828
20 pc(s).
Reflow solder connection
180°
3.5 mm
0.138 inch
18
3.2 mm
Yes
1
1
1.4 mm
+ 0.1 mm
59.5 mm
2.343 inch
1 MΩ
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180G | SL-SMT 3.5/180G Box
System parameters
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Temperature of glow-wire test
Duration of glow-wire test
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
IP 10
Safe from back-of-hand touch
LCP GF
black
Similar to RAL 9011
IIIa
V-0
>= 175
960 °C
30 S
CuSn
tinned
-25 °C
100 °C
-25 °C
55 °C
80 %
15 A
12 A
13 A
10 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 100 A
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180G | SL-SMT 3.5/180G Box
Approvals
Approvals institutes
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
SL-SMT.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1752982001
1842320000
1752992001
1842330000
1753002001
1842340000
1753012001
1842350000
1753022001
1842360000
Part designation
SL-SMT3.5/2/180G 1.5SN
SL-SMT3.5/2/180G 3.2SN SW
BOX
SL-SMT3.5/3/180G 1.5SN
SL-SMT3.5/3/180G 3.2SN SW
BOX
SL-SMT3.5/4/180G 1.5SN
SL-SMT3.5/4/180G 3.2SN SW
BOX
SL-SMT3.5/5/180G 1.5SN
SL-SMT3.5/5/180G 3.2SN SW
BOX
SL-SMT3.5/6/180G 1.5SN
SL-SMT3.5/6/180G 3.2SN SW
BOX
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 6, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180G | SL-SMT 3.5/180G Box
1753032001
1842370000
1753042001
1842380000
1753052001
1842390000
1753062001
1836990000
1753072001
1842400000
1753082001
1842410000
1753092001
1842420000
1753102001
1842430000
1753112001
1842440000
1753122001
1842450000
1753132001
1842460000
1753142001
1753152001
1842480000
1753162001
SL-SMT3.5/7/180G 1.5SN
SL-SMT3.5/7/180G 3.2SN SW
BOX
SL-SMT3.5/8/180G 1.5SN
SL-SMT3.5/8/180G 3.2SN SW
BOX
SL-SMT3.5/9/180G 1.5SN
SL-SMT3.5/9/180G 3.2SN SW
BOX
SL-SMT3.5/10/180G 1.5SN
SL-SMT3.5/10/180G 3.2SN
SL-SMT3.5/11/180G 1.5SN
SL-SMT3.5/11/180G 3.2SN SW
BOX
SL-SMT3.5/12/180G 1.5SN
SL-SMT3.5/12/180G 3.2SN SW
BOX
SL-SMT3.5/13/180G 1.5SN
SL-SMT3.5/13/180G 3.2SN SW
BOX
SL-SMT3.5/14/180G 1.5SN
SL-SMT3.5/14/180G 3.2SN SW
BOX
SL-SMT3.5/15/180G 1.5SN
SL-SMT3.5/15/180G 3.2SN SW
BOX
SL-SMT3.5/16/180G 1.5SN
SL-SMT3.5/16/180G 3.2SN SW
BOX
SL-SMT3.5/17/180G 1.5SN
SL-SMT3.5/17/180G 3.2SN SW
BOX
SL-SMT3.5/18/180G 1.5SN
SL-SMT3.5/19/180G 1.5SN
SL-SMT3.5/19/180G 3.2SN SW
BOX
SL-SMT3.5/20/180G 1.5SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 20, 180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180G | SL-SMT 3.5/180G Box
1842490000
1753172001
1842500000
1753182001
1842510000
1753192001
1842520000
1753202001
1842530000
SL-SMT3.5/20/180G 3.2SN SW
BOX
SL-SMT3.5/21/180G 1.5SN
SL-SMT3.5/21/180G 3.2SN SW
BOX
SL-SMT3.5/22/180G 1.5SN
SL-SMT3.5/22/180G 3.2SN SW
BOX
SL-SMT3.5/23/180G 1.5SN
SL-SMT3.5/23/180G 3.2SN SW
BOX
SL-SMT3.5/24/180G 1.5SN
SL-SMT3.5/24/180G 3.2SN SW
BOX
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 21, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 21, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 23, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 23, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 24, 180°, Box
-5-
