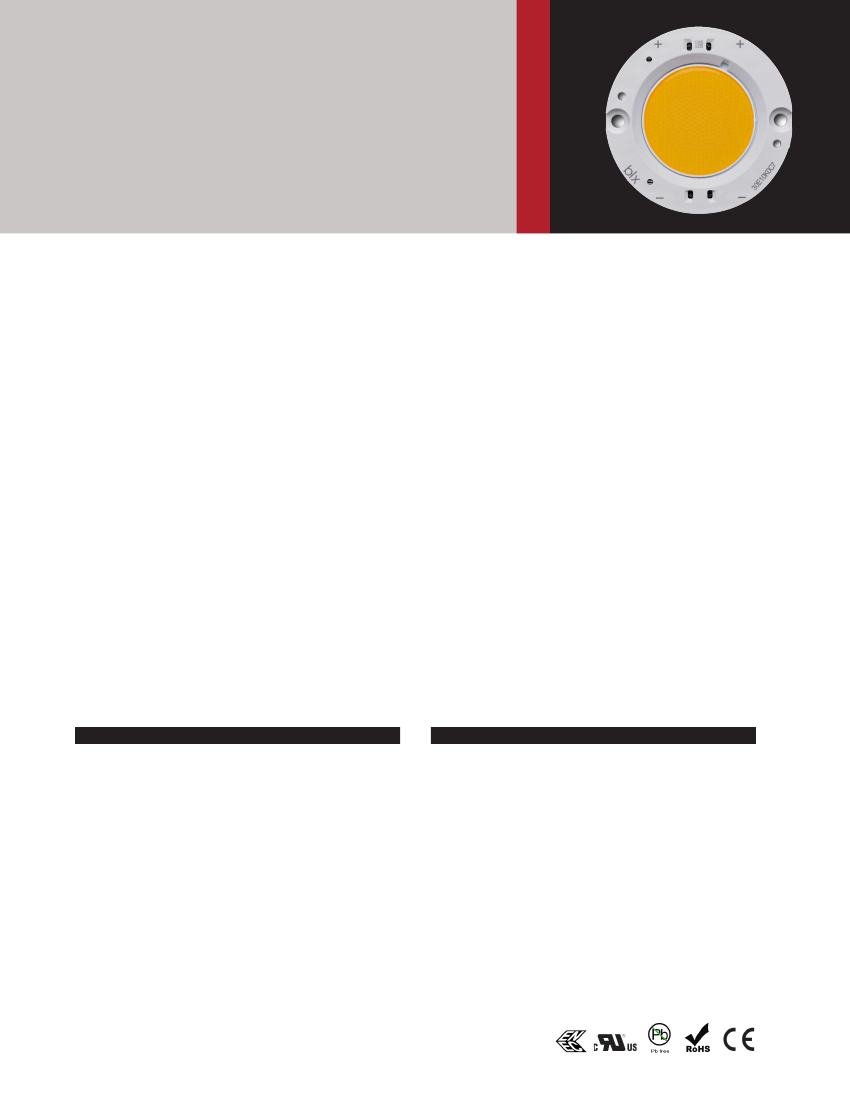

Introduction
Vero
®
SE Series is a revolutionary light source system that integrates Bridgelux’s seventh generation COB technology with
poke-in connectivity enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower
manufacturing cost, simplify luminaire design, improve light quality and increase design flexibility.
Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current
range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays
into fixtures and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam
control and precision lighting with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched
LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor
Series color points are available on Vero
®
SE Series, Vero
®
Series, V Series™ and V Series™ HD.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and typical R9 value of 98, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen lamps
Décor Series™ Food
products offer color points developed to address the unique requirements of the food, grocery, and
restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the Décor Series
Food products are a must have for any butcher counter or bakery.
Décor Series ™ Entertainment
products provide color points developed specifically for the healthcare and entertainment
industries. The 5600K cool white color point combined with a CRI of 90 or 97 provides the bright white required by these
industries.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Features
Benefits
• Poke-in connectivity
• Efficacy of 159 lm/W typical
• Lumen output performance ranges from 5,368 to
37,173 lumens
• Broad range of CCT options from 1750K to 6500K
• CRI options: minimum 65, 70, 80, and 90
• Color control: 2 and 3 SDCM for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Top side part number markings
• No exposed solder pads or electrical connections
• V
f
bin code backside marking
• Poke-in connectivity enables solderless, connector
free installation
• Broad application coverage for interior and exterior
lighting
• Flexibility for application driven lighting design
requirements
• High quality, true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Ability to configure multiple arrays in series and
parallel reduces customer driver cost
• Improved inventory management and quality control

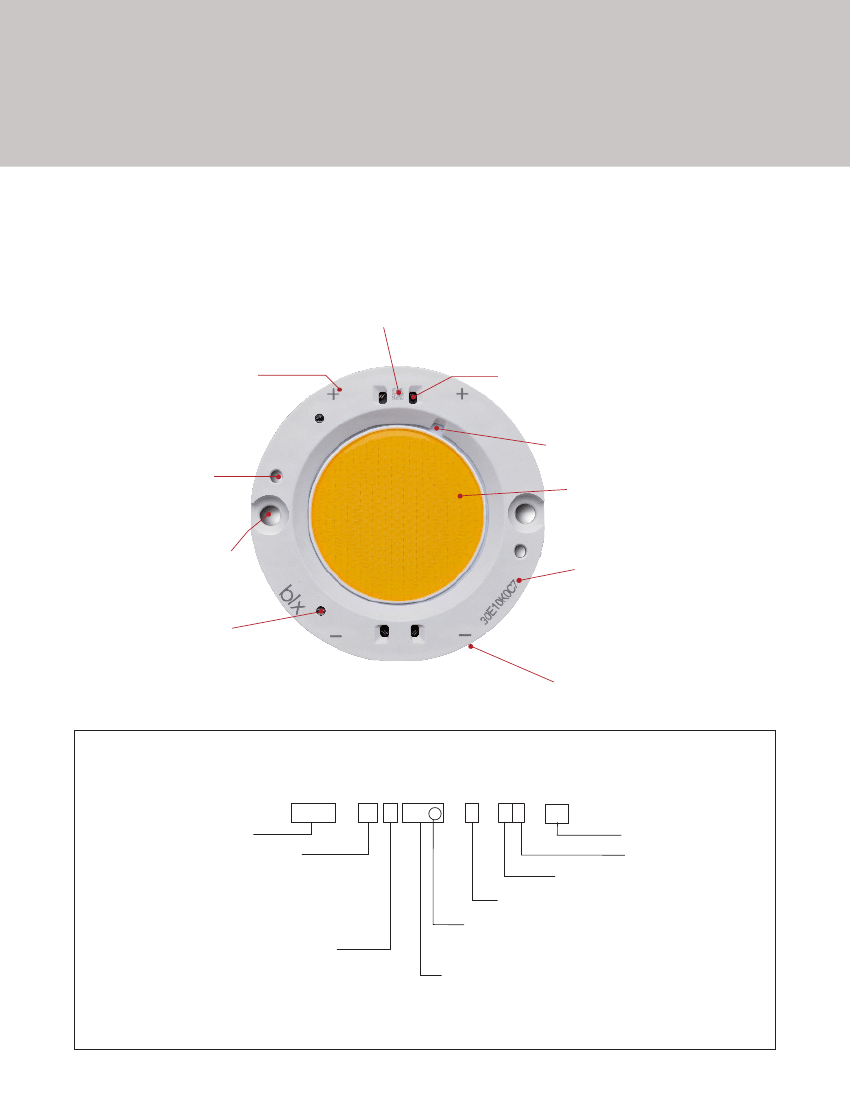

Vero SE
Product Feature Map
Vero SE 29 is the largest form factor in the product family
of next generation solid state light sources. In addition to
delivering the performance and light quality required for
many lighting applications, Vero SE incorporates several
features to simplify the design integration and
manufacturing process, accelerate time to market and
reduce system costs. Please visit www.bridgelux.com for
more information on the Vero SE Series family of products.
2D Bar code provides full
manufacturing traceability
Polarity indication marks simplify
manufacturing operator instructions
Wire release mechanisms x4
T
c
Measurement point
Optic mounting holes
Radial die configuration improves lumen
density and beam control
Mounting holes
Top side part number marking improves
inventory management and outgoing
quality control
Test ports for probing
Dual poke-in connectivity
Product Nomenclature
The part number designation for Bridgelux Vero SE LED arrays is explained as follows:
1 2 3 4
–
56
7
8 9 10 11
–
12
– 13 14
– 15 16
BXRC – 30 E 10K 0 – C – 7 3 – SE
Product Family
Nominal CCT
17 = 1,750K
20 = 2,000K
25 = 2,500K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
56 = 5,600K
57 = 5,700K
65 = 6,500K
Special Edition
CCT Bin Options
Gen. 7
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
Flux Indicator
10Kx = 10,000 lm
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRC-17E10K0-B-74-SE
BXRC-17E10K0-C-74-SE
BXRC-17E10K0-D-74-SE
BXRC-20B10K1-C-73-SE
BXRC-20B10K1-D-73-SE
BXRC-25E10K0-B-74-SE
BXRC-25E10K0-C-74-SE
BXRC-25E10K0-D-74-SE
BXRC-27E10K0-B-7x-SE
BXRC-27E10K0-C-7x-SE
BXRC-27E10K0-D-7x-SE
BXRC-27G10K0-B-7x-SE
BXRC-27G10K0-C-7x-SE
BXRC-27G10K0-D-7x-SE
BXRC-27H10K0-D-74-SE
BXRC-30E10K0-B-7x-SE
10
BXRC-30E10K0-C-7x-SE
10
Nominal
CCT
1
(K)
1750
1750
1750
2000
2000
2500
2500
2500
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
3500
3500
3500
CRI
2
80
80
80
65
65
80
80
80
80
80
80
90
90
90
97
80
80
80
90
90
90
97
93
93
93
80
80
80
90
90
90
93
93
93
Nominal
Drive
Current
3
(mA)
1800
1710
2100
1710
2100
1800
1710
2100
1800
1710
2100
1800
1710
2100
2100
1800
1710
2100
1800
1710
2100
2100
1800
1710
2100
1800
1710
2100
1800
1710
2100
1800
1710
2100
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
8237
10443
6948
17682
11765
13385
16970
11291
14321
18157
12081
11887
15072
10028
8769
14882
18869
12555
12449
15784
10502
9317
11232
14241
9475
15350
19463
12949
12823
16258
10818
12074
15309
10186
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
7413
9399
6254
15914
10589
12046
15273
10162
12889
16341
10873
10698
13564
9025
7892
13394
16982
11299
11204
14205
9452
8386
10109
12817
8528
13815
17516
11654
11541
14633
9736
10867
13778
9167
Typical V
f
(V)
52.0
69.4
37.6
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
37.6
52.0
69.4
37.6
52.0
69.4
37.6
37.6
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
Typical
Power
(W)
93.6
118.7
79.0
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
79.0
93.6
118.7
79.0
93.6
118.7
79.0
79.0
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
Typical
Efficacy
(lm/W)
88
88
88
149
149
143
143
143
153
153
153
127
127
127
111
159
159
159
133
133
133
118
120
120
120
164
164
164
137
137
137
129
129
129
BXRC-30E10K0-D-7x-SE
10
BXRC-30G10K0-B-7x-SE
BXRC-30G10K0-C-7x-SE
BXRC-30G10K0-D-7x-SE
BXRC-30H10K0-D-7X-SE
BXRC-30A10K1-B-73-SE
8,9
BXRC-30A10K1-C-73-SE
8,9
BXRC-30A10K1-D-73-SE
8,9
BXRC-35E10K0-B-7x-SE
10
BXRC-35E10K0-C-7x-SE
10
10
BXRC-35E10K0-D-7x-SE
BXRC-35G10K0-B-7x-SE
BXRC-35G10K0-C-7x-SE
BXRC-35G10K0-D-7x-SE
BXRC-35A10K1-B-73-SE
8,9
BXRC-35A10K1-C-73-SE
8,9
BXRC-35A10K1-D-73-SE
8,9
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. All CRI values are measured at T
j
= T
c
= 25°C. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums
for all other products. Minimum R9 value for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI
products is 93. Bridgelux maintains a ± 3 tolerance on CRI and R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8.
Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may
vary depending on fixture design and performance.
10. SKUs meet DLC premium (Outdoor Mid Output) requirements under certain system level conditions.
3
