LCAF3/0-56F-X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> LCAF3/0-56F-X

LCAF3/0-56F-X: DescriptionCONN TERM RECT TONG 3/0AWG #5/16; CategoryThe connector; File Size81KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric View All

LCAF3/0-56F-X Overview

CONN TERM RECT TONG 3/0AWG #5/16

LCAF3/0-56F-X Parametric

Parameter Name	Attribute value
Terminal type	Rectangular tongue
Stud/Tab Dimensions	5/16 binding post
Terminal form	single bolt hole
Tab thickness	0.140"（3.56mm）
Length - total	-
Width - outer edge	1.060"（26.92mm）
Installation type	Free hanging, right angle
Termination	Crimp, sleeve type
Wire gauge	3/0 AWG
insulation	non-insulated
characteristic	-
color	Purple
Contact plating	electroplated tin
Contact material	copper
Diameter - Casing ID	0.570"（14.48mm）
Diameter - Casing OD	0.810"（20.57mm）
Diameter - Ring ID	0.340"（8.64mm）

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

Material

Plating

Wire Size & Type

High Conductivity

Seamless Copper Tube

Electro-Tin

Stranded Copper Flex Cable;

3/0 AWG (450/24) Diesel

Locomotive, 3/0 AWG FLEX K,M

Class K & Class M

1-7/16 in.

5/16 in.

Yes, for applications up to 35kv.

Consult cable manufacturer for

voltage stress relief instructions

with applications greater than

2000 volts.

90 C

Yes

PURPLE

.35±.04

.34±.02 DIA

PANDUIT

Wire inspection

window

450/24

3/0 FLEX K,M

LCAF3/0-56F

1.06±.04

Wire Strip Length

Stud Size

UL Listed Wire

Connector

.79±.04

UL Temperature

Rating

C.S.A Certified

Wire Connector

Panduit Color Code

on Barrel

.14±.01

90°±5°

2.09

REF

1.35±.04

Panduit Die Index No. P54

on Barrel

Alternate Industry

Die Index No. ( )

on Barrel

(15)

PANDUIT

PURPLE DIE P54 (15)

.57±.01

CERTIFIED

LISTED

Wire Connector

.81±.05

1.82 REF

Beveled wire

entry

Color coded

barrel markings

CORP.

REV

TINLEY PARK, ILLINOIS

9/02

DATE

SAB DRL

CHK

RELEASED

DESCRIPTION

10323

ECN

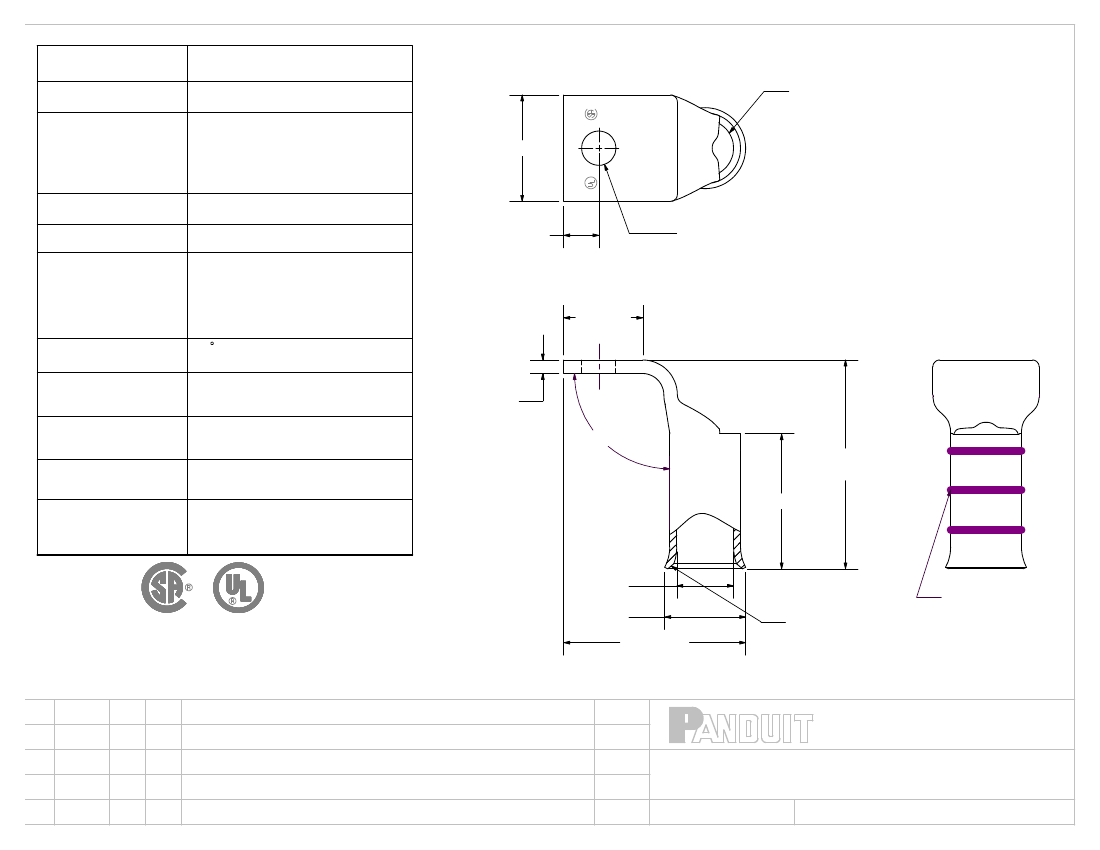

LCAF3/0-56F-X

Copper Lug - One-Hole, Flared Barrel, 90° Angle Tongue

SCALE

N/A

DRAWING NO / CAD FILE

LCAF3_0-56F-CUST
