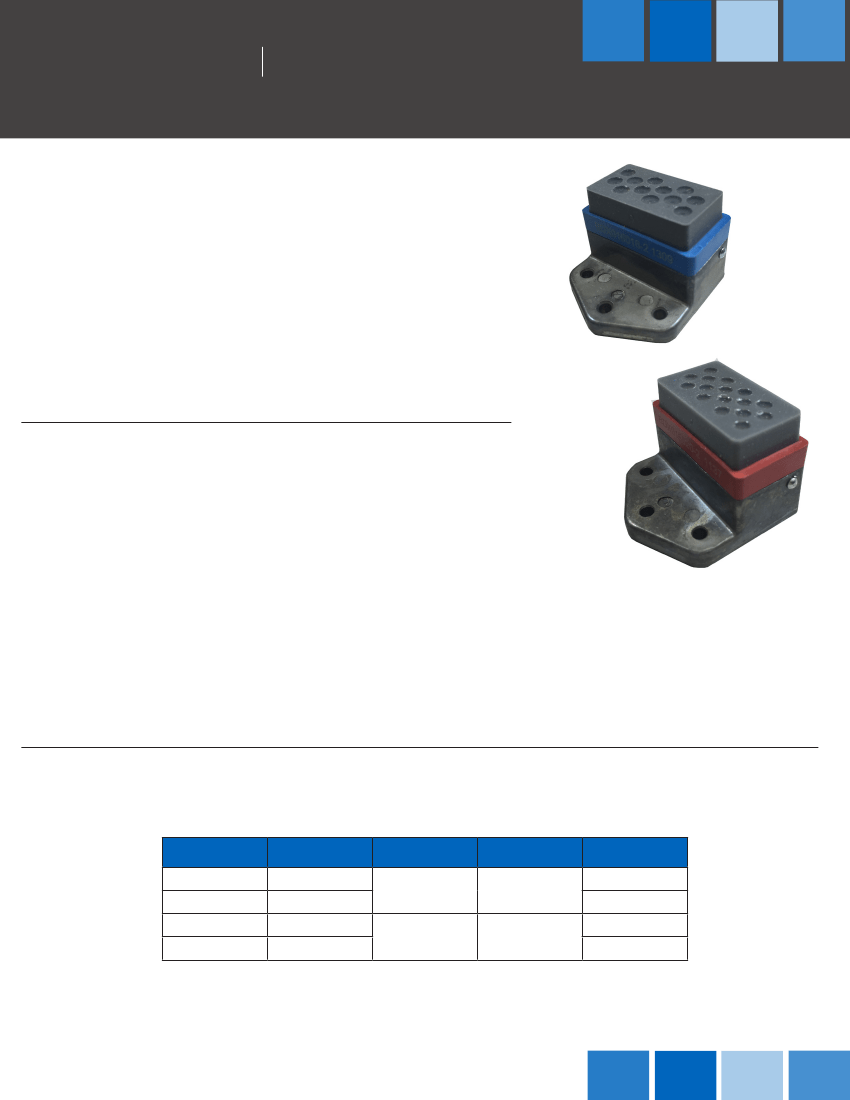

Combining advanced materials with an elegant design, Amphenol Pcd’s
Ground Blocks provide the lightest weight, highest density grounding solution
available in the market today. Wired connections are environmentally-sealed,
providing protection from moisture, spray, and debris. Unused connections
are protected via Amphenol Pcd’s patented FODSeal Technology, which
replaces the sealing plugs - reducing FOD, weight and part count. Amphenol
Pcd’s Ground Blocks are ideal for use in harsh environments typically found
in aircraft, ground vehicle and naval applications.
Features & Benefits
Overmold Technology
Simplifies construction and improves sealing and reliability
Plastic retention clip - made with VICTREX® PEEK Polymer
Simplifies construction; uses 1 plastic piece vs 6 individual metal pieces
FODSeal Technology (Patented)
Reduces FOD, part count and weight by eliminating sealing plugs
Smart Engineering
Weight Savings - up to 0.06 oz per block vs standard designs, yeilding up to 2lbs per plane on typical aircraft
Part Numbers
Part Number
BDX016016-2
BDX016017-2
BDX016020-2
BDX016021-2
With/Without Con-
tacts
Without
Number of Contacts
Contact Size
Boeing P/N
BACC50AN16H
12
With
Without
16
With
16
BACC50AN16
BACC50AN20H
20
BACC50AN20
9.16
Materials
Web Membrane
Silicone per A-A-59588, class 2B, 40 durometer. color clear
Grommet
Silicone per A-A-59588, class 2B, 40 durometer. color grey
Housing
Glass reinforced polyamide; color red (size 20), blue (size 16)
Internal Contacts
BeCu C17410, gold per MIL-DTL-45204, Type II, grade C, class I, over nickel per SAE-AMS-QQ-N-290, class I
Base
Aluminum A380.0. chromate conversion per MIL-DTL-81706, type I, class IA, method C

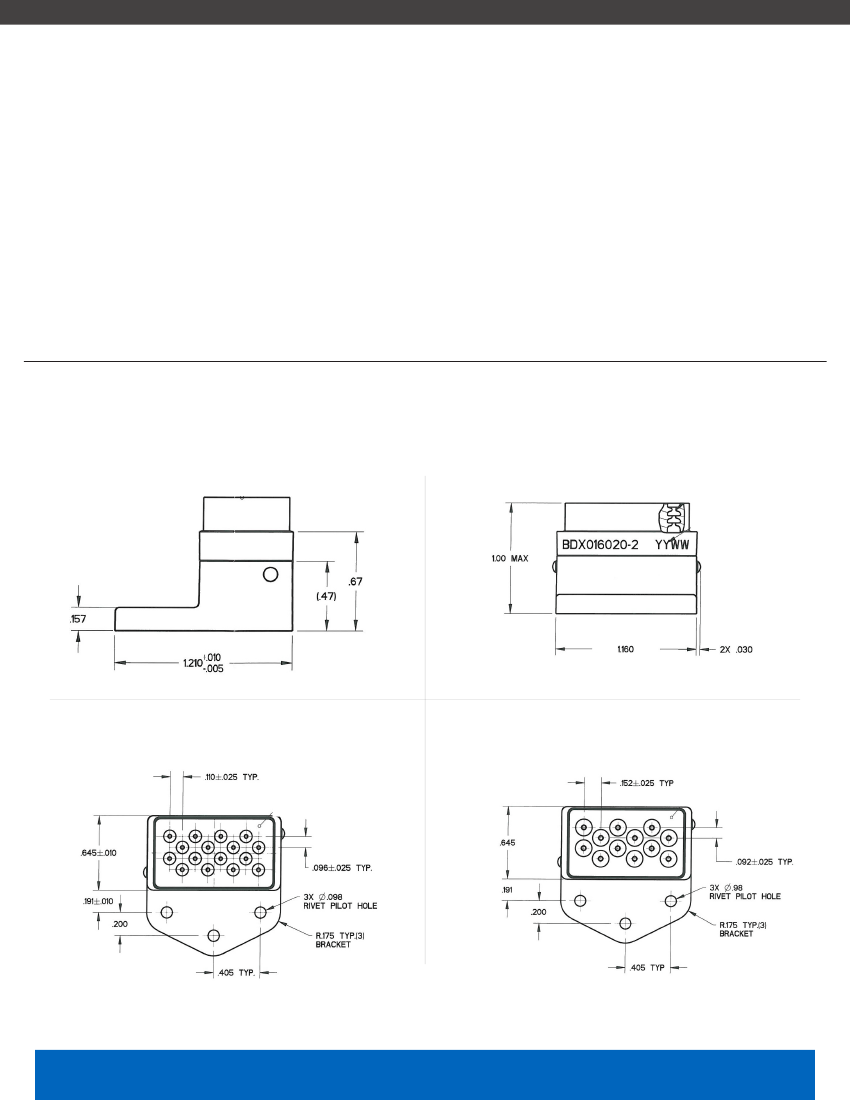

Ground Block Dimensions
SIDE VIEW
FRONT VIEW
TOP VIEW SIZE 20
TOP VIEW SIZE 16
