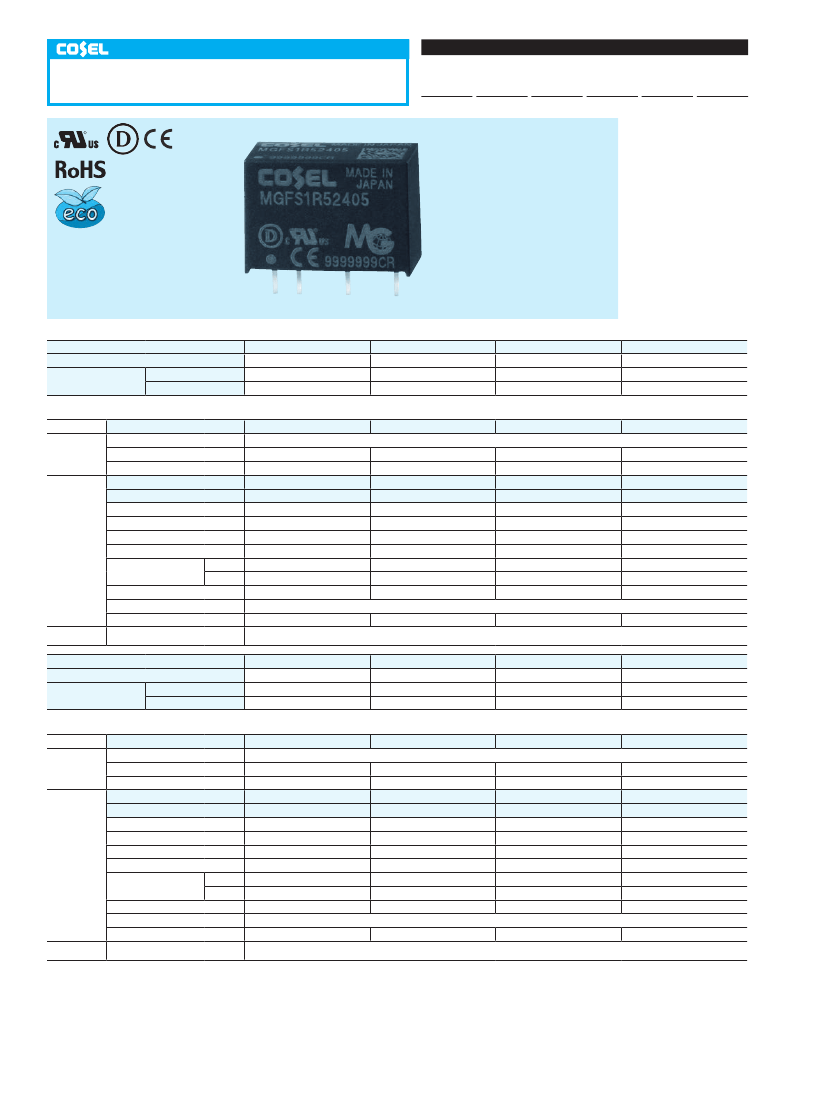

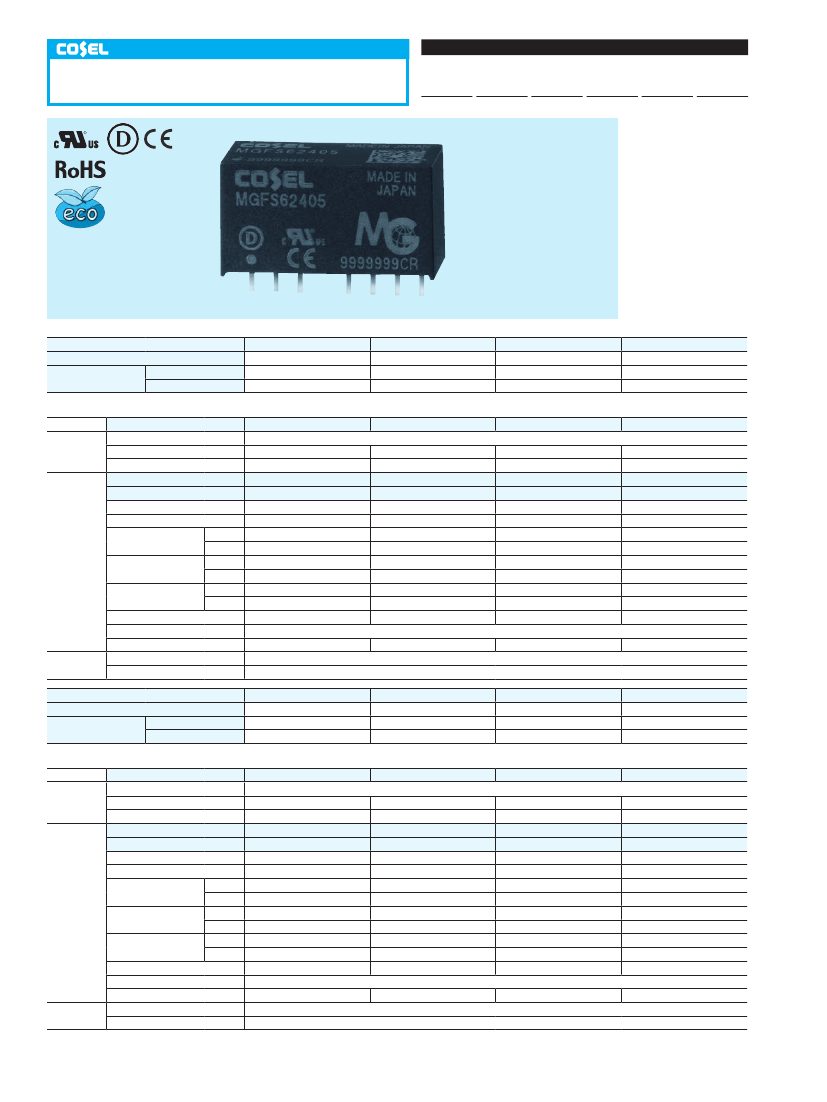

DC-DC Converters PCB Mount Type
Ordering information
MGFS1R5
MGF
1
2
S
1R5
3
4
24
5
05
6
-O
R
1
Series name
2
Single output
3
Output wattage
4
Input voltage
5
Output voltage
6
Optional
Y2 : Output voltage
adjustable (+10%, -5%)
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]
MGFS1R5243R3
1.32
3.3
0.4
MGFS1R52405
1.50
5
0.3
MGFS1R52412
1.56
12
0.13
MGFS1R52415
1.50
15
0.1
SPECIFICATIONS
INPUT
MODEL
VOLTAGE[V]
*1
CURRENT[A]
*1
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
RIPPLE[mVp-p]
*2
RIPPLE NOISE[mVp-p]
*2
-20 to +85C
TEMPERATURE
REGULATION[mV]
-40 to +85C
*3
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE SETTING[V]
MGFS1R5243R3
MGFS1R52405
DC9 - 36(Surge voltage 50V,100ms max)
0.072typ
0.079typ
77typ
80typ
3.3
5
0.4
0.3
20max
20max
20max
20max
120max
120max
200max
200max
50max
50max
80max
80max
20max
20max
30max (Minimum input, Io=100%)
3.21 - 3.42
4.90 - 5.21
Works over 105% of rating and recovers automatically
MGFS1R5483R3
1.32
3.3
0.4
MGFS1R54805
1.50
5
0.3
MGFS1R54812
1.56
12
0.13
MGFS1R54815
1.50
15
0.1
MGFS1R52412
0.079typ
83typ
12
0.13
48max
48max
150max
200max
150max
240max
48max
11.64 - 12.36
MGFS1R52415
0.077typ
82typ
15
0.1
60max
60max
150max
200max
180max
290max
60max
14.55 - 15.45
OUTPUT
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]
SPECIFICATIONS
INPUT
MODEL
VOLTAGE[V]
*1
CURRENT[A]
*1
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
RIPPLE[mVp-p]
*2
RIPPLE NOISE[mVp-p]
*2
-20 to +85C
TEMPERATURE
REGULATION[mV]
-40 to +85C
*3
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE SETTING[V]
MGFS1R5483R3
MGFS1R54805
DC18 - 76(Surge voltage 100V,100ms max)
0.037typ
0.040typ
76typ
79typ
3.3
5
0.4
0.3
20max
20max
20max
20max
120max
120max
200max
200max
50max
50max
80max
80max
20max
20max
30max (Minimum input, Io=100%)
3.21 - 3.42
4.90 - 5.21
Works over 105% of rating and recovers automatically
MGFS1R54812
0.040typ
82typ
12
0.13
48max
48max
150max
200max
150max
240max
48max
11.64 - 12.36
MGFS1R54815
0.039typ
81typ
15
0.1
60max
60max
150max
200max
180max
290max
60max
14.55 - 15.45
OUTPUT
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT
MG-26
MGFS1R5
GENERAL SPECIFICATIONS
ISOLATION
INPUT-OUTPUT
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
SAFETY
OTHERS
*1
*2
*3
*
*
DC1,500V or AC1,000V 1minute, Cutoff current=10mA, DC500V 1,000MW min (20±15C)
-40 to +100C, 20 to 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz 98.0m/s
2
(10G), 3minute period, 60minutes each along X, Y and Z axis
490.3m/s
2
(50G) 11ms, once each along X, Y and Z axis
UL60950-1, C-UL, EN60950-1
17.0X12.0X8.5mm [0.67X0.48X0.34 inches] (WXHXD) / 4g max
Convection/Forced air
OPERATING TEMP.,HUMID.AND ALTITUDE
-40 to +85C, 20 to 95%RH (Non condensing) (Required derating), 5,000m (16,400feet) max
ENVIRONMENT
AGENCY APPROVALS
CASE SIZE/WEIGHT
COOLING METHOD
Rated input 24V or 48V DC Io=100%
Ripple and ripple noise is measured by using test board with ceramic capacitor 1 F at 50mm from output pins.
Drift is the DC output accuracy for eight hours period after a half-hour warm-up at 25C.
Parallel operation with other model is not possible.
MGFW1R5xx12/MGFW1R5xx15 is available as single output, +24V/+30V
External view
¶
Recommended Pad and Hole dia.
Model
（TOP
VIEW）
<Standard>
Model
4-f0.9
2.54
[0.1]
12.7
[0.5]
5.08
[0.2]
2.2
[0.09]
3.5
[0.14]
0.5
[0.02]
12
[0.48]
2.8
[0.11]
<Option : Y2>
5-f0.9
－
Vin
＋
Vin
＋
Vout
－
Vout
17
[0.67]
0.5
[0.02]
<Pin Configuration (Option : Y2)>
¶
Unit : 0.1inch
¶
Dimension : mm
12
[0.48]
¶
Tolerance
±0.5
[±0.02]
¶
Dimensions in mm, [ ]= inches
¶
Pin terminal material : Copper
¶
Planting treatment of terminal : Lead free plating
¶
Case material : PBT
¶
Weight 4g max
2.54
[0.1]
12.7
[0.5]
2.2
[0.09]
－
Vin
＋
Vin
＋
Vout TRM
－
Vout
17
[0.67]
0.5
[0.02]
0.25
[0.01]
8.5
[0.34]
3.5
[0.14]
0.5
[0.02]
0.25
[0.01]
8.5
[0.34]
MG-27
DC-DC Converters PCB Mount Type
Ordering information
MGFS3
MGF
1
2
S
3
3
4
24
5
05
6
-O
R
1
Series name
2
Single output
3
Output wattage
4
Input voltage
5
Output voltage
6
Optional
Y2 : Output voltage
adjustable (+10%, -5%)
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]
MGFS3243R3
2.64
3.3
0.8
MGFS32405
3.00
5
0.6
MGFS32412
3.00
12
0.25
MGFS32415
3.00
15
0.2
SPECIFICATIONS
INPUT
MODEL
VOLTAGE[V]
*1
CURRENT[A]
*1
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
RIPPLE[mVp-p]
*2
RIPPLE NOISE[mVp-p]
*2
-20 to +75C
TEMPERATURE
REGULATION[mV]
-40 to +75C
*3
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE SETTING[V]
MGFS3243R3
MGFS32405
MGFS32412
MGFS32415
DC9 - 36 (Surge voltage 50V,100ms max) (Refer to the instruction manual for input voltage derating.)
0.15typ
0.16typ
0.15typ
0.15typ
78typ
81typ
85typ
84typ
3.3
5
12
15
0.8
0.6
0.25
0.2
20max
20max
48max
60max
20max
20max
48max
60max
120max
120max
150max
150max
200max
200max
200max
200max
50max
50max
150max
180max
80max
80max
240max
290max
20max
20max
48max
60max
30max (Minimum input, Io=100%)
3.21 - 3.42
4.90 - 5.21
11.64 - 12.36
14.55 - 15.45
Works over 105% of rating and recovers automatically
MGFS3483R3
2.64
3.3
0.8
MGFS34805
3.00
5
0.6
MGFS34812
3.00
12
0.25
MGFS34815
3.00
15
0.2
OUTPUT
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]
SPECIFICATIONS
INPUT
MODEL
VOLTAGE[V]
*1
CURRENT[A]
*1
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
RIPPLE[mVp-p]
*2
RIPPLE NOISE[mVp-p]
*2
-20 to +75C
TEMPERATURE
REGULATION[mV]
-40 to +75C
*3
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE SETTING[V]
MGFS3483R3
MGFS34805
MGFS34812
MGFS34815
DC18 - 76 (Surge voltage 100V,100ms max) (Refer to the instruction manual for input voltage derating.)
0.072typ
0.079typ
0.076typ
0.076typ
77typ
80typ
83typ
83typ
3.3
5
12
15
0.8
0.6
0.25
0.2
20max
20max
48max
60max
20max
20max
48max
60max
120max
120max
150max
150max
200max
200max
200max
200max
50max
50max
150max
180max
80max
80max
240max
290max
20max
20max
48max
60max
30max (Minimum input, Io=100%)
3.21 - 3.42
4.90 - 5.21
11.64 - 12.36
14.55 - 15.45
Works over 105% of rating and recovers automatically
OUTPUT
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT
MG-28
MGFS3
GENERAL SPECIFICATIONS
ISOLATION
INPUT-OUTPUT
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
SAFETY
OTHERS
*1
*2
*3
*
*
DC1,500V or AC1,000V 1minute, Cutoff current=10mA, DC500V 1,000MW min (20±15C)
-40 to +100C, 20 to 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz 98.0m/s
2
(10G), 3minute period, 60minutes each along X, Y and Z axis
490.3m/s
2
(50G) 11ms, once each along X, Y and Z axis
UL60950-1, C-UL, EN60950-1
17.0X12.0X8.5mm [0.67X0.48X0.34 inches] (WXHXD) / 4g max
Convection/Forced air
OPERATING TEMP.,HUMID.AND ALTITUDE
-40 to +85C, 20 to 95%RH (Non condensing) (Required derating), 5,000m (16,400feet) max
ENVIRONMENT
AGENCY APPROVALS
CASE SIZE/WEIGHT
COOLING METHOD
Rated input 24V or 48V DC Io=100%
Ripple and ripple noise is measured by using test board with ceramic capacitor 1 F at 50mm from output pins.
Drift is the DC output accuracy for eight hours period after a half-hour warm-up at 25C.
Parallel operation with other model is not possible.
MGFW3xx12/MGFW3xx15 is available as single output, +24V/+30V
External view
¶
Recommended Pad and Hole dia.
Model
（TOP
VIEW）
<Standard>
Model
4-f0.9
2.54
[0.1]
12.7
[0.5]
5.08
[0.2]
2.2
[0.09]
3.5
[0.14]
0.5
[0.02]
12
[0.48]
2.8
[0.11]
<Option : Y2>
5-f0.9
－
Vin
＋
Vin
＋
Vout
－
Vout
17
[0.67]
0.5
[0.02]
<Pin Configuration (Option : Y2)>
¶
Unit : 0.1inch
¶
Dimension : mm
12
[0.48]
¶
Tolerance
±0.5
[±0.02]
¶
Dimensions in mm, [ ]= inches
¶
Pin terminal material : Copper
¶
Planting treatment of terminal : Lead free plating
¶
Case material : PBT
¶
Weight 4g max
2.54
[0.1]
12.7
[0.5]
2.2
[0.09]
－
Vin
＋
Vin
＋
Vout TRM
－
Vout
17
[0.67]
0.5
[0.02]
0.25
[0.01]
8.5
[0.34]
3.5
[0.14]
0.5
[0.02]
0.25
[0.01]
8.5
[0.34]
MG-29
DC-DC Converters PCB Mount Type
Ordering information
MGFS6
MGF
1
2
S
3
6
4
24
5
05
6
-O
R
1
Series name
2
Single output
3
Output wattage
4
Input voltage
5
Output voltage
6
Optional
Y2 : Output voltage
adjustable (+10%, -5%)
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]
MGFS6243R3
5.28
3.3
1.6
MGFS62405
6.0
5
1.2
MGFS62412
6.0
12
0.5
MGFS62415
6.0
15
0.4
SPECIFICATIONS
MODEL
VOLTAGE[V]
*1
INPUT
CURRENT[A]
*1
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
Io=30% -
RIPPLE[mVp-p]
*2
Io=0 - 30%
Io=30% -
OUTPUT
RIPPLE NOISE[mVp-p]
*2
Io=0 - 30%
-20 to +65C
TEMPERATURE
REGULATION[mV]
-40 to +65C
*3
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE SETTING[V]
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT AND
REMOTE ON/OFF
OTHERS
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]
MGFS6243R3
MGFS62405
DC9 - 36 (Surge voltage 50V,100ms max)
0.28typ
0.30typ
80typ
84typ
3.3
5
1.6
1.2
20max
20max
20max
20max
75max
75max
225max
225max
120max
120max
300max
300max
50max
50max
80max
80max
20max
20max
30max (Minimum input, Io=100%)
3.21 - 3.42
4.90 - 5.21
Works over 105% of rating and recovers automatically
Provided (Negative logic L : ON, H : OFF)
MGFS6483R3
5.28
3.3
1.6
MGFS64805
6.0
5
1.2
MGFS62412
0.29typ
88typ
12
0.5
48max
48max
100max
300max
150max
400max
150max
240max
48max
11.64 - 12.36
MGFS62415
0.29typ
88typ
15
0.4
60max
60max
100max
300max
150max
400max
180max
290max
60max
14.55 - 15.45
MGFS64812
6.0
12
0.5
MGFS64815
6.0
15
0.4
SPECIFICATIONS
MODEL
VOLTAGE[V]
*1
INPUT
CURRENT[A]
*1
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
Io=30% -
RIPPLE[mVp-p]
*2
Io=0 - 30%
Io=30% -
OUTPUT
RIPPLE NOISE[mVp-p]
*2
Io=0 - 30%
-20 to +65C
TEMPERATURE
REGULATION[mV]
-40 to +65C
*3
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE SETTING[V]
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT AND
REMOTE ON/OFF
OTHERS
MGFS6483R3
MGFS64805
DC18 - 76 (Surge voltage 100V, 100ms max)
0.14typ
0.15typ
80typ
84typ
3.3
5
1.6
1.2
20max
20max
20max
20max
75max
75max
225max
225max
120max
120max
300max
300max
50max
50max
80max
80max
20max
20max
30max (Minimum input, Io=100%)
3.21 - 3.42
4.90 - 5.21
Works over 105% of rating and recovers automatically
Provided (Negative logic L : ON, H : OFF)
MGFS64812
0.15typ
88typ
12
0.5
48max
48max
100max
300max
150max
400max
150max
240max
48max
11.64 - 12.36
MGFS64815
0.15typ
88typ
15
0.4
60max
60max
100max
300max
150max
400max
180max
290max
60max
14.55 - 15.45
MG-30
京公网安备 11010802033920号
EEWORLD
