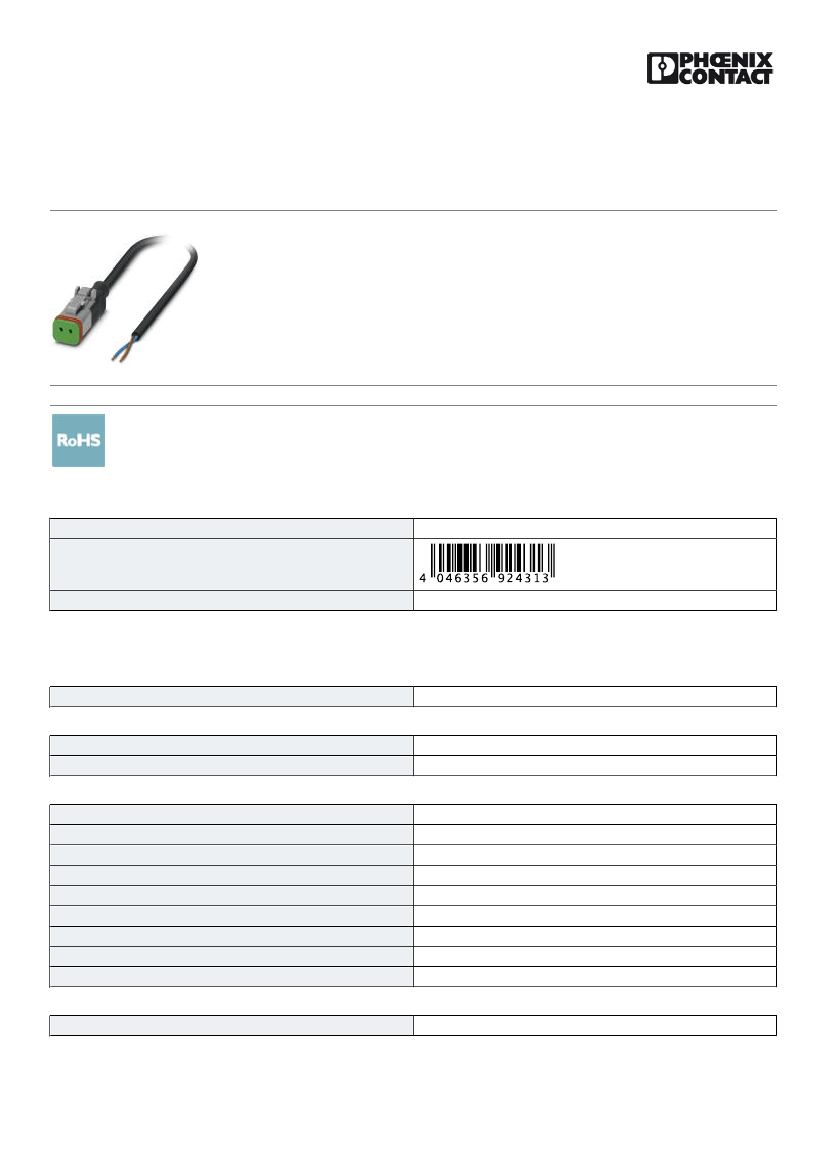

Sensor/actuator cable - SAC-2P- 1,5-PUR/DTFS-1L-S - 1410732
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 2-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight
DEUTSCH DT06-2S Clip locking, with 1 LED, connected with Damping diode, cable length: 1.5 m
Key Commercial Data
Packing unit
GTIN
GTIN
4046356924313
1 pc
Technical data
Dimensions
Length of cable
1.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
Coding
Status display
Protective circuit/component
3A
24 V AC
24 V DC
2
black
≥ 100 MΩ
A - standard
1 LED
Damping diode
Material
Flammability rating according to UL 94
V2
12/01/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1410732
Sensor/actuator cable - SAC-2P- 1,5-PUR/DTFS-1L-S - 1410732
Technical data
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Cu alloy
Nickel-plated
PA 6.6
PA
not available
Silicon
Standards and Regulations
Flammability rating according to UL 94
V2
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
PUR halogen-free black
PUR
Li9Y11Y
20549 / 10493 (80°C/300 V)
2x 0.75 mm² (Signal line)
18
42x 0.15 mm
1.69 mm ±0.05 mm (Signal line)
≥ 0.21 mm
brown, blue
2 wires, twisted
black-gray RAL 7021
≥ 0.38 mm
4.8 mm ±0.15 mm
5xD
10 x D
4000000
48 mm
10 m
3 m/s
10 m/s²
33 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 26 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
flexible
Flexible cable conduit capable
12/01/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1410732
Sensor/actuator cable - SAC-2P- 1,5-PUR/DTFS-1L-S - 1410732
Technical data
Cable
Flame resistance
according to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
according to DIN EN 60332-2-2
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Low adhesion
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

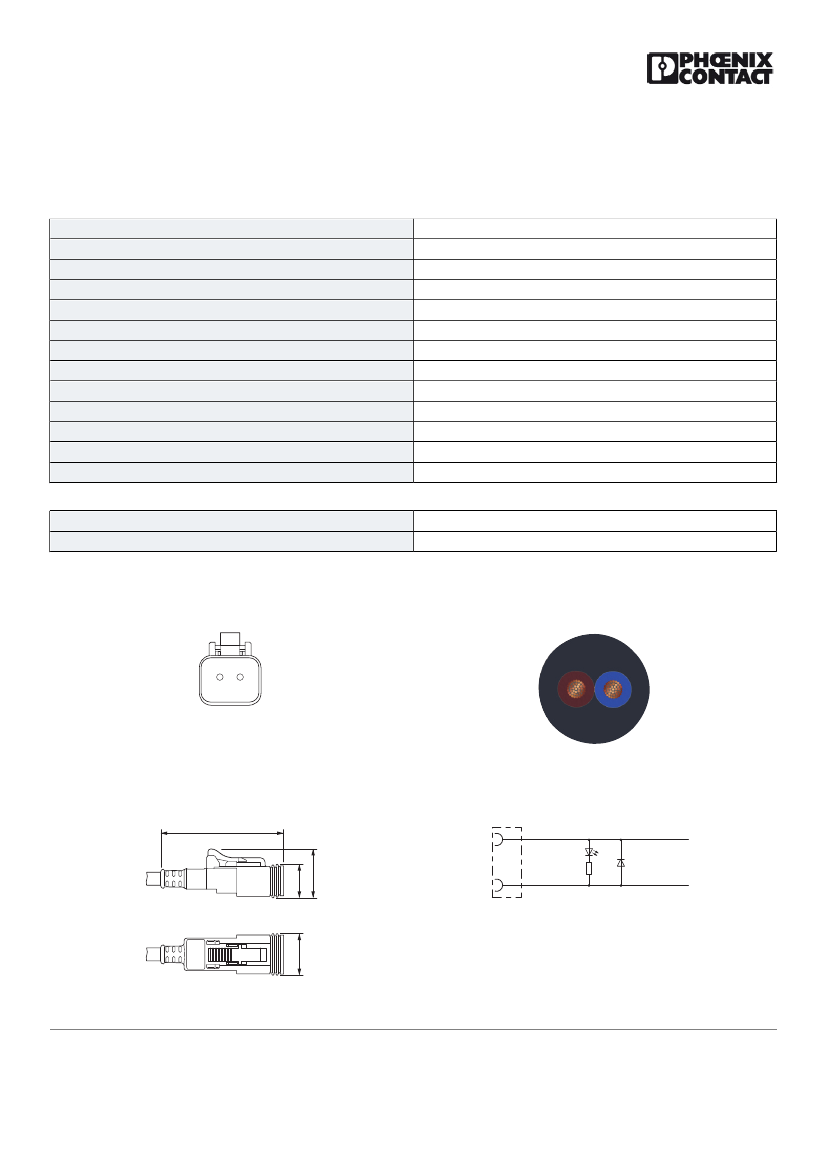

Drawings
Schematic diagram
Cable cross section
DEUTSCH DT06-2S pin assignment
PUR halogen-free black [PUR]
Dimensional drawing
50
1
Circuit diagram
BN
13
18,8
2
BU
Contact assignment of the DEUTSCH DT06-2S
16
DEUTSCH DT06-2S, top view and side view
12/01/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1410732
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
12/01/2018 Page 4 / 4
