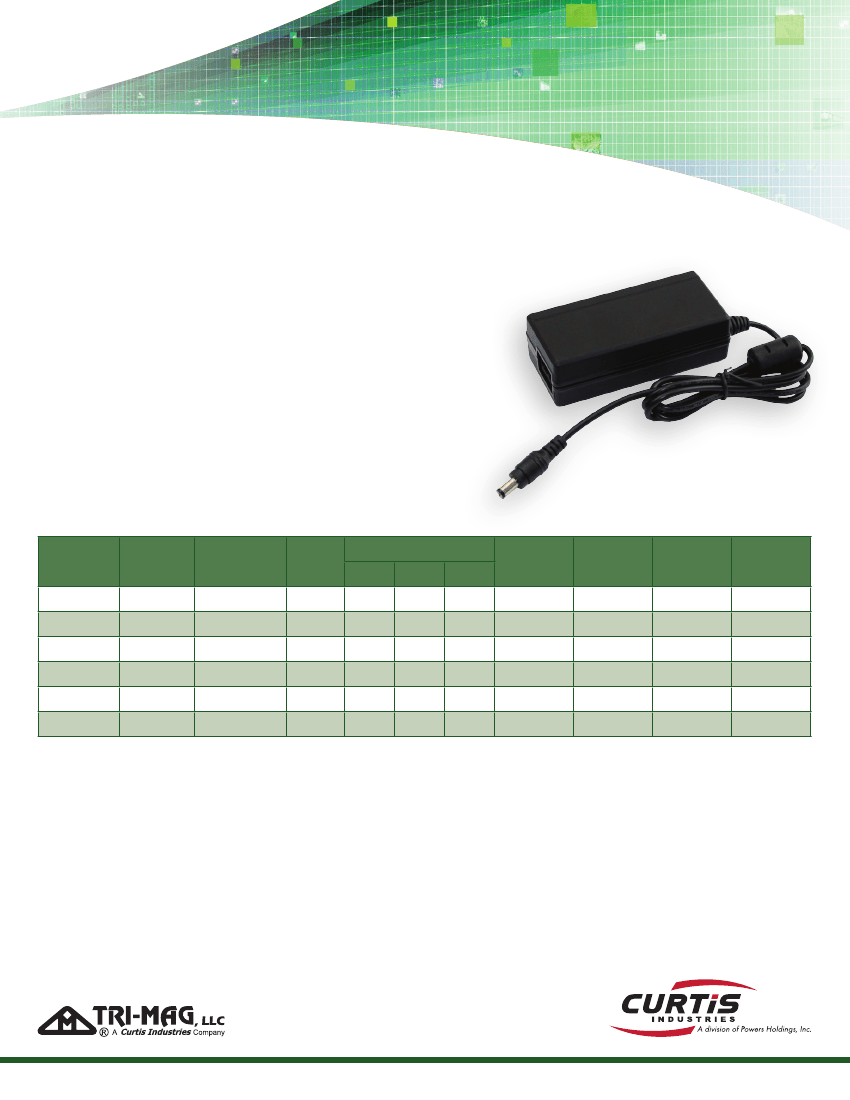

L6R48D Series
48W Desktop Power Supply
•
•
•
•
•
•
DOE Level VI Efficiency Rating
Universal Input: 90 ~ 264Vac, 47/63 Hz
UL/cUL Safety Approved
Corded Output Connection
IEC 60320 C6, C8 or C14 AC input connectors
Light Weight and Compact
Model No.
1
L6R48D-090
L6R48D-120
L6R48D-180
L6R48D-240
L6R48D-300
L6R48D-360
Application
ITE
ITE
ITE
ITE
ITE
ITE
Output
Connector
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Output
Voltage
+9.0V
+12.0V
+18.0V
+24.0V
+30.0V
+36.0V
Output Current
Min
0
0
0
0
0
0
Rated
5.0
4.0
2.67
2.0
1.6
1.33
Peak
—
—
—
—
—
—
Voltage
Accuracy
±5%
±5%
±5%
±5%
±5%
±5%
Ripple
Noise
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
Line
Reg.
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
Load
Reg.
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
1. Add “C6”, “C8”, or “C14” for the required AC input connector configuration.
•
•
•
•
•
•
Output voltages from 5.0Vdc to 48.0Vdc are available in increments of 0.1V. Please contact Tri-Mag, LLC for the part number and specifications for your output voltage
requirement and application.
The output voltage is verified to specs at 60 percent rated load condition.
The
line regulation
is defined by changing ± 10 percent of input voltage from the nominal line at rated load.
The
load regulation
is defined by changing ± 40 percent of the measured output load from 60 percent of the rated load.
The
ripple and noise
is measured by using 20MHz bandwidth limited oscilloscope with each output terminated with a 10 µF electrolytic and a 0.1 µF capacitor at rated load
and nominal line.
The
efficiency
is measured at rated load and nominal line.
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
GREEN POW ER
Power
Supplies
Power
Supplies
L6R48D Series
Innovative, reliable, and inexpensive. This
economical DOE Level VI compliant power supply/
charger is available in a variety of voltage levels,
5.0Vdc to 48.0Vdc (in increments of 0.1V) to match
your needs. Rated up to 48W when powering either
stationary or charging portable devices.
Specifications
Input
Input Voltage
Input Frequency
No Load Input Power
Input Current
Inrush Current
Leakage Current
Input Connection
•
•
•
•
•
•
•
90 Vac ~ 264 Vac
47 Hz to 63 Hz
< 0.1W
1.2A Max.
40A Max.
0.25mA Max.
US (others available)
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
• 0°C to 40°C
• 5% - 95% RH, Non-Condensing
• -20°C to +80°C
EMC & Safety
Safety Approvals
EMC Approvals
• UL: UL60950-1
• cUL: UL60950-1
• FCC
Output
Output Voltage Range
Output Current Range
Minimum Load
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
5.0 to 36.0 Vdc
L6R48D: 1.3 - 5.0A, 48W Max.
No min. load required.
± 1% at rated load across input
voltage range
± 5%
240mVp-p Max.
Auto recovery
Auto recovery
Auto recovery
Warranty
Warranty Period
• 1 year
Dimensions and Notes
Dimensions in mm
Tolerance
Size
Weight
Connectors
•
•
•
•
•
± 0.2mm
120.0 x 51.0 x 34.0 mm
4.72 x 2.01 x 1.34 Inches
Approx. 280g (9.9oz.)
AC input; IEC 60320 C6, C8 or
C14 connector
• DC output, standard 5.5mm x 2.1mm
corded dc output jack or per
customer specification.
• 1000 ± 20mm (39.4 ± .8”)
General
Insulation Resistance
Efficiency
MTBF
•
•
•
50MΩ Min.
Level VI compliant
50,000 hrs to MIL-HDBK-217F at +25°C
Cord length
Mechanical Drawing
2017-04
