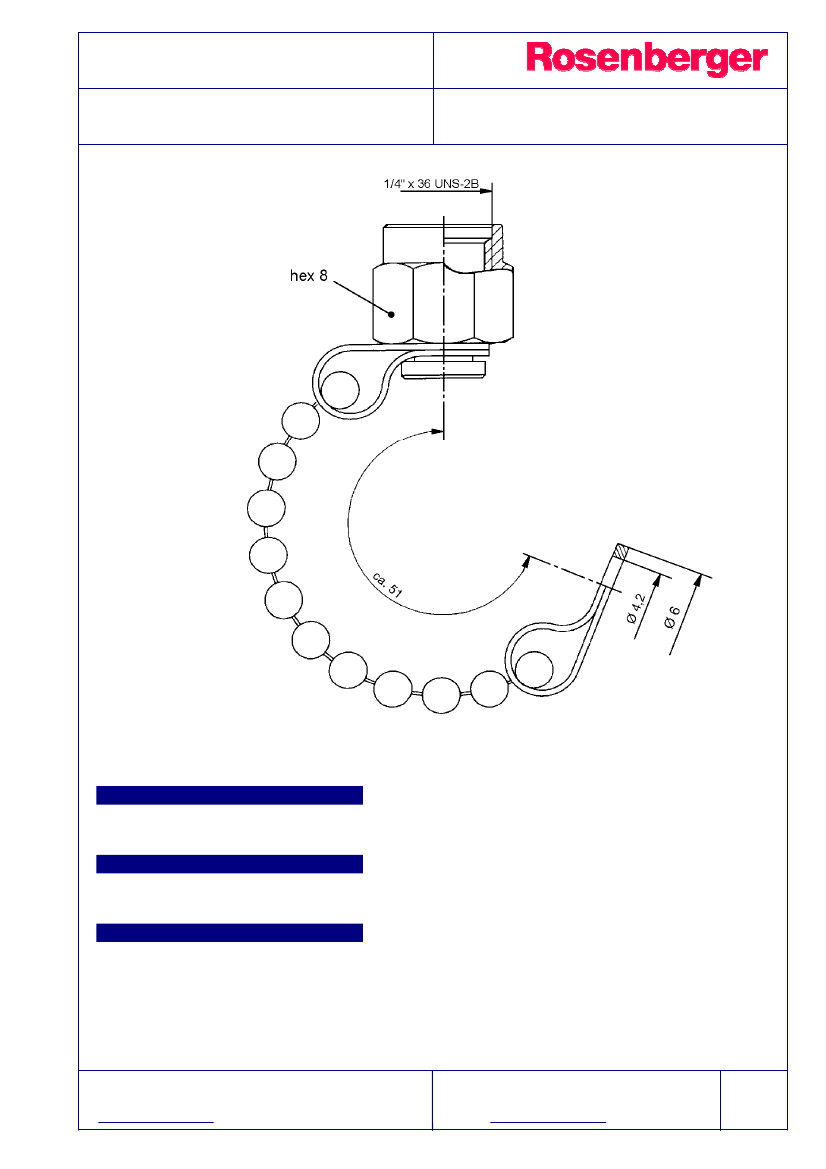

TECHNICAL DATA SHEET
SMA
PROTECTION CAP
PLUG
32Z112-000F
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
N/A
Material and plating
Connector parts
Cap
Rivet
Gasket
RF_35/12.04/3.0
Material
Brass
Stainless steel
PVC
Plating
Gold, 0.1 µm min.
Passivated
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMA
PROTECTION CAP
PLUG
N/A
32Z112-000F
Electrical data
Mechanical data
Mating cycles
Coupling nut retention
Coupling test torque
Recommended torque
min. 100
≥
180 N
max. 0.6 Nm
0.5 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
4.85 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
13/05/04
Approved
J_Krautenbacher
Date
21.07.16
Rev.
f00
Engineering change number
15-1629
Name
I_Wallner
Date
21.07.16
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
